Help CenterIP68 Nylon Spiral Cable Gland
US$ 0.25 - 0.86
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OEM or Neutral
Model Number:
PG / M
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CE RoHS m Cable Gland With Sealing RingUS$ 0.26 - 0.86MOQ: 100 Pieces -
VDE Confirmed Brass Metric Cable GlandsUS$ 0.3 - 45MOQ: 100 Pieces
-
The 1st Get UL Waterproof Pg11 Length Brass GlandUS$ 0.3 - 45MOQ: 100 Pieces
-
Waterproof IP68 Explosion Proof Cable GlandUS$ 0.029 - 0.9MOQ: 100 Pieces
-
IP68 Waterproof PG Cable Gland ce RohsUS$ 0.029 - 0.9MOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
OEM or Neutral
Model Number
PG / M
Protection Level
IP68
Size
PG7-PG21 / M12*1.5-M27*1.5
Material
Nylon
Specifications
Spiral Cable Gland1.PG/M;
2.CE;RoHS;SGS;IP68;UL94V-0;
3.Black,Light grey;
4.Free samples/OEM/Factory.

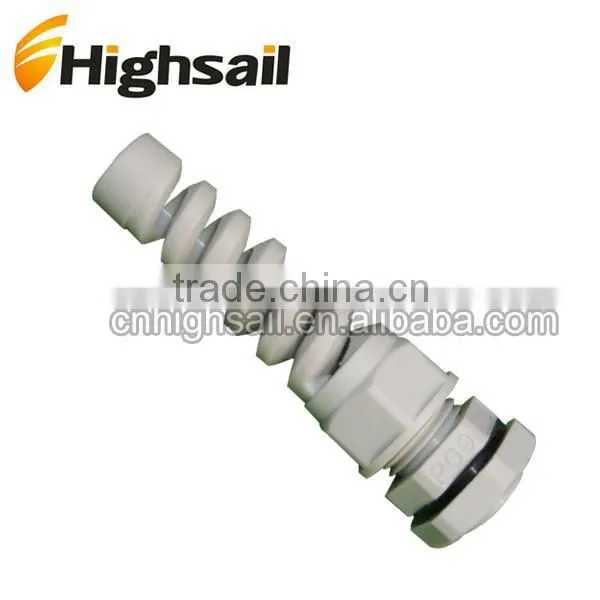

Spiral Cable Gland
Product Description
| 1.Material |
Lock Nut,Main Body and Spiral Body are made from Nylon PA66;
|
| 2.Thread Type | PG;M; |
| 3.Size Range | PG7-PG21;M12*1.5-M27*1.5; |
| 4.Thread Length Selection | Long thread type / Short thread type. |
| 5.Fire Rating | UL94V-2;UL94V-0(optional). |
| 6.Authentication | CE;RoHS;SGS. |
| 7.Waterproof Degree | IP68(Thread position with washer). |
| 8.Operating Temperature |
Static state from -40°C (-40°F) to 100°C(212 °F), Short-term to 120°C (248 °F). |
| 9.Color | Black and Light Grey(RAL7035) in normal,other colors can be customized. |
| 10.Connection Thread Norms | EN60423 / DIN40430 Nylon Cable Gland. |
| 11.Mould Feature | Prevent slide design provides superior antivibration protection,ensures a firm grip on the cable. |
| 12.Sample | Free sample for your testing. |
| 13.MOQ | Small order can be accepted. |
| 14.Quality Control | All goods will be 100% inspected before dispatching. |
| 15.Delivery Time | Enough stock and strong production capacity ensure timely delivery. |
| 16.R&D Ability | OEM available,open new molds according to your samples or drawings. |
Technical Parameters
1. PG and M Series Strain Relief Cable Gland Technical Parameters.Nylon Cable Gland make from nylon pa66
| Item | Cable Range | Thread O.D | Thread Length | Main Body | Inner Diameter | Highsail NO. | |
| (mm) | AG (mm) | GL(mm) | H(mm) | d(mm) | Black | Light Grey | |
| PG7 | 3-6.5 | 12.5 | 8 | 60 | 7.5 | NS0707B | NS0707G |
| PG9 | 4-8 | 15.2 | 8 | 70 | 9 | NS0908B | NS0908G |
| PG11 | 5-10 | 18.6 | 10 | 80 | 11 | NS1110B | NS1110G |
| PG13.5 | 6-12 | 20.4 | 10 | 90 | 13 | NS1312B | NS1312G |
| PG16 | 10-14 | 22.5 | 12 | 98 | 15.8 | NS1614B | NS1614G |
| PG21 | 13-18 | 28.3 | 12 | 108 | 19.8 | NS2118B | NS2118G |
| M12 × 1.5 | 3-6.5 | 12 | 8 | 60 | 7.5 | NS1207B | NS1207G |
| M16 × 1.5 | 4-8 | 16 | 8 | 70 | 9 | NS1608B | NS1608G |
| M18 × 1.5 | 5-10 | 18 | 10 | 80 | 11 | NS1810B | NS1810G |
| M20 × 1.5 | 6-12 | 20 | 10 | 90 | 13 | NS2012B | NS2012G |
| M22 × 1.5 | 10-14 | 22 | 12 | 98 | 15.8 | NS2214B | NS2214G |
| M25 × 1.5 | 13-18 | 25 | 12 | 108 | 19.8 | NS2518B | NS2518G |
| M27 × 1.5 | 13-18 | 27 | 12 | 108 | 20 | NS2718B | NS2718G |
Packaging & Shipping
| 1.Packaging |
(1)Interior Packaging:50/100pcs per polybag with neutral label or customized (2)External Carton:44*43*36cm;52*33*48cm;42*36*25cm;37*26.5*18.5cm or customized.1000pcs/1500pcs/2000pcs/3000pcs/carton |
| 2.Transportation |
(1)By sea,by air,or by express(TNT,Fedex,UPS,DHL,Aramex,EMS etc); (2)We will do best to get good freight cost for you. |
| 3.Payment Terms | T/T, Paypal,Western Union,L/C,Escow |
| 4.Delivery Time | 10 days within 100000pcs.According to your order quantity. |
| 5.Company Type | Factory and trade integration,years of export experience; |
