Specifications
FTTH Fiber Optical patch cords*SC/FC/LC/ST/E2000/DIN available
*APC/UPC,Simplex,Duplex
*RoHS,ISO9001

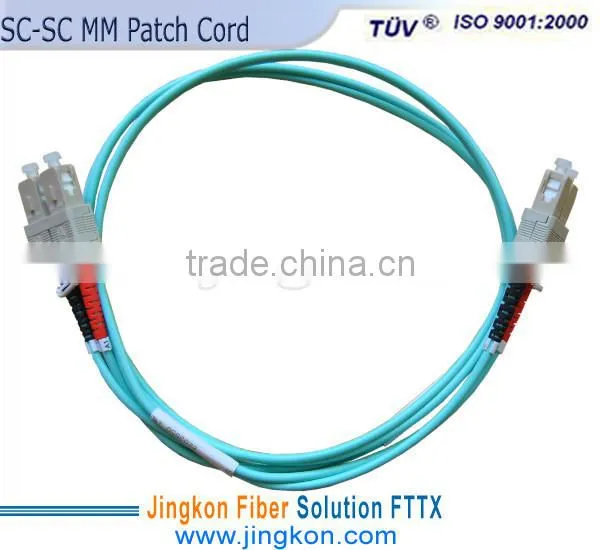

FTTH Fiber Optical patch cords
Description |

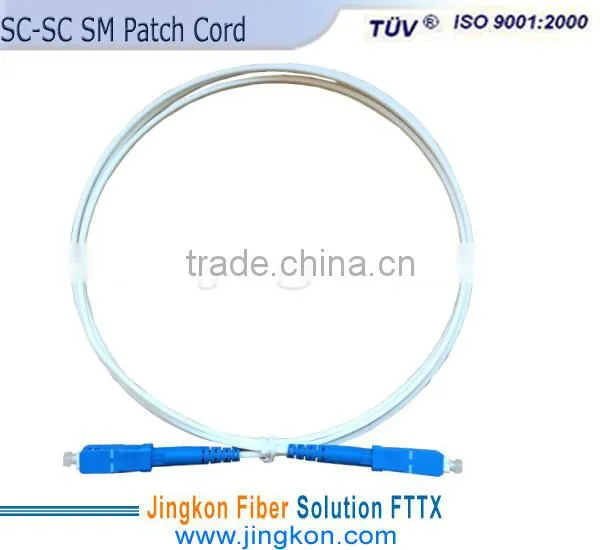

SC UPC Patch Cords |
||
Item NO. |
Test Item |
Unit |
Standard & Requirement |
1 |
Appearance |
/ |
No crack, No scar, good conformability |
2 |
Ferrule polished end |
/ |
No scar, No spot |
3 |
Insertion loss |
dB |
SM≤0.2, |
4 |
Return loss |
dB |
APC≥-60 PC≥-50 |
5 |
Curvature eccentricity |
um |
<50 |
6 |
Fiber core undercut |
um |
-<50 |
7 |
Fall apart test |
dB |
H=1M,connector free-falling 5 times Insertion loss change< 0.1,Return loss change< 5,No flab, No distortion |
8 |
Repetitiveness |
dB |
Insertion loss change< 0.1 Return loss change< 5 |
9 |
Insert & pull out |
/ |
Max: 2KG |
10 |
Tensile strength |
dB |
0- 10KG per minutes Insertion loss change< 0.1,Return loss change< 5,No flab, No distortion |
11 |
Addition |
dB |
2.5Kg,200times,10times/minutes,±80° Insertion loss change < 0.1,Return loss change< 5, No flab, No distortion |
12 |
Package |
/ |
Clean, |
Parameter:
Fiber Type : OS1 9/125 Corning fiber Operating Wavelength: 1310 nm
Connector Type Polishing : SC/UPC SC/APC LC/UPC LC/APC D4 MU DIN ST/UPC E2000/UPC E2000/APC SMA ESCON MTRJ
Fiber Cable Jacket Type: PVC /LSZH Simplex/ Duplex 3.0mm/ 2.0mm/0.9mm
Insertion loss ≤0.20dB,
Return loss UPC≥50 dB, APC≥60 dB
Radius of curvature nm 10 ≤ r ≥25
Curvature eccentricity um <50
Fiber core undercut nm <50
Insertion loss change< 0.1,Return loss change< 5, No flab, No distortion
Repetitiveness (dB): Insertion loss change< 0.1,Return loss change< 5
Insert & pull out : Max: 2KG
Tensile strength dB 0- 10KG per minutes
Fully tested cables to ensure superior quality and durability
Producing Line:
*80% of our workers with over 6 experience to make sure 100% strict quality control.
*Daily capacity 5,000 pieces of simplex patch cord.
Patch cord Package:
*100% patch cord test, 12 months quality gurantee.
*PVC Plastic Bag(18*25 mm) with a test report.
*White Carton(40*40*10.5 mm) then into ourter Carton(42*42*44 mm)
*For Ocean Shipment, we do pallet for better goods protection duirng transportation.
Certificated Approval:
*RoHS,TLC,ISO9001 compliant
*Meet IEC,Telcordia GR-326-Core standard
