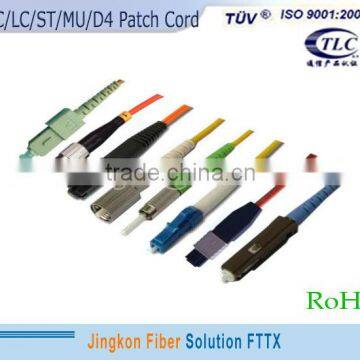

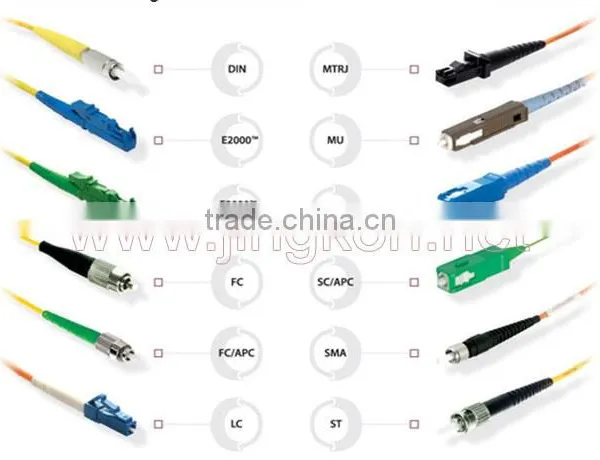

Optical Fiber Connector ST

Name: Optical Fiber Connector ST
Brand: Jingkon
SKU: 129675465
Availability: InStock

US$ 0.2 - 0.5 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Jingkon

Ningbo Jingkon Fiber Communication Apparatus Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo / Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Jingkon

Optical Fiber Connector ST Components

Housing:Metal

Exactitude size

Repeat kind

Boot diameter(mm) :0.9 2.0 2.4 3.0

Boot colour: Red Green Blue ,White ,Black ,Gray .

Ferrule:Zirconia

Outer diameter: 1.2490+(-)0.0005mm

Inner diameter: 0.125+0.001/-0mm

Concentricity: ≤1.0um

Good compatibility

Accurate mechanical dimensions,

Good reliability and stability,

RoHS Compliant

Optical Fiber Connector ST

FeaturesLow insert loss; Good repeatability; Good changeability; Good temperature stabilization.

Mechanism Features: insert and pull frequency > 1000; Changeability(db) ≤ 0.20Tensile strength < 0.1; Ascillating test < 0.1.

Condition Features: High temperature < 0.2; Low temperature < 0.2.

Use: Applied in optical fiber communications system, fiber optic data transmission, LAN, optical fiver sensors and optical CATV.

Description		FC/APC-SM Simplex SM 3.0mm
Item NO.	Test Item	Unit	Standard & Requirement
1	Appearance conformability	/	No crack, No scar, good
2	Operating Temperature		-25---+85
3	Storage temperature		-40---+110
4	Humidity	RH	95%RH (Non-Packaging)
5	Sleeve material	/	Zirconia
6	Housing Material Exactitude size	/	High Quality Plastic
7	Application	/	CATV System Telecommunications Optical Networks Testing / Measurement Instruments Fiber To the Home
8	Addition	/	Easy Installation In Compliance with Bell core 326 and TIA/EIA 604 Standard Accurate mechanical dimensions, Good reliability and stability, RoHS Compliant Exactitude size Repeat kind Boot diameter(mm) :0.9 2.0 2.4 3.0 Boot colour: Red Green Blue ,White ,Black ,Gray .
