Optical Fiber Connector ST Components
- Ningbo / Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Jingkon |
Product Description

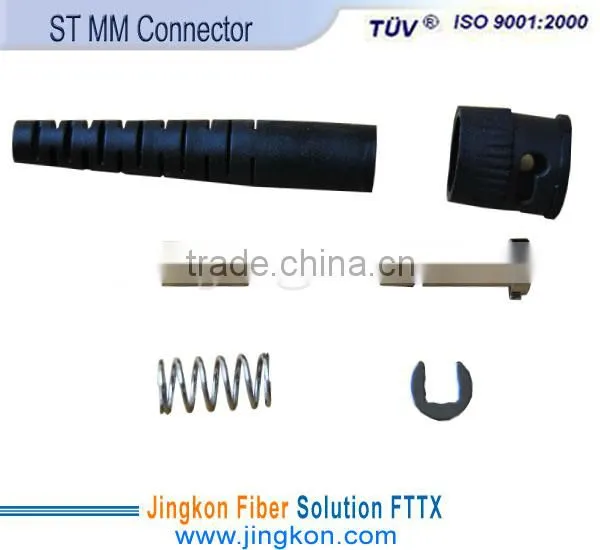

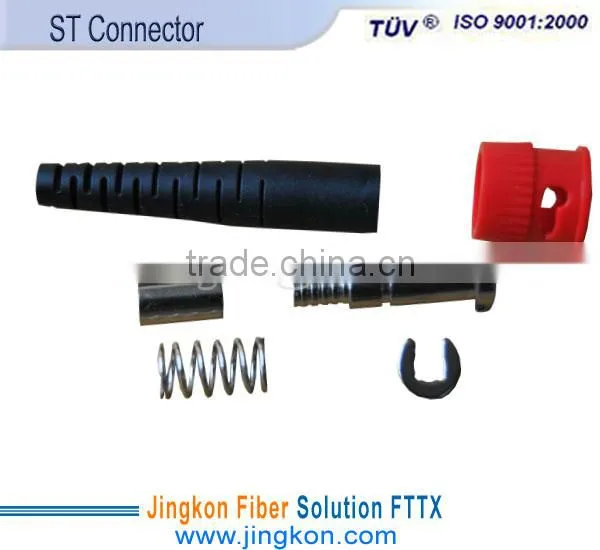

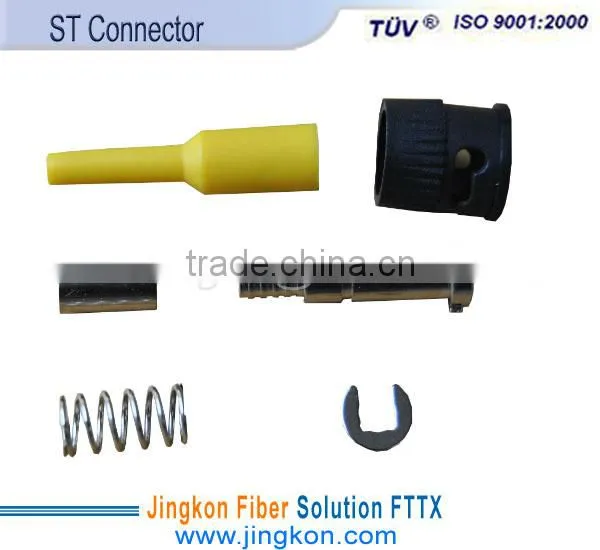

Optical Fiber Connector ST Components
Housing:Metal
Exactitude size
Repeat kind
Boot diameter(mm) :0.9 2.0 2.4 3.0
Boot colour: Red Green Blue ,White ,Black ,Gray .
Ferrule:Zirconia
Outer diameter: 1.2490+(-)0.0005mm
Inner diameter: 0.125+0.001/-0mm
Concentricity: ≤1.0um
Good compatibility
Accurate mechanical dimensions,
Good reliability and stability,
RoHS Compliant
Optical Fiber Connector ST
FeaturesLow insert loss; Good repeatability; Good changeability; Good temperature stabilization.
Mechanism Features: insert and pull frequency > 1000; Changeability(db) ≤ 0.20Tensile strength < 0.1; Ascillating test < 0.1.
Condition Features: High temperature < 0.2; Low temperature < 0.2.
Use: Applied in optical fiber communications system, fiber optic data transmission, LAN, optical fiver sensors and optical CATV.
Description | FC/APC-SM Simplex SM 3.0mm | ||
Item NO. | Test Item | Unit | Standard & Requirement |
1 | Appearance conformability | /
| No crack, No scar, good
|
2
| Operating Temperature |
|
-25---+85 |
3 | Storage temperature |
| -40---+110 |
4 | Humidity | RH | 95%RH (Non-Packaging) |
5 | Sleeve material | / | Zirconia |
6 | Housing Material Exactitude size | /
| High Quality Plastic
|
7
| Application
| /
| CATV System Telecommunications Optical Networks Testing / Measurement Instruments Fiber To the Home |
8
| Addition
| /
| Easy Installation In Compliance with Bell core 326 and TIA/EIA 604 Standard Accurate mechanical dimensions, Good reliability and stability, RoHS Compliant Exactitude size Repeat kind Boot diameter(mm) :0.9 2.0 2.4 3.0 Boot colour: Red Green Blue ,White ,Black ,Gray . |
