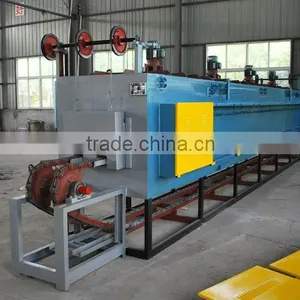

Chain plate type Continuous furnace mainly use for mass process heat-treatment of machine parts,puerching and carbonitriding.
Structure Instruction:The Chain plate type Continuous furnace formed by feeding machine,vibrator distribution machine,resistance furnace,quenching tank,washing maching, annealing furnace and automatic control system,etc. The specific component based on the demand of customer.
Features:
1.This kind of furnace is a automated production line,it reduce the time and the process of production.
2.The automatic control system achieve simplistic work and more efficiency.
| Type |
Dimension (mm) |
Power (KW) |
Max. output kg/hour |
Price (U.S.D) |
||
| Cementite |
Quenching 0.1-0.2 |
carbonitriding | ||||
| RCW-20 | 1300X150X50 | 20 | 30 | 15 | 10 | 12,475.00 |
| RCW-45 | 2400×220×50 | 45 | 60 | 30 | 20 | 20,205.00 |
| RCW-60 | 2400×300×50 | 60 | 100 | 40 | 30 | 23,720.00 |
| RCW-75 | 3600×300×50 | 75 | 150 | 60 | 45 | 25,475.00 |
| RCW-90 | 4700×300×80 | 90 | 200 | 90 | 60 | 29,000.00 |
| RCW-120 | 4700×400×80 | 120 | 250 | 120 | 90 | 33,205.00 |
| RCW-150 | 5000×500×80 | 150 | 300 | 150 | 120 | 35,000.00 |
Note: The above specifications are for reference only, furnace specific gall size is based on the demand for customized products.
