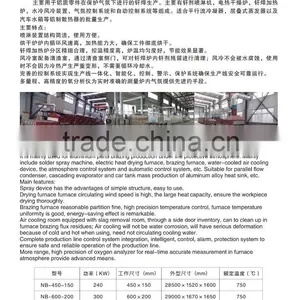

Help CenterMesh Belt Aluminum Brazing Furnace,Patent No:ZL200810121425.2
Related Products
-
Mesh Belt Aluminum Brazing Furnace,Patent No:ZL200810121425.2US$ 500,000 - 900,000MOQ: 1 Set -
Rollover-style Activated Carbon Drying OvenUS$ 1,000 - 10,000MOQ: 1 Set
-
Pit Tempering FurnaceUS$ 1,000 - 100,000MOQ: 1 Set
-
Laboratory FurnaceUS$ 1 - 10,000MOQ: 1 Set
-
Muffle Belt FurnaceUS$ 50,000 - 100,000MOQ: 1 Set
RST-150 Continuous Belt Type Brazing Furnace consists of brazing furnace, cool area,Ammonia Cracker and electrical control system.
Brazing furnace consist of furnace body, lining, furnace pot,heating elements, belt and motor, etc.
The shell is weld by 4mm plate and lining is made of super light standard bricks with refractory clay masonry, the thermal insulation layer is filled with high temperature fiber blankets.
The furnace pot is made by stainless steel as 310S, 6mm thickness. The top and the side part is provided with a reinforcing ribs.
The heating elements are made by high temperature resistance wire as spiral type. They lied up and down of the furnace pot. The resistance wire could use as 1150℃,as material:0Cr27Al7MO2
The belt is move by motor as 10KW, the belt is made by SUS314, the speed could adjustable :20-300mm/min.
The protect air system is use Ammonia Cracker Unit to prevent oxidation.
The brazing furnace is divides as 4 heating area ,each area have independent temperature control unit, use SCR and PID control.
The cooling area is welded by 4mm thickness steel outer and 4mm stainless steel inter. The water cooling pipes around the area
