Detailed Product Description
Uses:Pit Nitriding Furnace Gas nitriding of carbon steel, alloy steel, powder metallurgy materials.

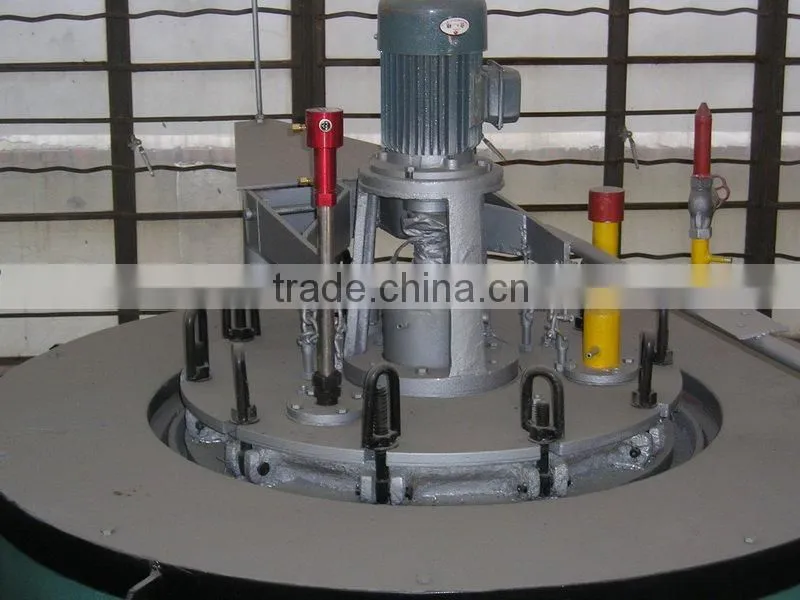

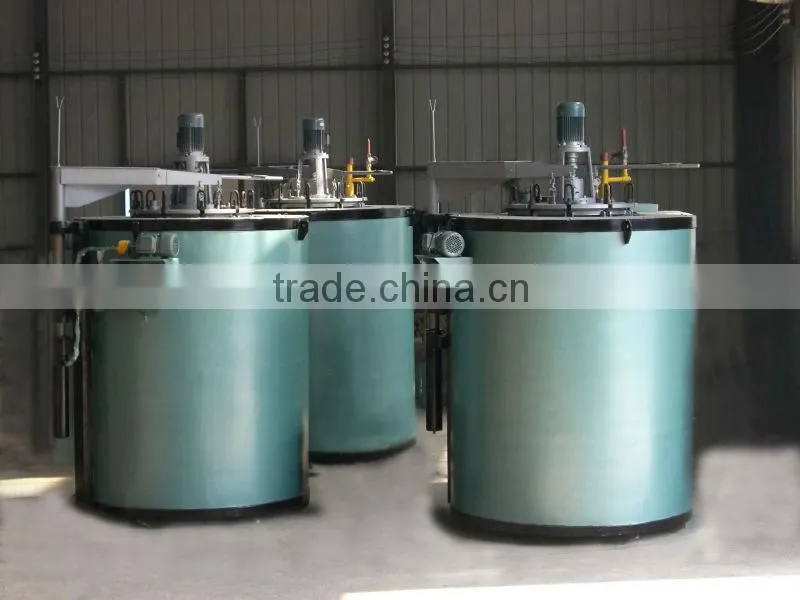

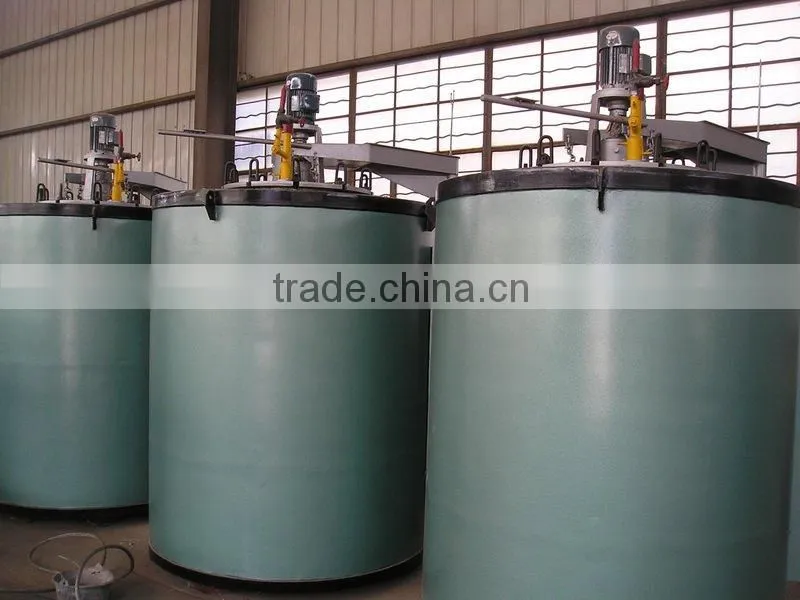

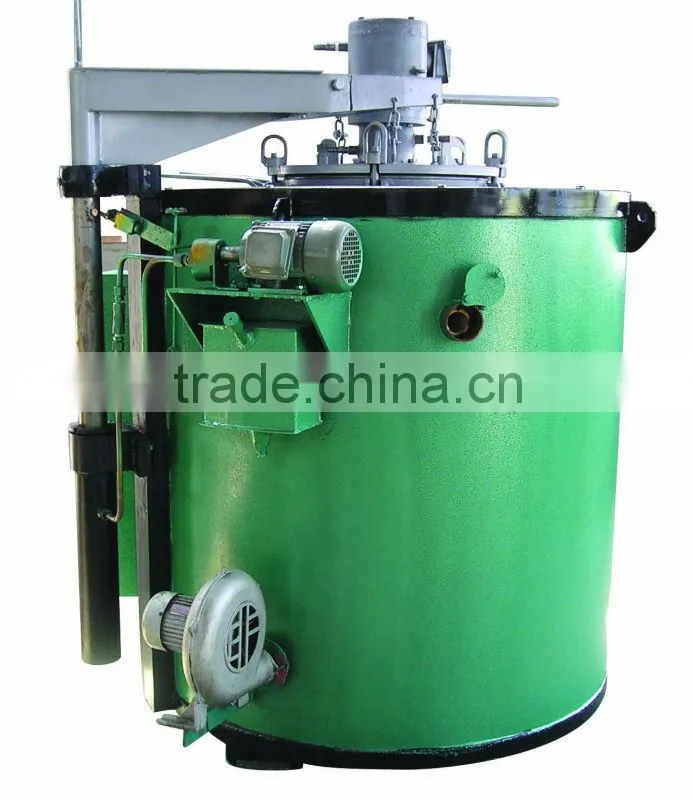

Structure Description:The pit gas nitriding furnace consists of shell, lining, furnace tank, door,heating electric elements, circular fan and electric control systems ,etc.
Features:
1.The lining is piled by full-fiber refractory material. This kind of material is lighter and has longer life.
2.The heating electric elements are made by 0Cr21Al6Nb resistors and have a wavy type.
3.The door's inside use aluminum silicate refractory fiber to keep seal.
4.The furnace has a strong fan, so the circular wind could achieve temperature uniformity.
5.The electric control system consists of micro-computer,intelligent digital display temperature controller and printers.
| Furnace model | RN-45-6 | RN-75-6 | RN-80-6 | RN-105-6 |
| Rated temperature(°c) | 650 | 650 | 650 | 650 |
| Dimension(mm) | Φ600X1000 | Φ600X1300 | Φ600X1000 | Φ600X1200 |
| Power(Kw) | 45 | 75 | 80 | 105 |
| Weight(Kg) | 3700 | 5200 | 4800 | 6500 |
electric control system
Note: The above specifications are for reference only, furnace specific size is based on the demand for customer requirement.
Pit Nitriding stove
