Usage:The mass process heat-treatment of machine parts,heating,normalizing,annealing and quenching,carburizing and nitriding in protect atmosphere.
Structure Instruction:The line type mesh furnace formed by mesh belt,furnace sheel,lining,washing tank,strong fan,automatic control system,etc.
Features:
1.The line type mesh furnace main used for mass process of small machine parts,such as:standard parts,bearings, chains, screws, needles,etc.
2.The furnace could achieve the whole heat treatment in one production,such as:heating,normalizing,annealing and quenching,carburizing and nitriding in protect atmosphere.
3.The lining use the full-fiber refractory .This kind of refractory material is lighter and more effective.
4.The strong fan could make strong wind to make the temperature uniformity in the lining.
5.The automatic control system make the producion easier and more economical.
Quenching furnace:
| Furnace Model | RCW-20 | RCW-45 | RCW-60 | RCW-75 | RCW-90 | RCW-120 | RCW-150 |
| Temperature(°c) | 850 | 850 | 850 | 850 | 850 | 850 | 850 |
| Dimension(mm) | 1300X150X50 | 2400X220X50 | 2400X300X50 | 3600X300X50 | 4700X300X80 | 4700X400X80 | 5000X500X80 |
| Power(Kw) | 20 | 45 | 60 | 75 | 90 | 120 | 150 |
| Production(Kg/h) | 30 | 60 | 100 | 150 | 200 | 250 | 300 |
Tempering furnace:
| Furnace Model | RCW-25 | RCW-35 | RCW-45 | RCW-60 | RCW-90 |
| Temperature(°c) | 600 | 600 | 600 | 600 | 600 |
| Dimension(mm) | 3000X400X120 | 4000X400X120 | 3900X600X120 | 5000X600X120 | 4700X800X120 |
| Power(Kw) | 25 | 35 | 45 | 60 | 90 |
| Production(Kg/h) | 45 | 60 | 150 | 200 | 300 |
The equipment is controlled automatically, with an automatic rolling device and belt deviation
calibration device. The inlet gas comes into the furnace from the bottom and the heating elements is embedded in
Commitment to quality service
The design,manufacturing and material procurement are according to the relevant national norms and standards. Our company has been obtained the ISO2001:2008 international quality system certification.
Equipment manufacturing cycle : 90 days.
After the production line installation and debugging production, one year warranty, in the warranty period, due to the equipment itself causes various fault, damage repair free of charge by the seller(buyer Provide a round trip ticket).
Cable
The cable and pipe line which on the control cabinet to the equipment shall be prepared by buyer in advance and arranged in accordance with supplier's requirement.
Installation
The supplier will send engineer to indicate the buyer’s works to install the furnace
The supplier pays for the Visa applicant charge
The buyer pays for the engineers’ costs in local area (food, hotel, local transportation etc. Meanwhile guarantee their personal security)During the installation, the buyer sends their workers to help install the equipment, the buyer will prepare the necessary tools, devices and material (such as cable, oil, etc.) for installation, all these cost be paid by buyer. The buyer will put the equipments ready in their workshop according to seller’s indication drawing.

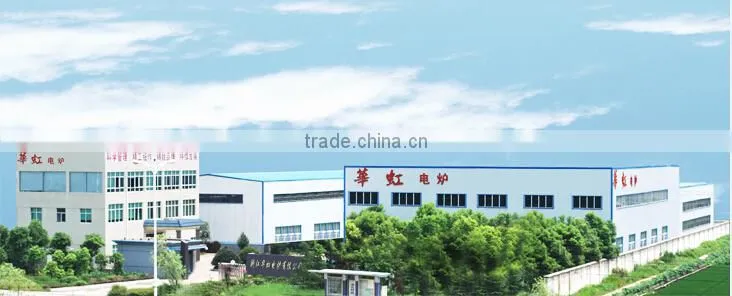

Enjoying super convenient transport, the company is located in hinterland of "long triangle", where is adjacent of south of Tai lake, Shanghai in east and Hangzhou in south, and is the important way of Su, Wan Zhe three provinces. There are two freeways and two first-grade ways in the surrounding of the company. And there are also Xuan-Hang railway, Xinchang railway and golden channel which is known as east Rhine.
For many years, Our company gained nicer honor in many provinces by the excellent quality. Our company exploited new resistance furnace which is environment protective, intelligent and effective on the base of common resistance furnace. We established cooperation with several academics and high schools and we develop piplining groups of furnaces together. Now, our company has 18 series of products and more than 100 new saving furnaces such as infusing multi-functions production lines, mesh belt resistance furnace production lines, aluminum and aluminum alloy material treatment production lines and so on.
Our company now covers acre of 15 mous and the acre of building is near 6,000 sq.m.
