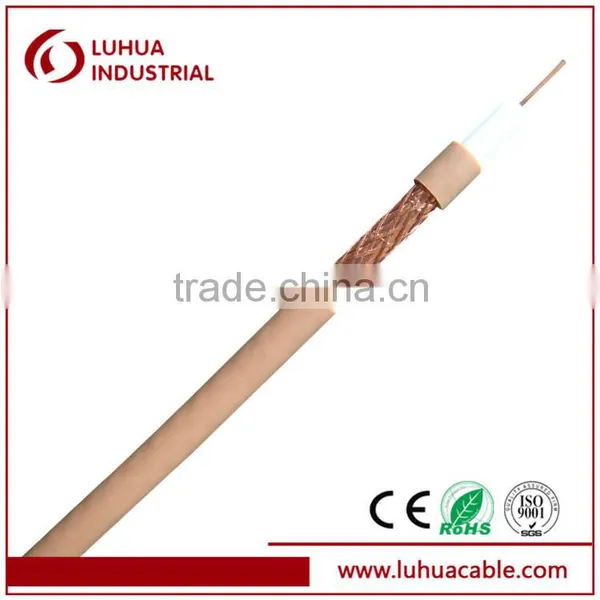

Help CenterRG59 Coaxial Cable
Related Products
-
RF Cable RG8 Coaxial CableNegotiableMOQ: 30 Pieces -
RG6 Coaxial Cable With Competitive PriceUS$ 21 - 26MOQ: 100 Pieces
-
Drop Cable(RG6 Coaxial Cable )used for CATV, SAT TV NetworksNegotiableMOQ: 30 Kilometers
-
50 OHM Standard LMR200 Coaxial CableUS$ 50 - 70MOQ: 50 Pieces
-
RG6 Drop Coaxial Cable for CATV SystemUS$ 0.09 - 0.15MOQ: 50000 Meters
RG59 Coaxial cable specifications
Physical Specifications
Nominal Dimensions | Standard
| Tri-shielding
| Quad-shielding
|
Conductor | 0.81mm( 0.032 in) | 0.81mm( 0.032 in) | 0.81mm( 0.032 in) |
Dielectric | 3.66mm(0.144 in) | 3.66mm(0.144 in) | 3.66mm(0.144 in) |
Shielding 1 | Al /Pet foil | Bonded Al /Pet foil | Bonded Al /Pet foil |
Shielding 2 | 0.12mm*48( 40% coverage) | 0.12mm*64( 60% coverage) | 0.12mm*112( 90% coverage) |
Shielding 3 | - | Al /Pet foil | Al /Pet/Al foil |
Shielding 4 | - |
| 0.12mm*64( 60% coverage) |
Jacket | 6.1mm( 0.24 in) | 6.1mm( 0.24 in) | 6.73mm( 0.265 in) |
Messenger | 1.3mm (0.051 in) Zinc plated steel | ||
Mechanical Characteristics
Mechanical Breaking Strength of Messenger 0.051 inch 185lbs. 823 N
Electrical Characteristics
Impedance ( Ohms) 75±3
Nominal Capacitance (pF/m) 53
Velocity of Propagation 85%
Structural return loss (Db)≥ VHF 22
UHF 20
Attenuation [@68F.(20 Degree centigrade)]
Frequency Mhz | dB/100 ft | dB/100 M |
5 | 0.86 | 2.82 |
55 | 2.05 | 6.73 |
211 | 3.80 | 12.47 |
300 | 4.45 | 14.60 |
400 | 5.10 | 16.73 |
450 | 5.4 | 17.72 |
550 | 5.95 | 19.52 |
750 | 6.97 | 22.87 |
865 | 7.52 | 24.67 |
1000 | 8.12 | 26.64 |
Send Inquiry to This Supplier
