Zhejiang Luhua Industrial Co., Ltd.: Hangzhou, Zhejiang, China; Main products: Coaxial Cable, Lan cable, Fiber optical cable, Decorative paper, Melamine paper

Home > Products > COAXIAL CABLE > RG58 what is coaxial cable coaxial cable splitter amplifier rca to coaxial cable converter box what is a digital coaxial cable c

RG58 what is coaxial cable coaxial cable splitter amplifier rca to coaxial cable converter box what is a digital coaxial cable c

FOB Price

USD $0.08 - $0.38 / Meter

50000 Meters(Min.Order)

Supply Ability 6500 Kilometer / Kilometers per Month
Port Shanghai/ningbo
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	Luhua or OEM
Model Number	RG58	Type	Coaxial
Number of Conductors	1

Product Description

PRODUCT SPECIFICATION

Physical Specifications :

Nominal Dimensions	Standard RG58 A/U	Tri-shielding RG58 B/U	Quad-shielding RG58 B/U
Conductor	0.94 mm( 0.037 in)	19*0.18mm	19*0.18mm
Dielectric	2.95mm(0.225 in)	2.95mm(0.225 in)	2.95mm(0.225 in)
Shielding 1	Al /Pet foil	Bonded Al /Pet foil	Bonded Al /Pet foil
Shielding 2	0.12mm*48 (40% coverage)	0.12mm*64 (60% coverage)	0.12mm*96 (90% coverage)
Shielding 3	-	Al /Pet foil	Al /Pet/Al foil
Shielding 4	-		0.12mm*48 ( 40% coverage)
Jacket	4.95mm( 0.195 in)	8.1mm( 0.319 in)	5.35mm( 0.21 in)
Messenger	1.3mm (0.051 in) Zinc plated steel

Mechanical Characteristics:

Mechanical Breaking Strength of Messenger 0.051 inch 185lbs. 823 N

Electrical Characteristics :

Impedance ( Ohms) 75±3

Nominal Capacitance (pF/m) 53

Velocity of Propagation 85%

Structural return loss (Db)≥ VHF 22

UHF 20

Attenuation[@68F.(20 Degree centigrade)]

Frequency Mhz	dB/100 ft	dB/100 M
30	1.90	6.30
50	2.46	8.10
150	4.30	14.10
220	5.20	17.10
450	7.50	24.60
900	10.70	35.00
1500	13.40	45.60
2000	16.10	53.00

PRODUCT PICTURES

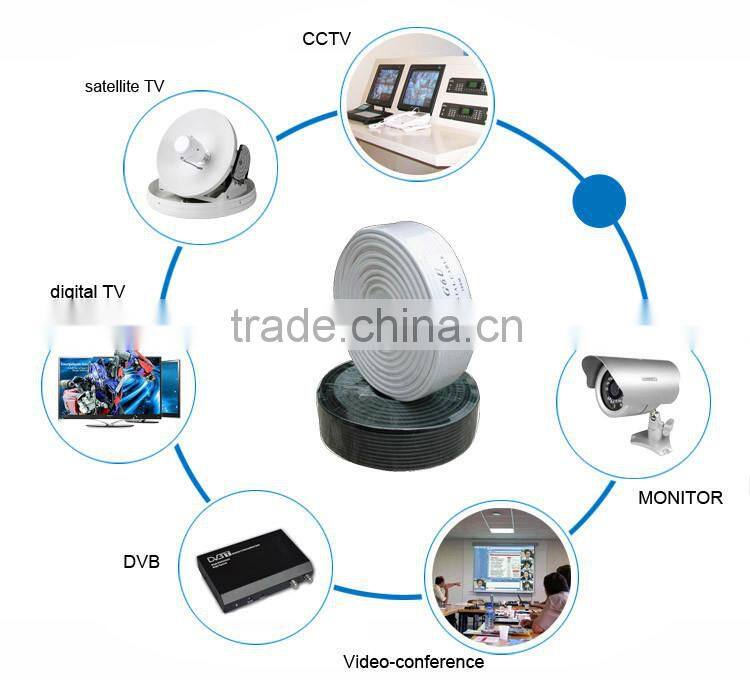

PRODUCT APPLICATION

1. Coaxial cable for CATV,CCTV systems 2. Plus F as connection cable 3. For satellite systems

PACKAGING & SHIPPING

General Packaging:100 m/hollow roll, 6 rolls/normal carton box or 305m/wooden spool/normal carton box.
