Home > Products > RICHTEK > RT8209BGQW RT8209B RT8209 ( AO=BD A0=BJ AO=BK AO=CC AO=CF AO=BL AO=BF AO=...) Single Synchronous Buck Controller

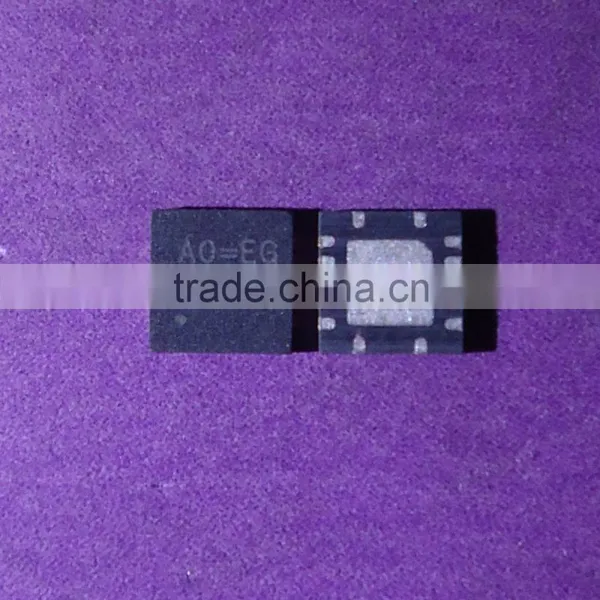

RT8209BGQW RT8209B RT8209 ( AO=BD A0=BJ AO=BK AO=CC AO=CF AO=BL AO=BF AO=...) Single Synchronous Buck Controller
- 2500 Piece / Pieces per Month
- SZ HK
- Credit Card PayPal
You May Like
-
RICHTEK Model code:A2= (A2=EH A2=ED A2=EL...) QFN-28
-
RICHTEK Model code:A2= (A2=EG A2=EA A2=EF...) DFN-14
-
RICHTEK Model code:A2= (A2=EG A2=EC A2=ED...) QFN-28
-
RICHTEK Model code:A3 (A3J A3M A3H...) QFN-16
-
RICHTEK RT9134GQV RT9134 (A4=EH A4=EC A4=EA...) Rail-to-Rail Quad Operational Amplifier
-
RT8209MGQW RT8209M( A5=DD A5=CK A5=DF...) Single Synchronous Buck Controller
Product Details
| D/C | 10+ | Package | QFN | |
| Model Number | RT8209BGQW | Type | Drive IC | |
| Brand Name | RICHTEK | Place of Origin | Taiwan, China |
Product Description
The RT8209A/B/C PWM controller provides high efficiency, excellent transient response, and high DC output accuracy needed for stepping down high voltage batteries to generate low voltage CPU core, I/O, and chipset RAM supplies in notebook computers.
The constant-on-time PWM control scheme handles wide input/output voltage ratios with ease and provides 100ns "instant-on" response to load transients while maintaining a relatively constant switching frequency.
The RT8209A/B/C achieves high efficiency at a reduced cost by eliminating the current-sense resistor found in traditional current mode PWMs. Efficiency is further enhanced by its ability to drive very large synchronous rectifier MOSFETs. The buck conversion allows this device to directly step down high voltage batteries for the highest possible efficiency. The RT8209A/B/C is intended for CPU core, chipset, DRAM, or other low voltage supplies as low as 0.75V. The RT8209A is in a WQFN-16L 3x3 package, the RT8209B is in a WQFN-14L 3.5x3.5 package and the RT8209C is available in a TSSOP-14 package.
Accepts wire transfer, Western union, Paypal and Moneygram.
All items are priced each.
All items are subject to availability and passing our QA inspection.
Packaging: Safety package(Carton)
Shipping:
1. We will ship the items within 2 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx/HK post/china post. Please contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver, please choose other shipping ways.
Warranty:
1.Our side always double check all the products before delivery to make sure correct.
2.All components we sell has 30 days return policy from the day of shipment, but if the damage is man-made, we will be unable to change for you.
