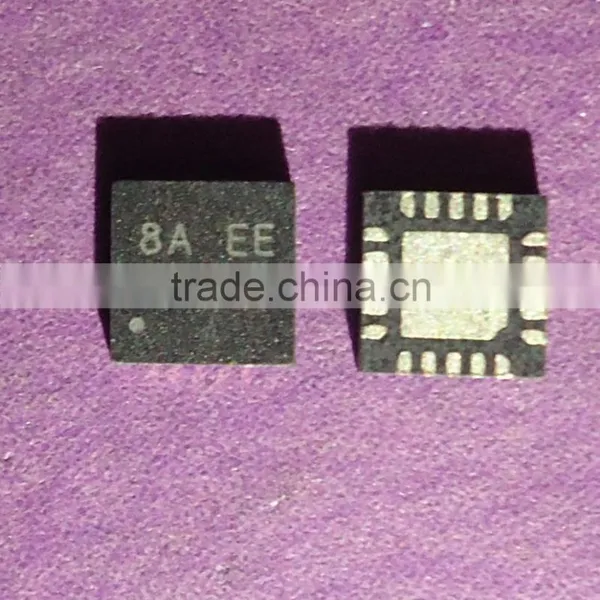

Help CenterRICHTEK RT8243AZQW RT8243A (8A EE,8A EF,8A EC...),High Efficiency, Main Power Supply Controller for Notebook Computers
Related Products
-
RICHTEK RT9625BZQW RT9625BGQW RT9625B (09 EF,09 EC,09 ED,09=EF ...) Dual-Channel Synchronous Rectified MOSFET DriverUS$ 0.5 - 2MOQ: 1 Piece -
RICHTEK Model Code:09 (09H,09W,09G,09 ...) DFN-8US$ 0.5 - 2MOQ: 1 Piece
-
RICHTEK Model Code:10 (10 DD,10=DD,10 DF ...) QFN-32US$ 0.5 - 2MOQ: 1 Piece
-
RICHTEK RT7263BZQW RT7263B Model Code:10 (10 EG,10 EF,10 EC ...) DFN-14,3A, 21V 500kHz Synchronous Step-Down ConverterUS$ 0.5 - 2MOQ: 1 Piece
-
RICHTEK Model Code:10 (10D,10G,10W,10 ...) DFN-6US$ 0.5 - 2MOQ: 1 Piece
The RT8243A/B/C is a dual step down, Switch Mode Power Supply (SMPS) controller which generates logic supply voltages for battery powered systems. It includes two Pulse Width Modulation (PWM) controllers adjustable from 2V to 5.5V and also two fixed 5V/3.3V linear regulators. One of the controllers (LDO5) provides automatic switch over to the BYP1 input connected to the main SMPS1 output for maximized efficiency. An optional external charge pump can be monitored through SECFB (RT8243B/C). Other features include on board power up sequencing, a power good output, internal soft-start, and a soft discharge output that prevents negative voltage during shutdown.
A constant on-time PWM control scheme operates without sense resistors and assures fast load transient response while maintaining nearly constant switching frequency. To eliminate noise in audio applications, an ultrasonic mode is included, which maintains the switching frequency above 25kHz. Moreover, a diode emulation mode maximizes efficiency for light load applications. The SMPS1/SMPS2 switching frequency can be adjustable from 200kHz/233kHz to 400kHz/466kHz respectively.
The RT8243A/B/C is available in a WQFN-20L 3x3 package, and operates over an extended temperature range from -40°C to 85°C.
Accepts wire transfer, Western union, Paypal and Moneygram.
All items are priced each.
All items are subject to availability and passing our QA inspection.
Packaging: Safety package(Carton)
Shipping:
1. We will ship the items within 2 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx/HK post/china post. Please contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver, please choose other shipping ways.
Warranty:
1.Our side always double check all the products before delivery to make sure correct.
2.All components we sell has 30 days return policy from the day of shipment, but if the damage is man-made, we will be unable to change for you.
