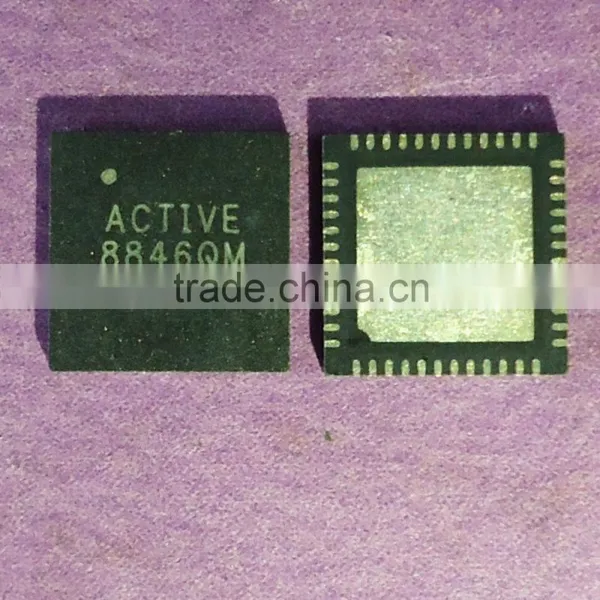

ACT8846QM460 ACT8846QM 8846QM Advanced PMU for Multi-core Application Processors

ACT8846QM460 ACT8846QM 8846QM Advanced PMU for Multi-core Application Processors thumbnail-1
ACT8846QM460 ACT8846QM 8846QM Advanced PMU for Multi-core Application Processors photo-1
US$ 1 - 5 MOQ: 1 Piece
Key Specifications
Get Latest Price
D/C:
10+
Package:
QFN
Model Number:
ACT8846QM460-T
Contact Supplier Request Quote Chat Now
Shenzhen Visen Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SZ/HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
D/C 10+
Package QFN
Model Number ACT8846QM460-T
Type Drive IC
Brand Name Mobile Phone
Place of Origin Taiwan, China
Product Description
Product Description
The ACT8846 is a complete, cost effective, and
highly-efficient ActivePMUTM power management
solution optimized for the power, voltage
sequencing and control requirements of Rockchip
RK3066 application processor family.
The ACT8846 features four fixed-frequency,
current-mode, synchronous PWM step-down
converters that achieve peak efficiencies of up to
97%. These regulators operate with a fixed
frequency of 2.25MHz, minimizing noise in sensitive
applications and allowing the use of small external
components. These buck regulators supply up to
2.8A of output current and can fully satisfy the
power and control requirements of the multi-core
application processor. Dynamic Voltage Scaling
(DVS) is supported either by dedicated control pins,
or through I2C interface to optimize the energy-pertask
performance for the processor. This device
also include eight low-noise LDOs (up to 350mA
per LDO), one always-on LDO and an integrated
backup battery charger to provide a complete
power system for the processor.
The power sequence and reset controller provides
power-on reset, SW-initiated reset, and power cycle
reset for the processor. It also features the
watchdog supervisory function. Multiple sleep
modes with autonomous sleep and wake-up
sequence control are supported.
The thermal management and protection
subsystem allows the host processor to manage the
power dissipation of the PMU and the overall
system dynamically. The PMU provides a thermal
warning to the host processor when the
temperature reaches a certain threshold such that
the system can turn off some of the non-essential
functions, reduce the clock frequency and etc to
manage the system temperature.
The ACT8846 is available in a compact, Pb-Free
and RoHS-compliant TQFN66-48 package.
Terms

Accepts wire transfer, Western union, Paypal and Moneygram.
All items are priced each.
All items are subject to availability and passing our QA inspection.

Packing & Delivery

Packaging: Safety package(Carton)
Shipping:
1. We will ship the items within 2 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx/HK post/china post. Please contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver, please choose other shipping ways.

Our Services

Warranty:
1.Our side always double check all the products before delivery to make sure correct.
2.All components we sell has 30 days return policy from the day of shipment, but if the damage is man-made, we will be unable to change for you.
