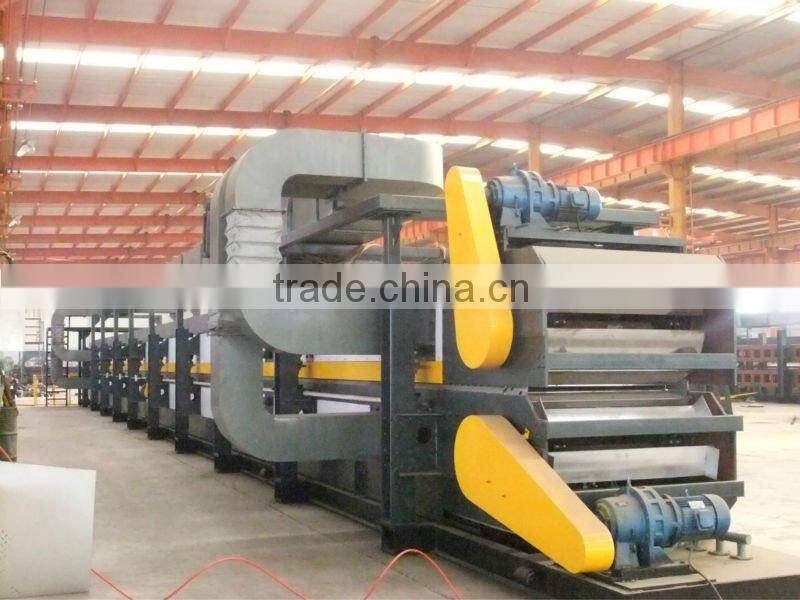

polyurethane foam board production line

Specifications

-Continuous pu machine line.
-high efficiency.
-ISO9001;CE
-best after-sell service.

Product Name: Full-automatic polyurethane panel machine
Model: XL-PU Series
The main Feature of PU panel:
•PU insulation panel is one of the most popular thermal insulation material with excellent performance, which is widely used in the area of wall and roof of industrial or civil building, such as the construction of refrigeration and freeze, door and windows of building, etc.
•Polyurethane panel is universally acknowledged the best material of heat insulation and heat preservation nowadays. it can perform a good anticorrosion, antirust and anti-weathering

The main feature of PU machine:

No.	items	Index
1	Color steel sandwich panel Specifications	Width: 700 ~ 1000 Thickness: 20 to 150 custom length
2	Production line speed	1-4m/min
3	Total power	147.5KW
4.	Double belt laminated conveyor length	24m
5	Line dimensions (L × W × H)	45920*5365*3636
6	temperature of the hot air circulation	60-70°C
7	Standard size of panel	1200*4000mm
8	poring rate	Max 1200mm/s
9	mixing speed	4500r/min
10	The max valve lift of laminator	300mm

We can produce High Pressure/Low Pressure PU Foaming Machine can be customized to meet your budget and requirement by the flexible configuration base on your production.
