EPS 3D wall making machine XL-ZH1200B
- 15 Set / Sets per Month
- Tianjin
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | EPS | |
| Model Number | XL-ZH1200B | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
3d panel machine
3d wire mesh panel machine
1)inserting wire diameter 1.8-2.8mm
2)width of the panel 1200mm
3)mesh size:50*50m
1. The upper wire mesh and lower wire mesh were welded with slanted steel wire to form a product---3D Panel.
2. PLC, touch screen, specially designed chain system;
3. High productivity, sparse inserting panels can reach 700 SQM per 8 hours. dense insering 400-500SQM per 8 hours
4. It can produce two types of 3D Panels(sparse 3D panel and dense 3D panel)
5. Low lack welding rate, even welding strength, excellent quality and low production cost.
6. Design special machines by requirements
The technical parameters of 3D panel machine
Input Power Supply | AC380V 50HZ 75KVA | |
Air Source Equipment | 3m3/min 0.6Mpa | |
Standard size | Wire Mesh Structure | 50mmX50mm |
Welded Mesh Wire Diameter | 1.8-2.8mm | |
Inserting Wire Diameter | 1.8-2.8mm | |
Thickness of EPS core | 50mm-100mm | |
Structure of Inserting Wire | sparse, dense inserting single, double sides mesh | |
Distance between EPS Core and Mesh | 10mm | |
Length | 3000mm-6000mm | |
Width | 1220mm | |
Non-standard size | Wire Mesh Structure | As Requirement |
Welded Mesh Wire Diameter | 3.0-3.5mm or as requirement | |
Inserting Wire Diameter | 3.0-3.2mm or as requirement | |
Thickness of EPS core | 100-150mm or as requirement | |
Productivity | Dense inserting: 400-500m2/8hours | |
Material | Wire Materials | Galvanized or cold drawing low carbon wire |
Material of EPS Core | Fire resistance type | |
3D panel lack welding rate | ≤3% | |
Measurement of the machine | 3d panel machine Length | 13500mm |
3d panel machine Width | 1800mm | |
3d panel machine Height | 1700mm | |
3d panel machine Weight | 4000kg | |

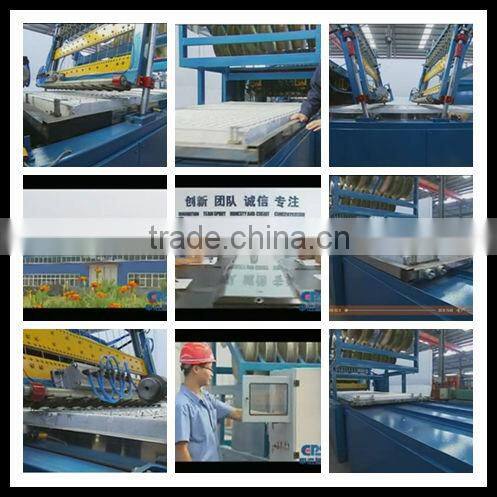

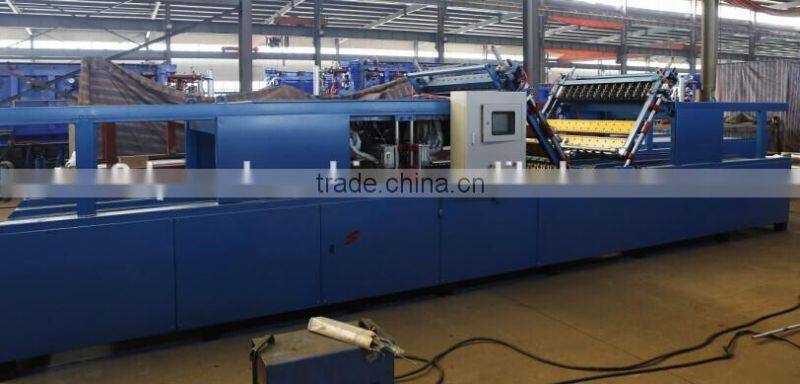

Working photos:
l Nude packing for main body, plywood box for the spare parts.
l According to your requirements.
l The goods should be inspected in our workshop before shipment.

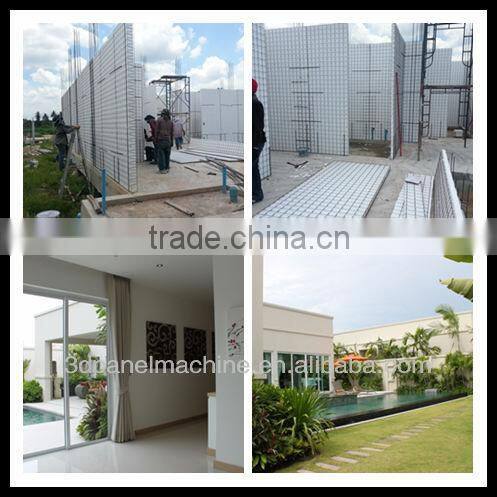

l Loading and customer installation photos:
l We supply factory layout design ; machine installation ; worker training
l Professional after sell and after-sell service team
Xuelong Advantages:

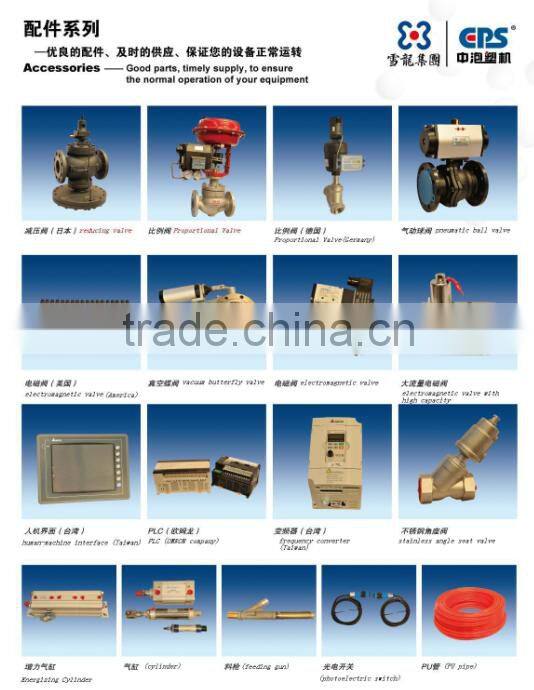

u Main parts after imported from famous factory in the world to control the machine with high quality.
u Machine design take the customer’s local environment and custom condition as consideration
u Machine main body with high quality steel and stainless steel and high quality painting to prevent rusting.
uXuelong company has more than 20 years experiences in eps machine fields that you can trust in China
u We are the famous brand in Hebei China.
Xuelong factory was established in 1994, the main business scope including: PC machine line;EPS raw materials, EPS machinery manufacturing and color steel sandwich panel & steel structure projects. So far , Xuelong has already been a large business group that has 6 separate legal subsidiaries with more than 600 employees.
Xuelong factory passed ISO9001:2008 quality management system certification and " National high-tech Enterprise" certification. As the leading company of PC/eps machine manufactures in China, Xuelong company has been the first choice of customers, which enjoys high reputation as "world-class machinery".
