Polystyrene wall panel machine
Specifications
1.3D panel welding machine ISO:9001:2008
2.High Quality 3D Panels
3.More than 20 years manufacturing and design
4.Obtained two patents technology certification

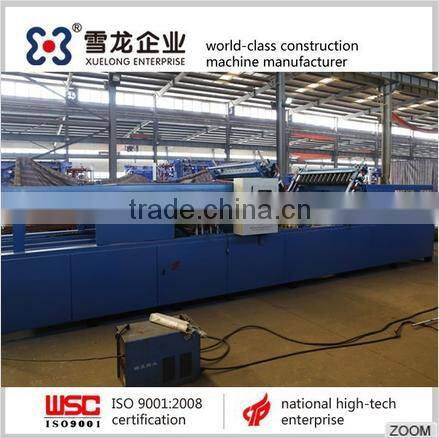

XL-ZH-1200B polystyrene wall panel machine
——Quick,precise and high level of automatic
Polystyrene wall panel machine features
1. Unique gasbag system
It is improvement compared with previous single gasbag, which can ensure the clamp and straighten the inserting wire, meanwhile it confirms the welding accuracy of the lower mesh welding points surface. The lack welding rage reach more less.
2. Specially designed chain system
The chain transmission system of Xuelong 3D panel machine is not made at random, which is specially designed and produced according to its special running mechanism. 3D panel grid frames step running in the chain system, so the chain system will be worn after long time running, and the 3D panels’ quality will be influenced greatly. The special designed chain system of Xuelong 3D panel machine can extend running time.
3. Different Type of Panel
We have many choice of the panel length and the thickness of the EPS core. Also, several panel shapes for customers’ selection.
Polystyrene wall panel machine technology datas
Input Power Supply | AC380V 50HZ 75KVA | |
Air Source Equipment | 3m3/min 0.6Mpa | |
Standard size | Wire Mesh Structure | 50mmX52mm or 50*50mm or by requirements |
Welded Mesh Wire Diameter | 1.8-2.8mm or 2.0-3.0mm | |
Inserting Wire Diameter | 1.8-2.8mm or 2.0-3.0mm | |
Thickness of EPS core | 50mm-100mm | |
Structure of Inserting Wire | sparse, dense inserting | |
Distance between EPS Core and Mesh | 10mm or by requirements | |
Length | 3000mm-6000mm | |
Width | 1220mm | |
Non-standard size | Wire Mesh Structure | As Requirement |
Welded Mesh Wire Diameter | 3.0-3.5mm or 3.5-4.0mm or as requirement | |
Inserting Wire Diameter | 3.0-3.5mm or 3.5-4.0mm or as requirement | |
Thickness of EPS core | 50-120mm or 80-150mm or 50-200mm or as requirement | |
Productivity | EVG Type | Dense inserting: 300-500m2/8hours |
Material | Wire Materials | Galvanized or cold drawing low carbon wire |
Material of EPS Core | Fire resistance type | |
3D panel lack welding rate | ≤3% | |
Measurement of the machine | 3d panel machine Length | 13500mm |
3d panel machine Width | 1800mm | |
3d panel machine Height | 1700mm | |
3d panel machine Weight | 4000kg | |
Polystyrene wall panel machine patented technology

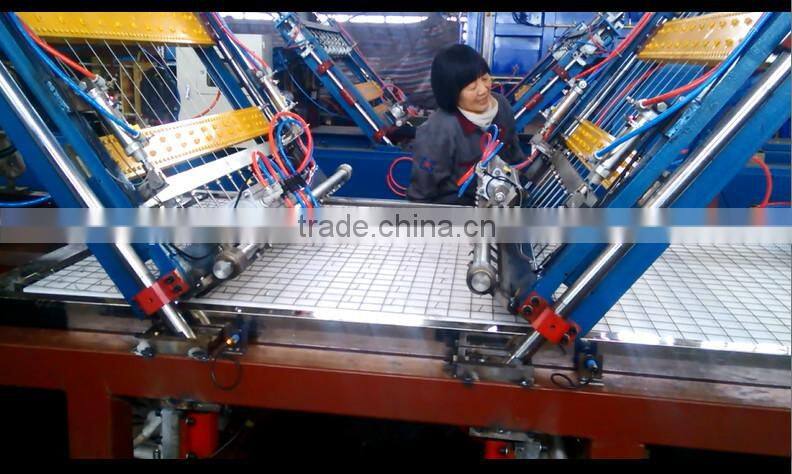

pinpiont wire inserting soldering pliers unit

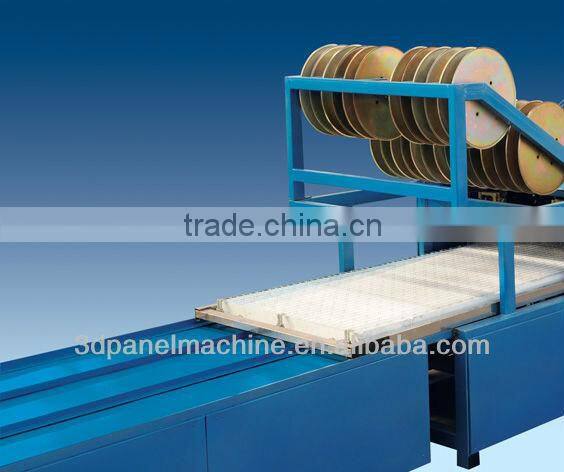

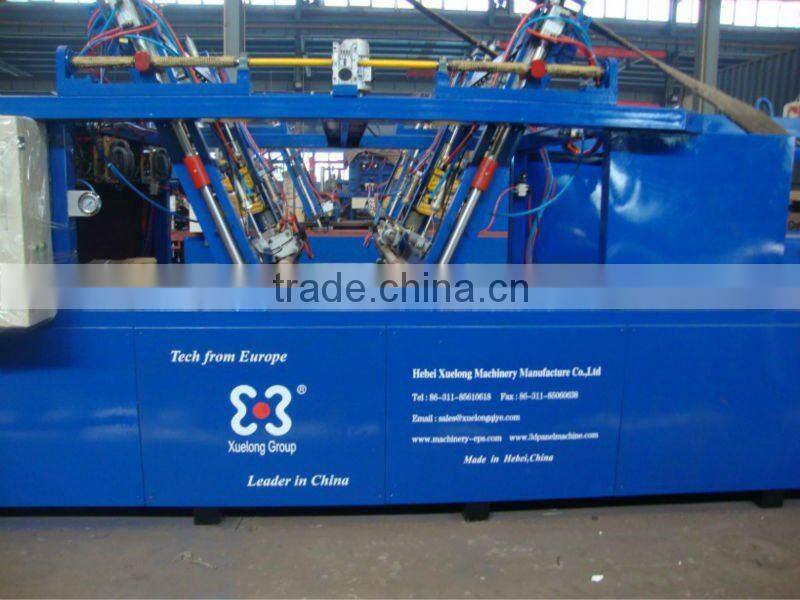

Detail images

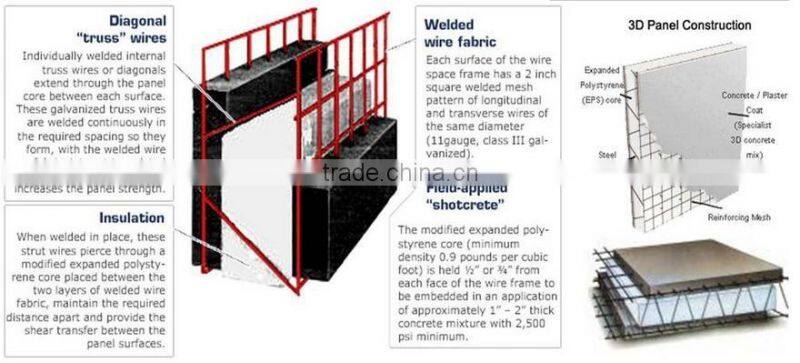

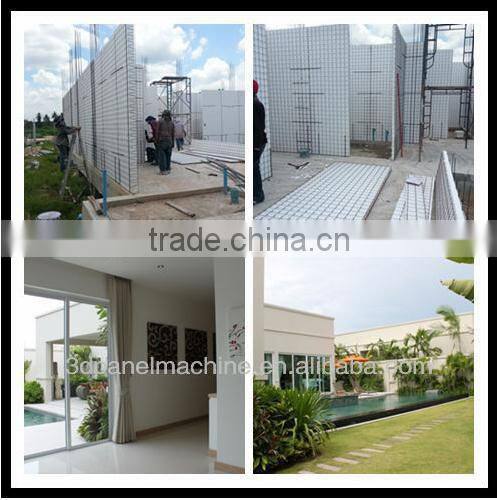

Finished EPS 3D wall panel
Our certificartion

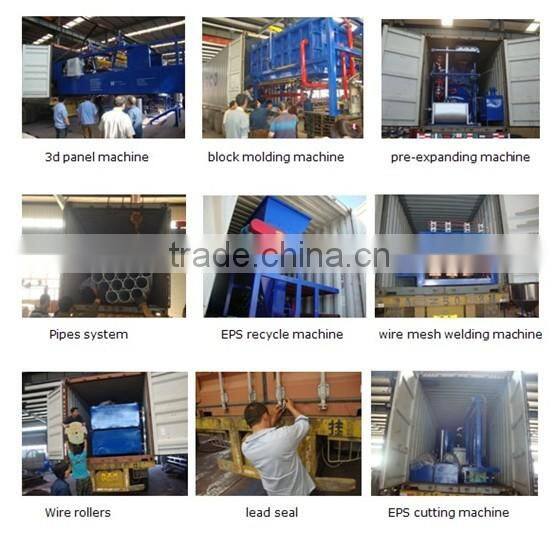

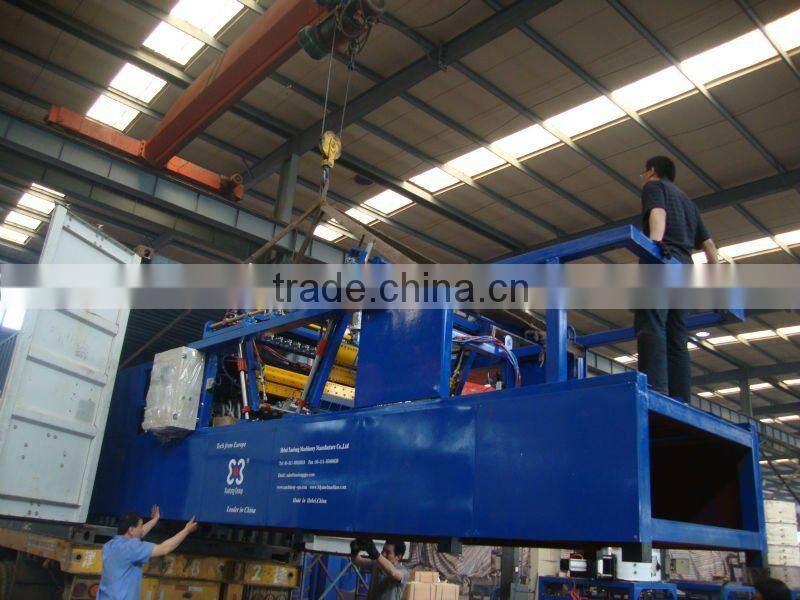

Packaging&Shipping
Our service
1.We could supply better entire system design project
2.Pre-work training for customers,on-site installation and consultation
3.Professional serving engineer team
Our related productions
Xuelong company established in 1994, through many years of development, now Xuelong company become the largest professional manufacturer of 3D panel production line, phenolic foam machinery, 3D panel machinery & EPS machinery manufacturer in the north of China.
Xuelong follows the concept of “Quality is Life”, and successively passed ISO 9001:2008 Quality Management System Certification, Science and Technology Achievements certification and many items of letter of patent.
Add: Development Zone of Shijiazhuang City, Hebei Province, China
Tel: +86-311-85610618
Fax: +86-311-85060638
Web Sites: /
