3 Axle Container Trailer Semitrailer Truck Trailer

Name: 3 Axle Container Trailer Semitrailer Truck Trailer
Brand: Sinotruk
SKU: 129609255
Availability: InStock

US$ 11,200 - 13,500 MOQ: 1 Unit

Key Specifications

Type:

Semi-Trailer

Material:

Steel

Certification:

Jinan Fengwo Truck Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Shanghai Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Steel

Certification CE

Size 12500x2500x1700mm

Max Payload 50 tons

Place of Origin Shandong, China

Brand Name Sinotruk

Product Description

3 axle container trailer semitrailer truck trailer

Main Description
Overall Dimension		12500mm2500mm2860mm

Tare Weight		6000kg	Pay Load	80ton
King Pin Setting		1460mm	Rear Overhang	1930mm
Track		1840mm	Loading surface height	1600mm
Wheel base		7800mm+1310

Suspension		Tri-axle mechanical suspension with 10-pcs leaf spring

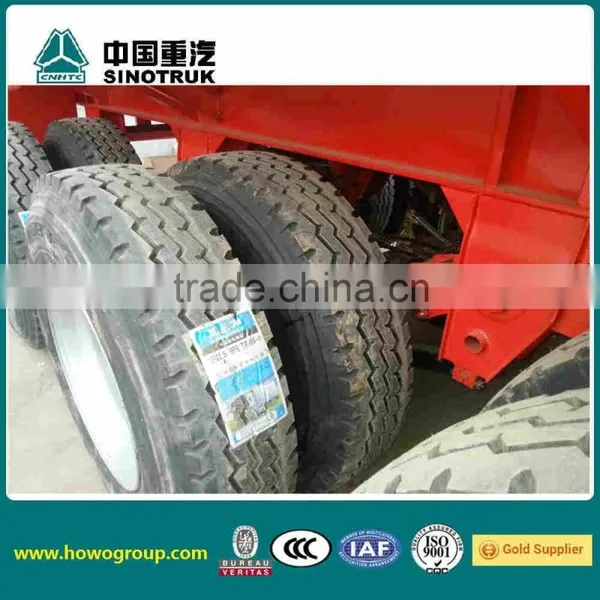

Tires		12.00R20, Radial tires,12units
Axles		FUWA, 3 axles, load capacity 13T per axle
Brakes		Dual lines pneumatic brake system; T30/30+T30 air chamber; parking brake,
Under Frame
Main Beam		The height of the beam is 500 mm, upper plate is20mm,down plate is 20mm,middle plate is 12mm
Cross Beam		Mild Alloy Q235B
King Pin		Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled, JOST brand
Landing Gear		Single side operation, FUWA brand
Electrical & Paint
Lights & Reflectors	Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Wiring	24V, 6 lines
Air/Elec. Connector	ISO standard air connector, 24V 7 pin plug socket
Paint	Sand blasting before painting, 2 coat of anticorrosive primer, 2 coats of finish urethane paint, Color upon request
