3 axle low bed trailer semitrailer truck trailer

FOB Price

USD $13,800 - $15,600 / Unit

1 Unit(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

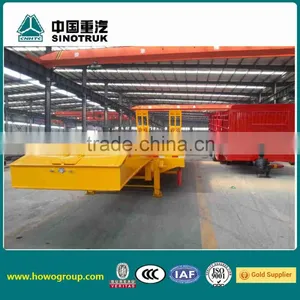

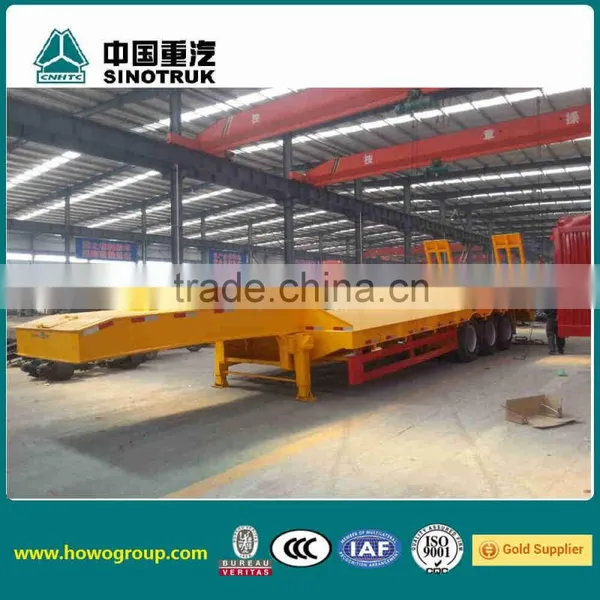

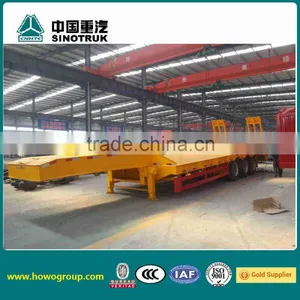

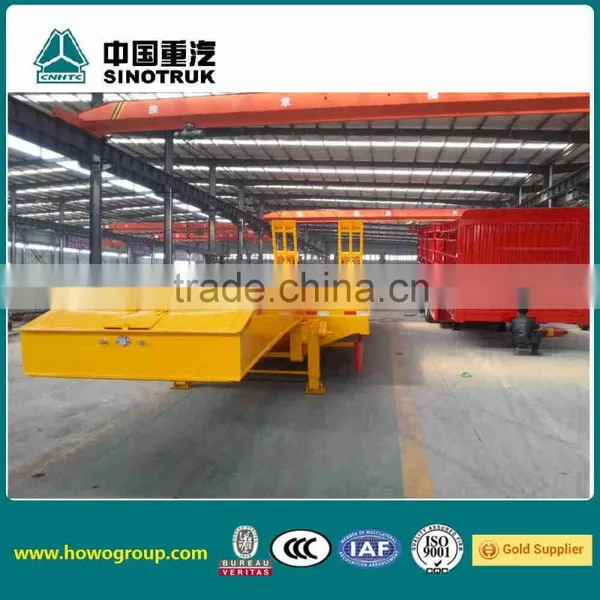

3 axle low bed trailer semitrailer truck trailer

General
Overall Dimension	13000mm3000mm3300mm
Flatbed Dimension	9000mm*3000mm
Tare Weight	10500kg	Pay Load	70 tons
King Pin Setting	450mm	Rear Overhang	1870mm
Wheel base	7650mm+1305mm+1305mm	Loading Surface Height	1320mm
Track	2160mm
Running Gear
Suspension	Tri-axle 10-pcs leaf spring suspension with equalizer beam
Tires	12.00R20, Radial tyres, 12units
Axles	FUWA, axle, 13T capacity
Brakes	Dual lines pneumatic brake system, parking brake
Under Frame
Main Beam	I shape, Mild Alloy (Q345) by Automatic submerged arc welding. The height of the beam is 550 mm, upper plate is 20 mm,down plate is 24 mm,middle plate is 12 mm
Cross Beam	Mild Alloy Q235B, 16# channel beam
King Pin	Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled
Landing Gear	Single side operation or double side operation, Static capacity 28Tons
Flatbed Floor	Checkered sheet, thickness 3mm
Rear Ladders	Spring power-assisted
Electrical & Paint
Lights & Reflectors	Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Wiring	24V, 6 lines
Air/Elec. Connector	ISO standard air connector, 24V 7 pin plug socket
Paint	Sand blasting before painting, color upon request
