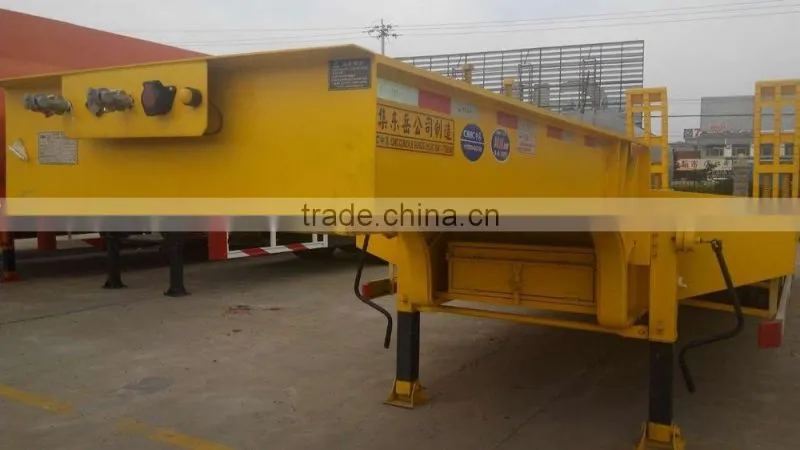

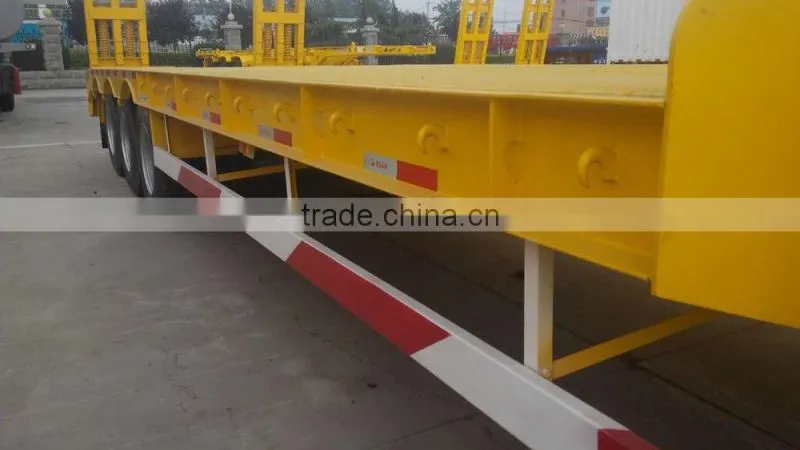

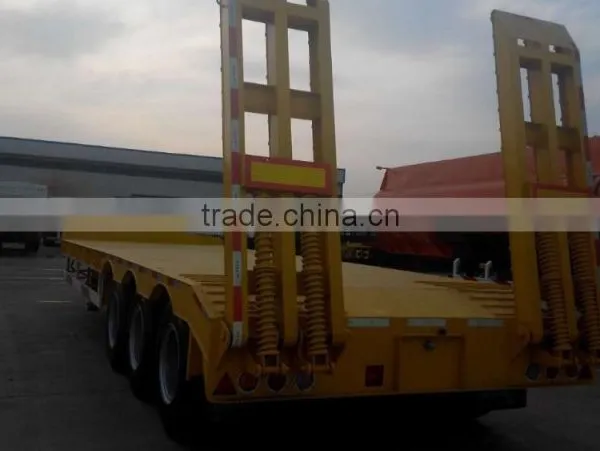

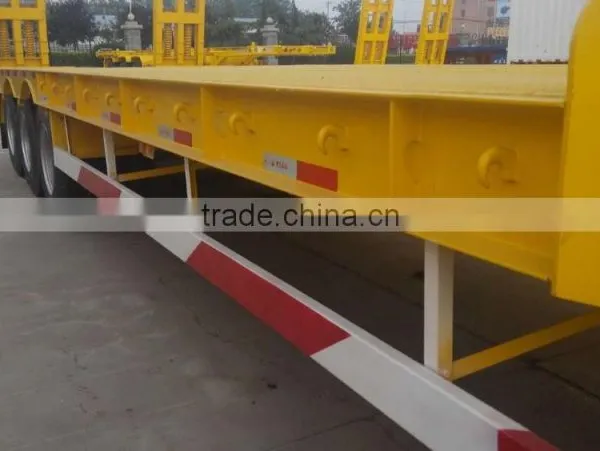

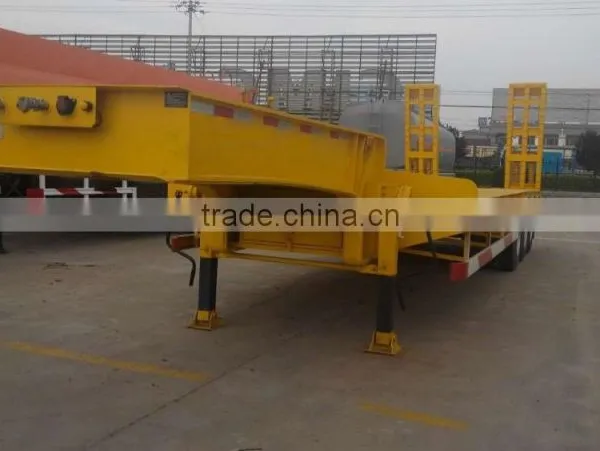

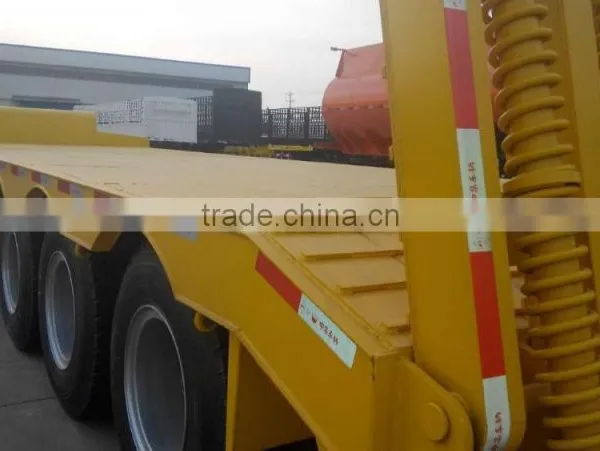

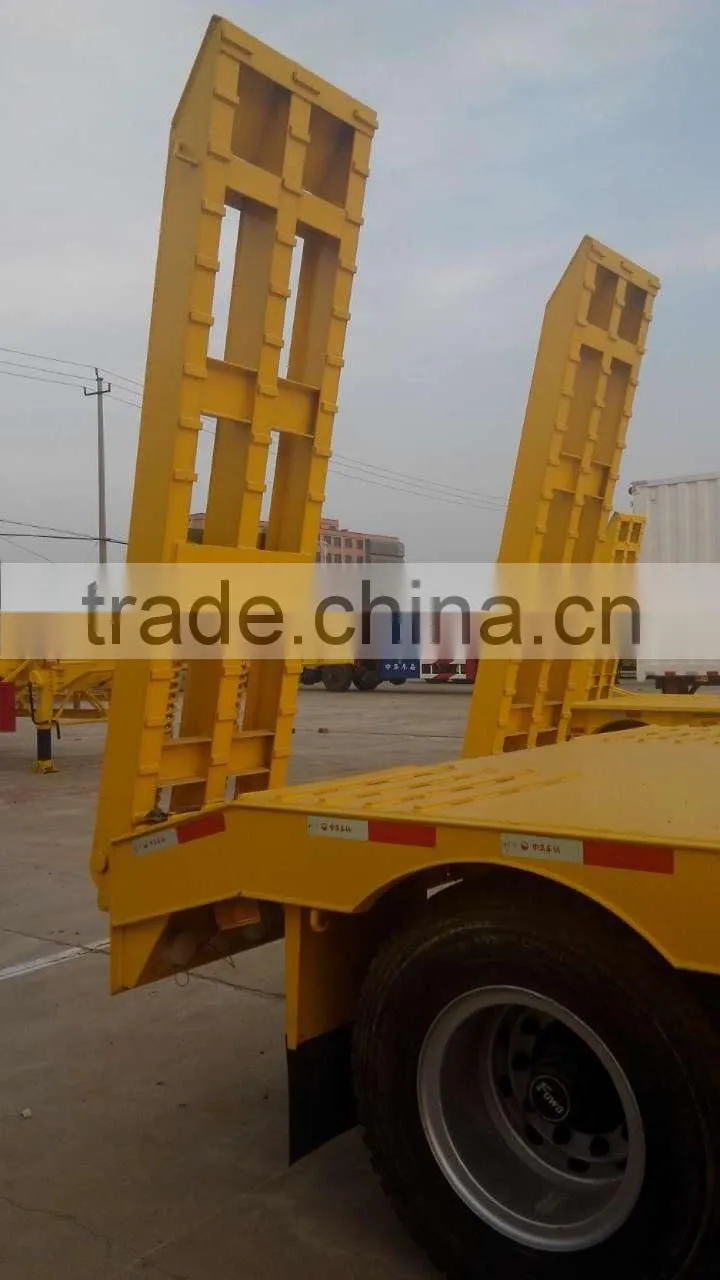

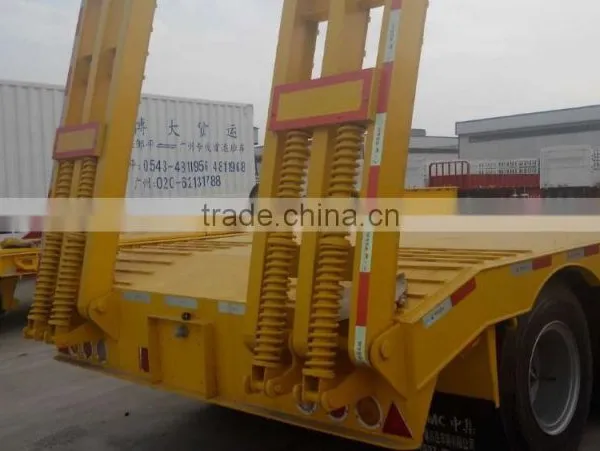

60t Low Bed CIMC Semi Trailer for Trailer Truck

Name: 60t Low Bed CIMC Semi Trailer for Trailer Truck
Brand: CIMC
SKU: 129608731
Availability: InStock

US$ 17,000 - 22,000 MOQ: 1 Unit

Key Specifications

OEM No.:

01002034934413

Max Payload:

60T

Size:

13000mm*3000mm*3300mm

Jinan Fengwo Truck Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin port Qingdao port Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

OEM No. 01002034934413

Max Payload 60T

Size 13000mm*3000mm*3300mm

Place of Origin Shandong, China

Brand Name CIMC

Model Number CIMC01T14345TDP

1. 60t Low Bed Semi Trailer for trailer truck

2. Used to transport heavy machinery.

3.Can optional according to customer’s.

Low Bed Trailer for Sale
Overall Dimension	13000mm3000mm3300mm
Flatbed Dimension	9000mm*3000mm
Tare Weight	9630kg	Pay Load	40 tons
King Pin Setting	450mm	Rear Overhang	1870mm
Wheel base	7650mm+1305mm+1305mm	Loading Surface Height	1320mm
Track	2160mm
Running Gear
Suspension	Tri-axle 10-pcs leaf spring suspension with equalizer beam
Tires	12.00R20, 12units
Axles	FUWA, axle, 13T capacity
Brakes	Dual lines pneumatic brake system, parking brake
Under Frame
Main Beam	I shape, Mild Alloy (Q345) by Automatic submerged arc welding. The height of the beam is 500 mm, upper plate is16mm,down plate is 18mm,middle plate is 10mm
Cross Beam	Mild Alloy Q235B, 16# channel beam
King Pin	Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled
Landing Gear	Single side operation or double side operation, Static capacity 28Tons
Flatbed Floor	Checkered sheet, thickness 3mm
Rear Ladders	Spring power-assisted
Electrical & Paint
Lights & Reflectors	Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Wiring	24V, 6 lines
Air/Elec. Connector	ISO standard air connector, 24V 7 pin plug socket
Paint	Sand blasting before painting, color upon request
