Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | YULONG |
Model Number: | XGJ560 | Voltage: | 380v | Power(W): | 90kw |
Dimension(L*W*H): | 2600*1300*2300mm | Weight: | 6.1T | Certification: | CE,ISO9001:2008 |
Warranty: | 13 month | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Chapter 1:Brief Introduction to YULONG machine
Zhangqiu Yulong Machine Co., Ltd,a hitech biomass pellet fuel making equipments manufacturer,
was established in 1998which have developed into a group enterprise whose business integrates
scientific research,manufacturing,training and international trade.Professional in complete biomass
fuel pellet production line supplying.
Main products include XGJ vertical ring die and SKJ flat die wood/biomass pellet mill/press/machine,
wood/biomass hammer mill/grinder/crusher,all kind of mixer machine, pellet cooler machine, air flow
dryer and rotary drum dryer, all kind of wood chipper and sawdust making machine, vibrating screener
or separator,multigrade separator, pellet bagging and sewing machine,bucket elevator, belt conveyor,
hydraulic rolling silo...
All the above equipments approved by SGS,CE&ISO9001 and Chinese government organization.
DIN pellet standard can be easily reached.
YULONG brand biomass fuel pellet making equipments have been exported toEurope,USA,Australia,
Canad,South east Asia,Japan,South Korea,Middle east,South Africa etc.from 1998.
Also setting four oversea service and sells centers in Poland,Bulgaria,Thailand,Malaysia,respectively.
Chapter 2:Introduction to XGJ pellet mill/machine
1).Summary
XGJ series efficient centrifugal pellet mill is our main product which has adopted the most advanced
vertical ring die structure concept. The heart parts “double layer die” are made of high wearable stainless
steel. Through many technical experts’ hard work, our company has developed this typical patent product which
comes forth firstly in domestic market. The new machine has filled the country blank in vertical feeding for ring
die pellet mill and reached the international advanced level. This product is mainly applicable for difficult molding
materials with low adhesion rate, for example rice husk, sunflower husk, peanut shell and fruit shell; branch, stem,
bark and other wood waste; a variety of crop stalks; rubber, cement, ash and other chemical materials. It can be used
in wood processing plants, fuel plants, chemical plants etc.Since it requires less investment and yield quicker result
and that no risk, XGJ series efficient centrifugal pellet mill is an ideal dense compression molding equipment.
2).Charateristics
1. XGJ Centrifugal pellet machine adopts the advantages both of common ring die pellet machine and flat die pellet
machine,rollers moving, die stable,producing much larger pressure between rollers and die , which can press very
low adhesion biomass waste into good quality pellets .
2. XGJ C
entrifugal pellet machine can adjust pressure between rollers and die automatically to fit for different materials
pressure ration.No need to adjust it by hand.very easy to operate
3.XGJ Centrifugal pellet machine contains full automatically lubricate oil system , which can lubricate spare parts-- rollers,
shaft ,gears, bearings automatically,no need to add any oil within two months .
4.XGJ Centrifugal pellet machine has one set cooling system for pelleting room,lowering the the temperature of rollers
bearing greatly,lengthening the lifetime of bearing.
5. XGJ Centrifugal pellet machine adoptsvertical feeding materials,which can feed materials vertically directly into pelletizing
room,but traditional horizontal ring die pellet machinecan only feed materials from machine side which always need a special
material pusher to help feeding.
6. XGJ Centrifugal pellet machine ring die has two layers , when it works, only bottom die layer works , so when bottom layer is broken ,
turn over it and making top layer to bottom,then it can work again . So one die can use two times .also the top and bottom layer hole
can be different , one die can press two different diameter pellets .
3).Technical parameter:
Model | Power of the machine (Kw) | Capacity for wood sawdust (kgs/h) | Weight of the machine (kgs) | Dimension of the machine (mm) |
XGJ550 | 75+3+0.37+0.25+1.5 | 700-1000 | 6000 | 2630x1000x2400 |
XGJ560 | 90+1.5+0.37+1.5 | 1000-1500 | 6100 | 2600x1300x2300 |
XGJ580 | 160+1.5+0.37+1.5 | 1500-2000 | 7000 | 2900x1300x2400 |
XGJ850 | 220+3+0.37(0.55)+2.2 | 2000-3000 | 14500 | 3300x1400x3100 |
XGJ880 | 315+5.5+0.55+1.5+2.2 | 3000-4000 | 18000 | 3800x1680x3400 |
XGJ1050 | 450+5.5+0.55+1.5+3 | 5000-6000 | 23000 | 3980×2060×345 |

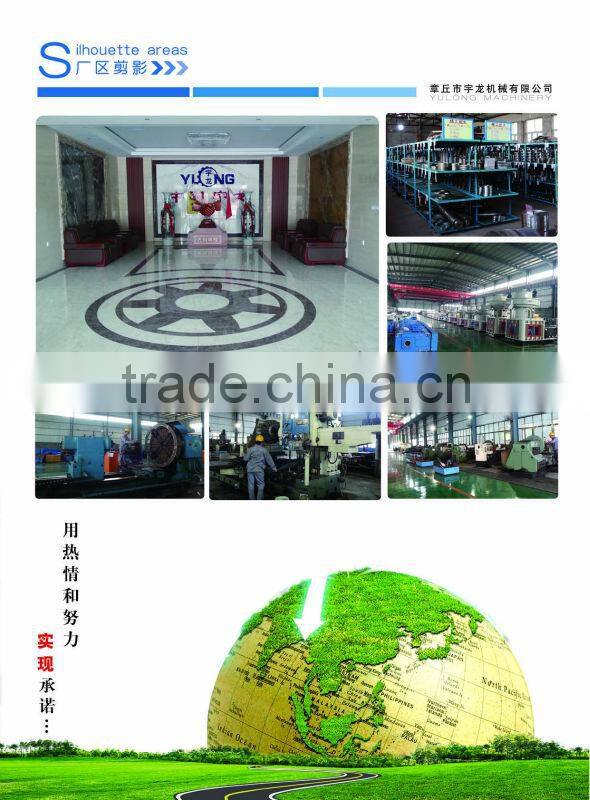

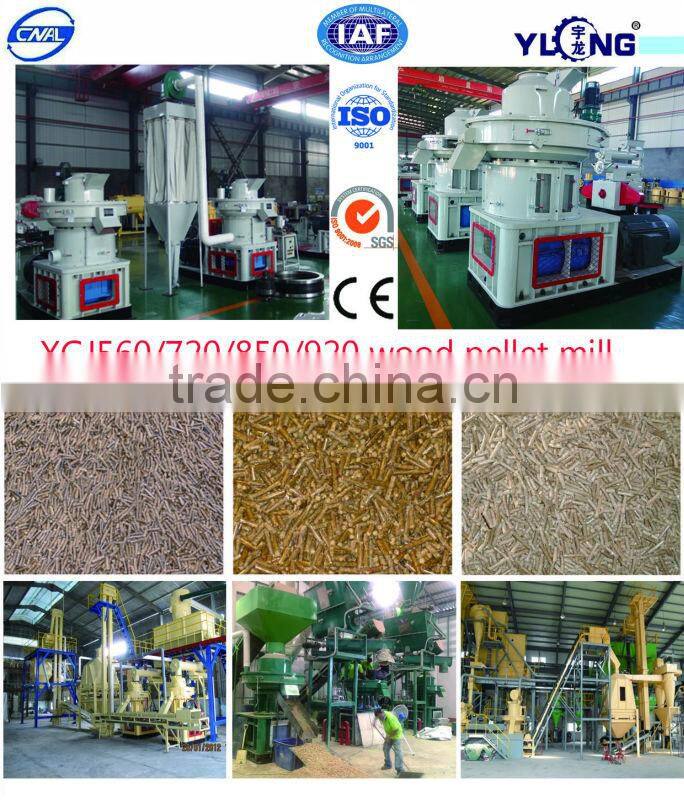

Chapter 3:Sample pictures
Chapter 4:Contact information
Mary Wang (Sales Manager)
Zhangqiu Yulong Machine Co.,Ltd
ADD: Xiuhui Town, Zhangqiu, Jinan, Shandong Province, China
Mobile: +86-18678866216
Whatspp,Viber: +86-18678866216 Skype: marywang0103
Biomass: www.woodpelletmill.net
