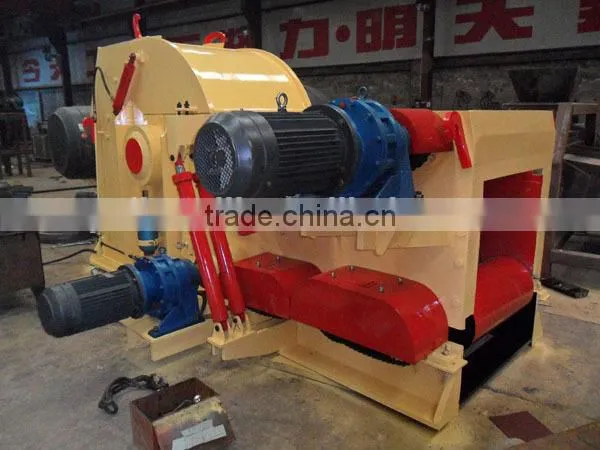

Help Center15-25t/h Drum Wood Chipper/wood Chipping Machine
Related Products
-
Mobile Wood Chipping Shredder Machine10-20t/hUS$ 1,000 - 800,000MOQ: 1 Set -
Mobile Wood Chipper for Garden TractorUS$ 1,200 - 360,000MOQ: 1 Set
-
GX218 Used Wood Chippers for SaleUS$ 1 - 2MOQ: 1 Set
-
Electric Wood Chipper 3-point (45CM)US$ 1,000 - 7,800,000MOQ: 1 Set
-
GX216 Drum Wood Chip CrusherUS$ 900 - 160,000MOQ: 1 Set
Specifications
1drum wood chipper/wood chipping machine 15-25t/h2.cruch big logs to chip:2-5cm
3.CE,ISO9001
4.feed door:350*800mm
5.220kw
We produce biomass pellet making line machines, such as wood logs debarking machine, wood logs splitter, wood sawdust making machine ,wood chipper, hammer mill, grass/straw cutter , straw bale crusher ,pellet machine and briquette machine, dryer and cooler, screener, mixer , biomass pellet boiler ,pellet packing machine and all conveyors e. c. t. for wood chipper, we have two types , one is drum wood chipper, the other is disc wood chipper, for drum wood chipper/wood chipping machine/wood chips making machine details, as below :
1.drum wood chipper/wood chipping machine/wood chips making machine is mainly used to crush big wood logs or wood timber, plywood,wood branches, furniture waste into small chips ,
the thickness of last chips is 1.5mm-3mm, length and width is about 20-50mm, it is wood chips not wood shavings. by adjusting knives gap ,outlet chips dimension will be adjusted.
2.drum wood chipper/wood chipping machine /wood chips making machine contains 4m long feeding belt conveyor, when conveying logs,
the speed can be adjusted .also it can connect with outlet conveyor to transport away crushed wood chips. the wood chipper can work on the ground-- outlet conveyor at the chipper bottom, then will no need to make foundation. Also can install outlet conveyor at the behind of wood chipper , then just need to do foundation under the ground .
3.drum wood chipper/wood chipping machine /wood chips making machine knives can be renewer by knives grinder,which can grind knives newer after
certain time, no need to change knives often. The full unite contains 4m length feeding conveyor ,outlet conveyor, knives grinder, electrical control cabinet e.c .t
4.drum wood chipper/wood chipping machine /wood chips making machine has limit feeding door dimension ,for example GX2113
feed door size is 350*800mm, means raw wood logs cross section area should be smaller than 35*80cm ,
but length no limit.
5.drum wood chipper/wood chipping machine /wood chips making machine is hot selling more than 6000 sets per year , greatly welcome to ask me for details, have big discount if order large quantity.
Model |
Gx215 |
Gx216 |
Gx218 |
GX2113 |
Rotate knives(pcs) |
2 |
2 |
2 |
2 |
Feeder size(mm) |
160*400 |
230*500 |
300*680 |
350*800 |
Power(kw) |
45+3+1.5 |
55+3+1.5 |
110+5.5+1.5 |
220+7.5*2+1.5 |
Capacity(t/h) |
3-5 |
5-8 |
8-15 |
15-25 |
Chip size(mm) |
20-50 |
|||
