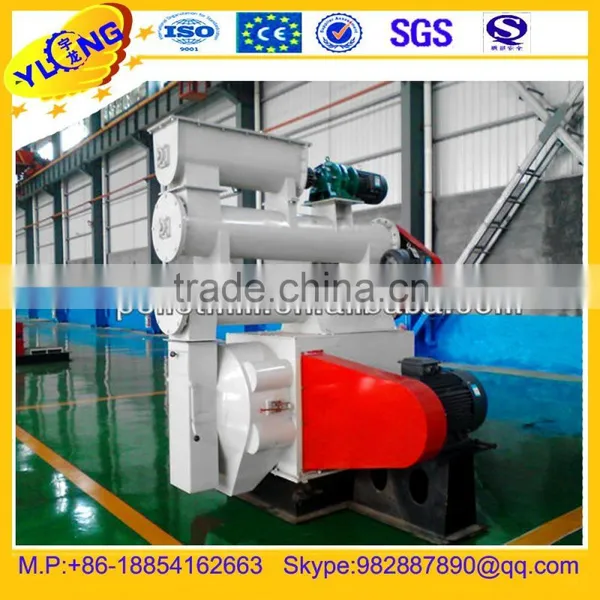

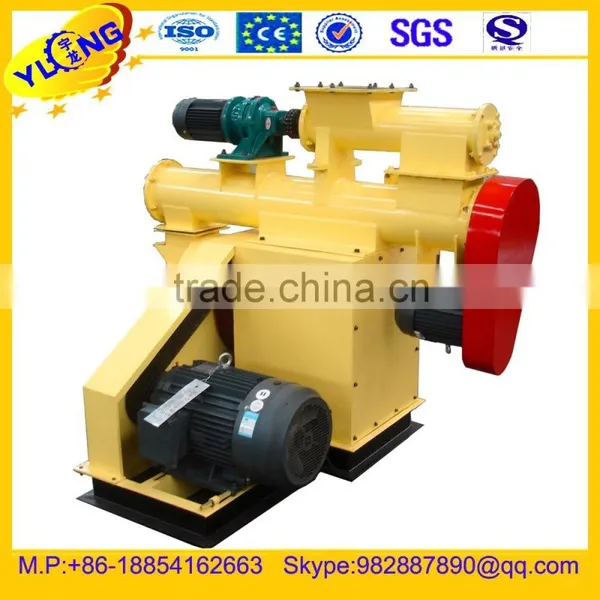

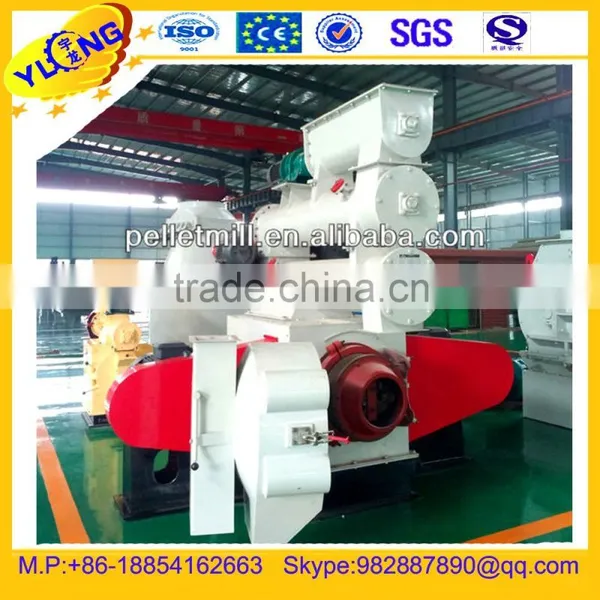

YULONG ANIMAL FEED PELLET MILL BRIEF INTRODUCTION
1. HKJ series pellet mills are the new-designed products of our company and the main parts of the fodder machinery system.
They are widely used in feed factories, breed aquatics factories, organic fertilizer factories, chemical factories,
and China traditional medicine factories, etc. It can be used together with powder material. Its capacity is superior
in the same industry home and abroad.
2. The machine has such characters as compact structure, beautiful outline, high output, low energy loss,
convenient operation, and reliable capacity etc.
3. Our company supply many different ring dies, such as φ1.5, φ2, φ2.5, φ3, φ3.5, φ4, φ5, φ6, φ8, φ10, φ12.
It can be chosen according to different requirements.
HKJ250 HKJ300
HKJ350 HKJ450
HKJ610
The meaning of model
HKJ350
H-Main specification of machine: Diameter of die
KJ-Code: abbreviation of the first letter of “Ke Li Ji”
350-Code of machine style: ring-die
Technology parameter
Model |
HKJ 250 |
HKJ 300 |
HKJ 350 |
HKJ 450 |
HKJ610 |
Capacity(t/h) |
0.5-1.5 |
1-3 |
2-5 |
3-6 |
4-8 |
Power of main motor(kw) |
22 |
37-45 |
2×30(55) |
45×2 |
55×2 |
Power of feeder(kw) |
0.55 |
0.75 |
0.75 |
1.5 |
1.5 |
Power of conditioner(kw) |
2.2 |
2.2 |
3 |
3×2 |
3×2 |
Inner diameter of die(mm) |
Φ250 |
Φ300 |
Φ350 |
Φ450 |
Φ610 |
Rotate speed of die(rpm) |
638 |
446 |
446 |
446 |
398 |
Quantity of rollers |
2 |
2 |
2 |
2 |
2 |
Out diameter of roller(mm) |
Φ103 |
Φ132 |
Φ160 |
Φ210 |
Φ248 |
Rotate speed of feeder(r/min) |
12--120 |
||||
Rotate speed of modulator(r/min) |
360 |
||||
Pellet spec(mm) |
Φ1.5 ,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ4.5, Φ5,Φ6,Φ8,Φ10,Φ12
|
||||
Pressure of steam(Mpa) |
0.1-0.4 |
||||
Steam using(t/h) |
≥0.1-0.3 |
||||
Temperature of steam(℃) |
130~150 |
||||
