TYJ860-II with Automatic lubrication system is a new designed which is a kind of straw pellet mill,rice husk pellet press

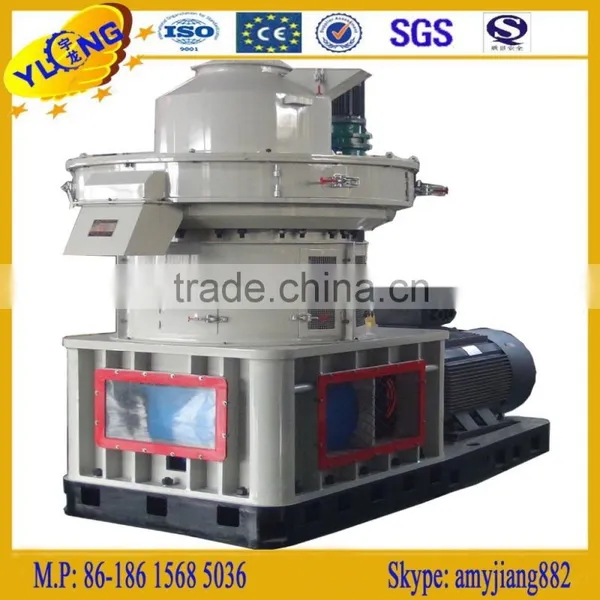

Vertical ring die pellet mill,pellet machine,pellet press TYJ860-II with Automatic lubrication system
Higher Capacity:2.5-3Ton/Hour!!!
1.Advance Equipment:
1.Professional Heat Treatment
2.German Four-shafts Gun Drilling
3. Japanese Continuous Quenching Furnace
4. American Abar Ipsen Vacuum Quenching Oven
2.Details:
1).Origin:China
2).Condition:New
3).Certificate: CE Certificate
4).Brand: Tony(we can also do the OEM)
5).Useful: For Sawdust,straw,rice husk,alfalfa,palm,rubber tree and other biomass .
6).Moisture of the raw material demand:10-15%
7).Pellet Size:4-20mm
8).Pellet Length:adjustable
9).Service:Engineers Available to the buyer's country to guide the installation and training.
3.Feature:
1).vertical feeding directly in place
2) .die static, roller rotating, materials centrifugal, Evenly distributed around.
3). double-layer dies, up and down dual-use.
4). one die, different hole diameter, with different specifications to pelletize
5). A.Automatic lubrication system for rollers (To insure the pellet mill can run 20 hours without resting)
B. Automatic lubrication system for spindles.
4.Main Spare Parts
1. Vertical feeding, directly in place.
2. Die is static, rollers rotary; materials are evenly distributed around, because of centrifugal force.
3. Double layer die.:Two layers both can be used independently so the machine reduces the cost; What’s more, two layers of the die also can be used at the same time, in this way, the efficiency has been improved greatly, high capacity and save energy.
4.Ring die and vertical structure are good for cooling the pelletizing room.
5.Independent and frequency conversion discharge device can ensure the rate of pellet formation.
Model |
Output(t/h) |
Power(kw) |
size(mm) |
XGJ560 |
1-1.5 |
90+1.5+0.37+1.5 |
4-10 |
XGJ720 |
1.5-2.5 |
160+1.5+0.37+1.5 |
4-10 |
XGJ850 |
2.5-3 |
220+3+0.55+2.2 |
4-10 |
XGJ920 |
3-4.5 |
315+5.5+3+0.55+1.5+3 |
4-10 |
XGJ1050 |
5-6 |
315+5.5+0.37+1.5+3(2-1050) 450+5.5+0.55+1.5+3(3-1050) |
4-10 |
XGJ1250 |
7-8 |
550-660 |
4-10 |
7. Required:
A.What capacity would your prefer?-----The capacity for vertical ring die pellet mill model TYJ550-II is 1.5-2TON per hour.
B.What is your raw material?-----According to different raw material(such as hard wood,soft wood,straw,rice hust), capacity is different.
C.W
