Specifications
1wood chipper hammer mill2.crush wood chips,shavings,straw into powder
3.CE,ISO9001
4.37kw

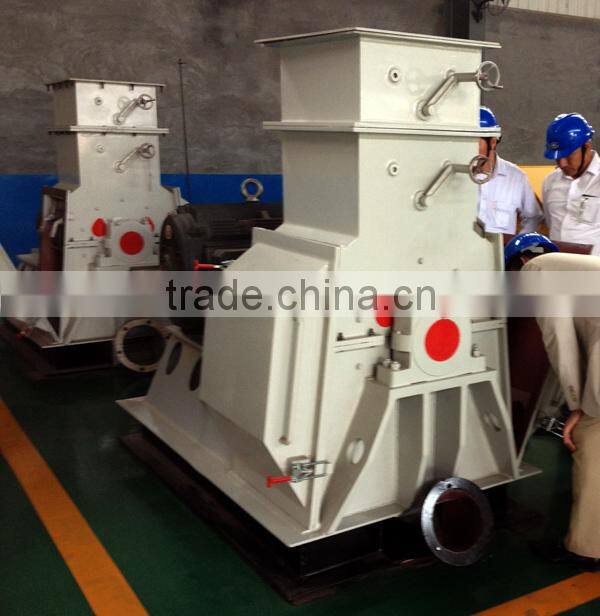

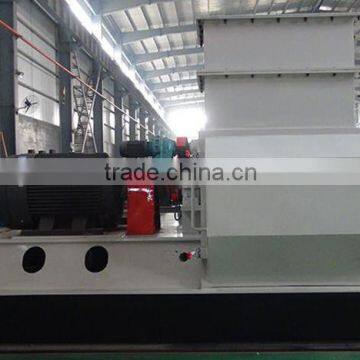

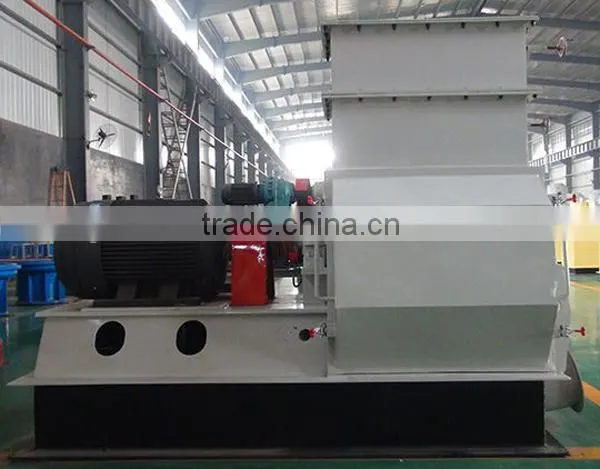

We mainly produce biomass pellet making line machines such as wood logs splitter, wood logs debarker, wood chipper, straw bale crusher, grass cutter, hammer mill, pellet machine and briquette machine, dryer and cooler, pellet packing machine and all conveyors e.c.t . Our factory has more than 15 years history, CE and ISO9001 high quality certificate,For wood chipper hammer mill details , as below :
1.Wood chipper hammer mill can crush all kinds of biomass waste into fine powder , such as wood chips, wood shavings, straw, stalk e.c.t also can crush animal feed materials, such as corn, weeds, soybean, maize, cereal. After crushed, will
get smaller than 2mm powder, Now it is mainly used in animal feed factory, wood factory, Chemical industry and so on.
2. There is one screener sieve installed at the wood chipper hammer mill bottom, the crushed powder will
outlet from bottom screener hole, generally if raw humidity smaller than 20% ,
we will install 2-4mm sieve , then will outlet smaller than 4mm dimension powder. If raw humidity is very large, we will install 10-30mm hole screener or even don’t install screener.
3wood chipper hammer mill key spare parts hammers and screener are made by our CNC systems,
through high technical heat treatment , standing out from other suppliers is that we could ensure its high precision and good quality.

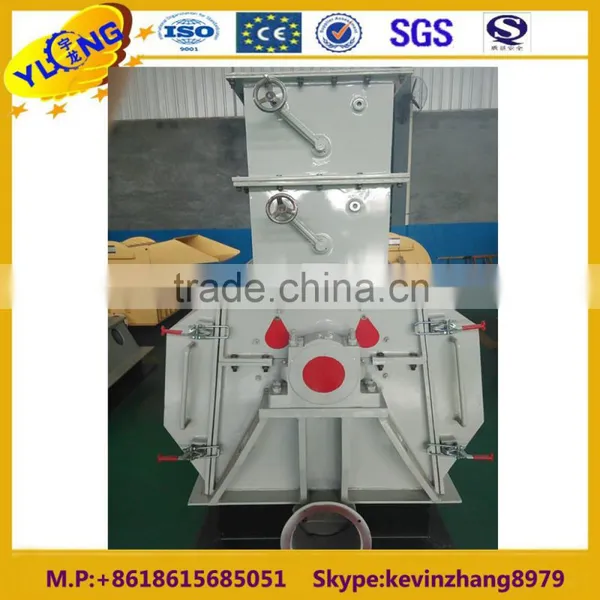

4. Wood chipper hammer mill has two big screeners at each side and can outlet powder from large scope screener hole , which makes high capcaity production, also there is opending side door switch installed at two sides, which makes inspecting and repairing process very easily .

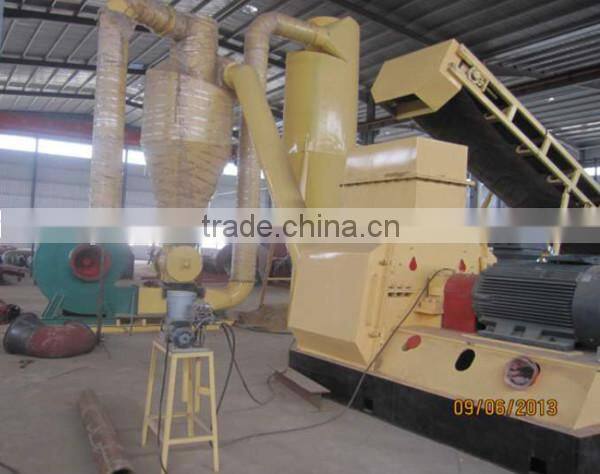

5. Wood chipper hammer mill works connect with air fan and cyclone, for biomass materials, the crushed powder will go to cyclone and outlet from cyclone bottom, for fertilizer materials or animal feed materials , powder will outlet directly from hammer mill bottom. Also it can work connect with bags filter ,which is used to clean dust.
6. Wood chipper hammer mill is hot selling more than 4000 sets per year,
greatly welcome to ask me for details. We have big discount at this moment .
Model | Power (kw) | Capacity (ton/h) | |||||
Cereal, manure | Biomass | ||||||
Single shaft | |||||||
GXP65*27 | 22-37 | 1-3 | 0.5-1 | ||||
GXP65*55 | 37-55 | 2-4 | 1-2 | ||||
GXP65*75 | 55-75 | 3-8 | 2-3 | ||||
GXP65*100 | 110 | 5-10 | 3-4 | ||||
GXP130*55 | 160 | 8-15 | 4-5 | ||||
GXP130*100 | 220 | 10-20 | 5-8 | ||||
Double shaft | |||||||
GXP-SS90*2 | 90*2 | 7-12 | 3-4 | ||||
GXP-SS110*2 | 110*2 | 10-15 | 4-5 | ||||
GXP-SS132*2 | 132*2 | 12-18 | 5-6 | ||||
