Chapter 1:Brief Introduction to YULONG machine
Zhangqiu Yulong Machine Co.,Ltd,a hi-tech organic fertilizer making equipments manufacturer,was established in 1998 which have developed into a group enterprise whose business integrates scientific research,manufacturing,training and international trade.
Professional in complete organic fertilizer pellet/granule production line supplying.Main products include WLJ series centrifugal fertilizer granulator,
disc granulator,pellet press,ball granule shaper,fertilizer chain crusher,fertilizer dryer,rotary screener,multigrade separator,cooling machine,fertilizer mixer machine,
fertilizer bagging machine,bucket elevator,belt conveyor,hydraulic rolling silo...
All the above equipments approved by SGS,CE&ISO9001 and Chinese government organization.
YULONG brand fertilizer pellet/granule making equipments have been exported to Europe,US,Australia,Canad,
South east Asia,Japan,South Korea,Middle east,South Africa etc.from 1998.
Also setting four oversea service and sells centers in Poland,Bulgaria,Thailand,Malaysia,respectively.
Chapter 2:introduction to WLJ series feed pellet mill
1).Summary
We have specialized in R&D organic fertilizer equipment 15 years,since established in 1998and have got many innovation in this field.
The WLJ series organic fertilizer granulator is our latest innovation which have been patented by the National Patent office.
The WLZL adopt special granulating theory,which is low consumption but high efficiency.
2).Working theory:
The inner rotor of WLJ series organic fertilizer granulator rotate centrifugally with high speed,when it working.
At the same time the powder material is fed into the inner rotor by the frequency screw automatically.
Under the action of centrifugal force,the powder material rotate centrifugally with high speed in the cylinder
creating enormous friction and high temperature,in which condition
the organic powder material will have adhesiveness and be formed to ball shape.
3).Main characteristics
1. WLJ Organic fertilizer granulator adopts special shaping and granulating theory, no need die pelletizing,
so the processing cost is low and efficiency is high.
2. The final granule produced by WLJ Organic fertilizer granulator have smooth surface,high uniform size,good fluidity,high density etc.
3. The temperature reach to 60-100 °C in the granulating cylinder when the WLJ granulator working,which will reducing the drying cost greatly.
4.The formation rate of WLJ granulator >95%,which have been approved by ISO9001 and other authorities .
5.The using cost of WLJ fertilizer granulator is very low compare to other die pelletizing granulator.
3).Specification
Model |
Power(kw) |
External Diameter(mm) |
Length(mm) |
Capacity(t/h) |
WLJ600 |
45 |
630 |
4400 |
1-1.5 |
WLJ800 |
75 |
820 |
4500 |
1.5-2 |
WLJ1000 |
110 |
1020 |
4500 |
2-2.5 |
WLJ1200 |
132 |
1220 |
4500 |
2.5-3 |
WLJ1400 |
160 |
1420 |
4500 |
3-3.5 |
Note:The above capacity is for fermented manure and agr-waste powder.It’s varying a little for deferent material.

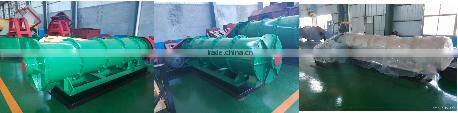

4).Sample pictures
