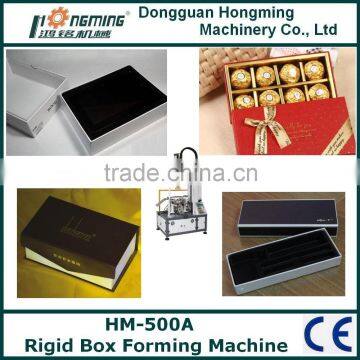

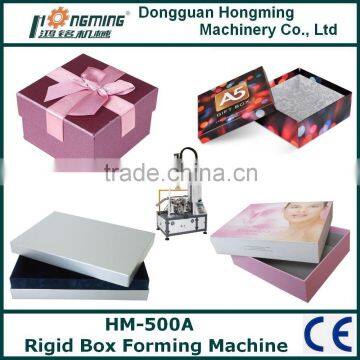

HM-500A Automatic Rigid Box Forming Machine
HM-500A Automatic Rigid Box Forming Machine description:
HM-500A Automatic Rigid Box Forming Machine is available in wrapping and folding the paper edge for rigid box, fancy box, and cardboard box, ect.
- It applies servo motor and PLC control
- The adjusting of the 4 sides is controlled by screw, thus more precise and easier.
- The electric parts apply international brand. Low malfunction and high accuracy.
- With alarm functions display on screen.
- With emergency stop switch.
- When the machine is working, the maximum height could be 3200mm.
HM-500A Automatic Rigid Box Forming Machine Technical parameters:
Model |
HM-500A |
HM-320 |
Box Size Max. |
500x400x120mm |
300x200x120mm |
Box Size Min. |
80x60x10mm |
45x45x10mm |
Folding-in Depth (R) |
10-60mm |
10-60mm |
Power |
2.2kW |
2.2kW |
Speed |
10-25pcs/min |
10-27pcs/min |
Voltage |
AC220V |
AC220V |
Air pressure |
0.6MPa |
0.6MPa |
Net Weight |
960kg |
860kg |
Machine Dimension |
1180x920x2000mm |
980x720x2000mm |

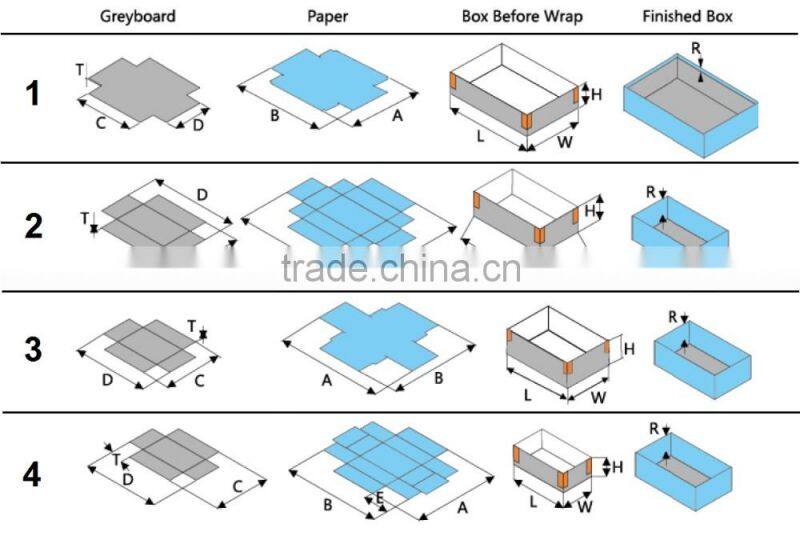

HM-500A Automatic Rigid Box Forming Machine Process:

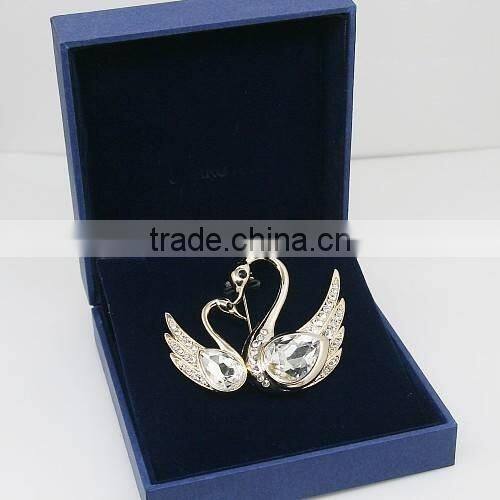

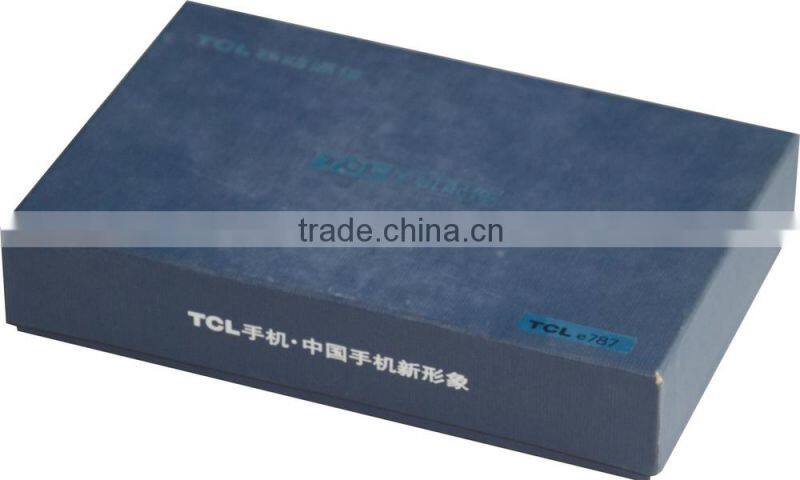

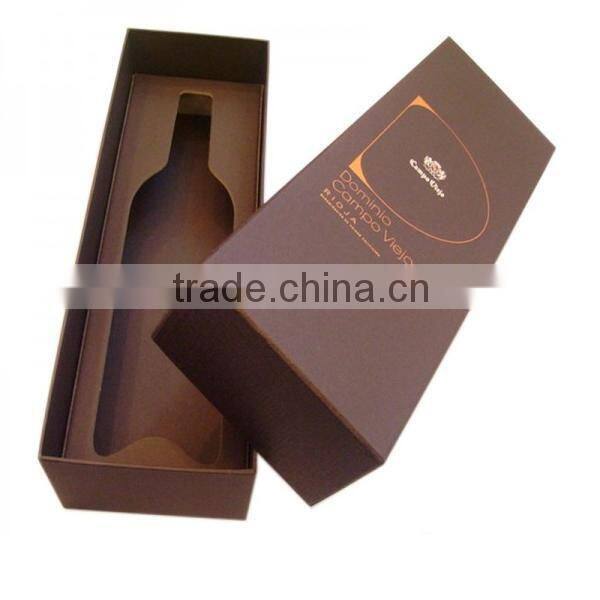

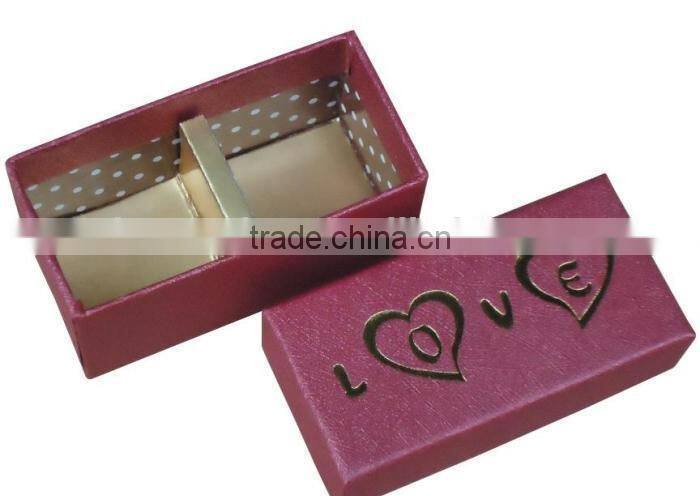

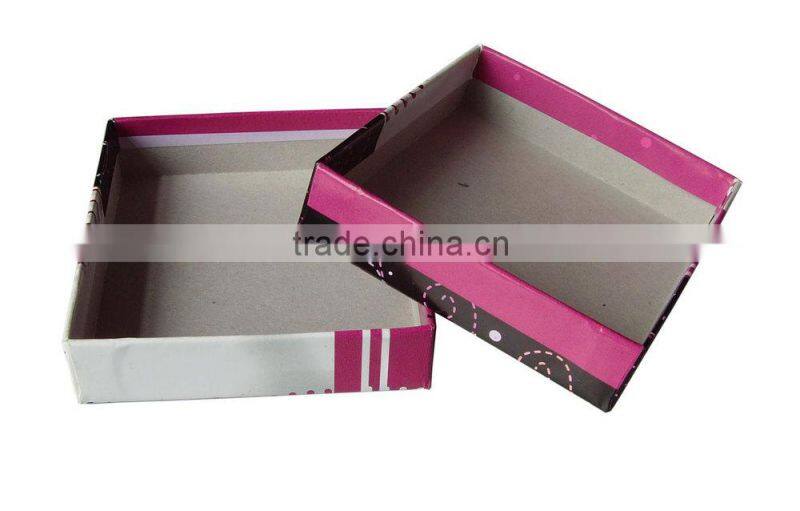

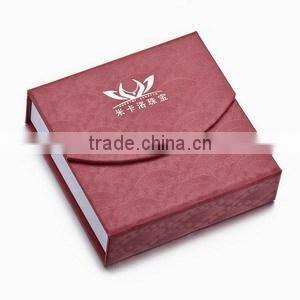

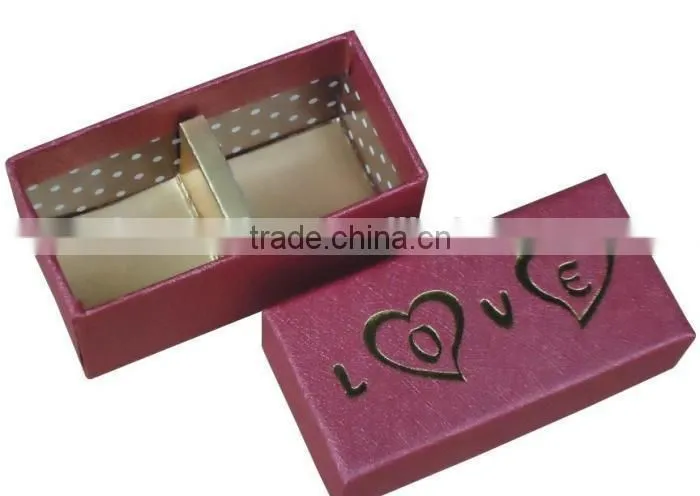

HM-500A Automatic Rigid Box Forming Machine 's outputs: paper boxes, cardboard boxes
HM-500A Automatic Rigid Box Forming Machine Family: HM-TDG500
