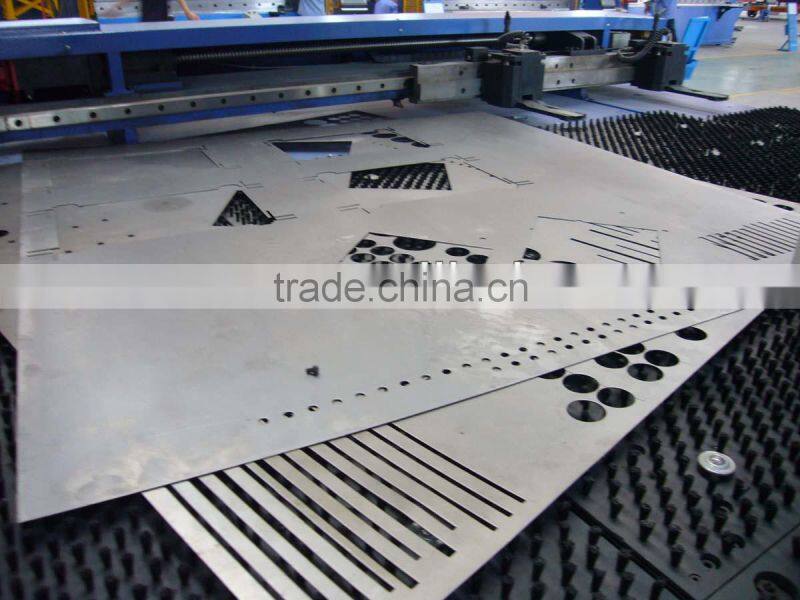

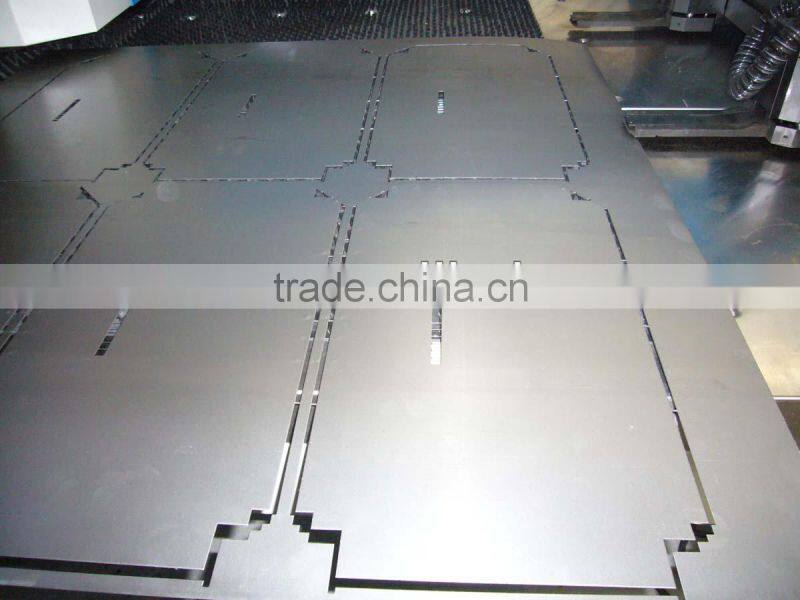

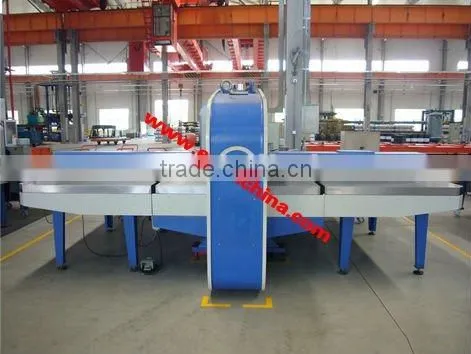

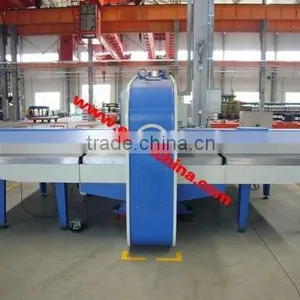

HT30D CNC Hydraulic Turret Punch Press

1

Model

EMM HT30D

2

Punching force

300             KN

3

Max. punching diameter

Æ88.9             mm

4

Max. sheet size(One reposition)

1500*5000       mm

5

Max. sheet thickness

6                mm

6

Max. sheet weight

150               kg

7

Machining accuracy

±0.1             mm

8

Repeat positioning accuracy

±0.02             mm

9

Ram stroke

30               mm

10

Punching frequency

  600/*900           h.p.m

11

Max. positioning speed (simultaneous)

112             m/min

12

X-Axis traverse length

1250             mm

13

Y-Axis traverse length

1250             mm

14

Turret rotation

30               r.p.m

15

Number of tool stations

(Including 2 index stations)

32

16

CNC system

FANUC OI-PC

17

CNC system configure

10.4²Color monitor

RS232C interface

256K content

18

Main motor power

11               kW

19

Electrical energy(AC 380V )

30               KVA

20

Compressed air

0.2 m3/min    0.55 Mpa

21

Machine dimensions(approx)

5210×4000×2110   mm

22

Machine weight(approx)

19               tons
