Specifications
CNC hydraulic punch press with high accuracy and efficiency has integrated most advanced technologies in the world.HT30A CNC Hydraulic Turret Punch Press
CNC hydraulic punch press with high accuracy and efficiency has integrated most advanced technologies in the world. A perfect combination of newest control technology and conventional mechanism. It is ideal equipment in numerically controlled metal fabrication industry with good features such as high automation, high productivity, and stable feature, safe and reliable.
TECHNICAL SPECIFICATIONS FOR HT30D
1 | Model | EMM HT30D |
2 | Punching force | 300 KN |
3 | Max. punching diameter | Æ88.9 mm |
4 | Max. sheet size(One reposition) | 1500*5000 mm |
5 | Max. sheet thickness | 6 mm |
6 | Max. sheet weight | 150 kg |
7 | Machining accuracy | ±0.1 mm |
8 | Repeat positioning accuracy | ±0.02 mm |
9 | Ram stroke | 30 mm |
10 | Punching frequency | 600/*900 h.p.m |
11 | Max. positioning speed (simultaneous) | 112 m/min |
12 | X-Axis traverse length | 1250 mm |
13 | Y-Axis traverse length | 1250 mm |
14 | Turret rotation | 30 r.p.m |
15 | Number of tool stations (Including 2 index stations) | 32 |
16 | CNC system | FANUC OI-PC |
17 | CNC system configure | 10.4²Color monitor RS232C interface 256K content |
18 | Main motor power | 11 kW |
19 | Electrical energy(AC 380V ) | 30 KVA |
20 | Compressed air | 0.2 m3/min 0.55 Mpa |
21 | Machine dimensions(approx) | 5210×4000×2110 mm |
22 | Machine weight(approx) | 19 tons |

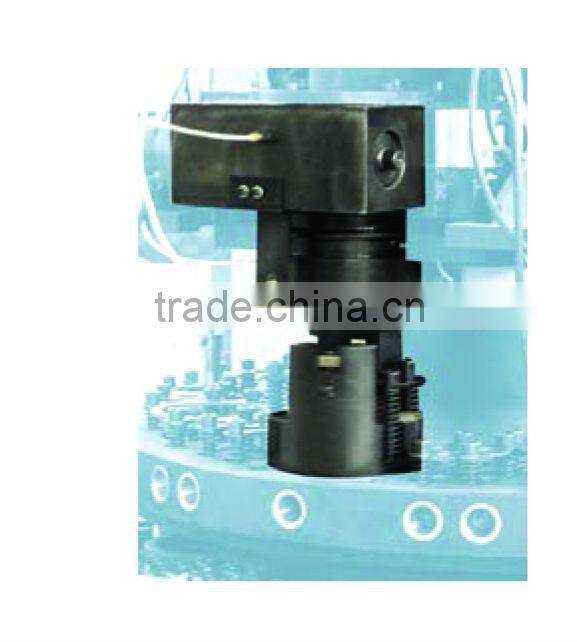

Auto-index stations rotation
The 2 Auto-index stations are of featured worm and wheel construction and eliminate the clearance. Auto-index stations quickly rotated to any angle position while the sheet is be positioned .The rotation can be made arbitrarily for a bigger working range and to reduce the demanding tooling for saving working times and set-up work.
The controlling system

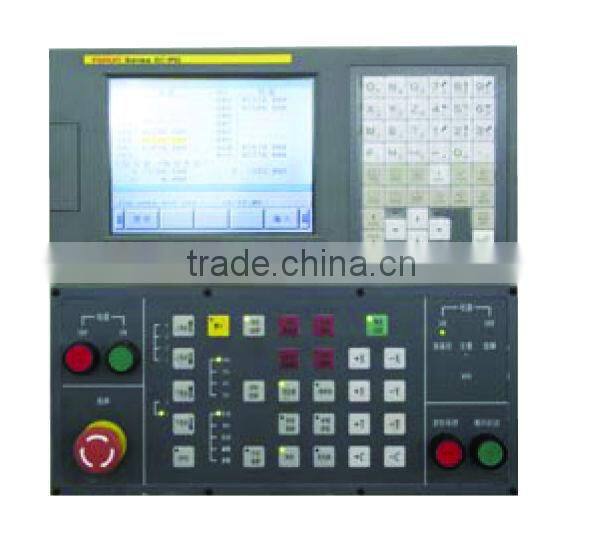

The machine takes the world-famous FANUC or SIEMENS control system and AC servo system. Features: Universal RS232 standard interface, Chinese and English text are available, mighty diagnostic function, Gripper and punching head auto protection, The international universal G code program. On line data transfer reduces down time and raises productivity.
Hydraulic system

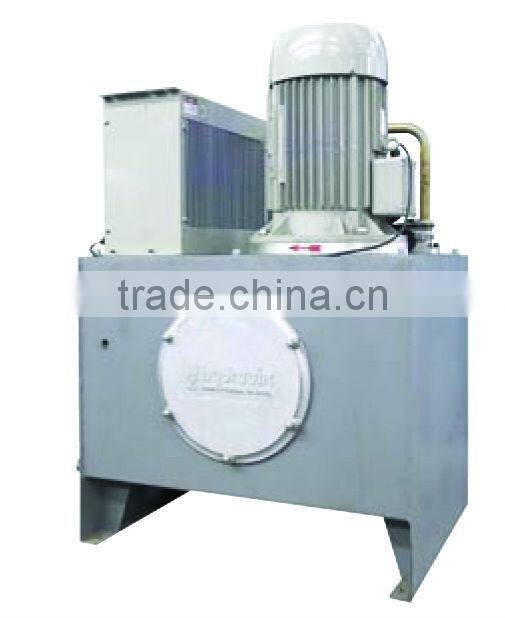

The machine takes the world-famous German H+L whole hydraulic system .It is safe , reliable , noise-low and automatic hydraulic overload protection with a stable punching force in the complete stroke. German H+L whole hydraulic system ensures the machine to be reliable and has high performance of power, reduces vibration and noise.
