Specifications
Wireless DMX controller:1. Small Size
2. 300Meters signal communication
3. powerful but econormical
Wireless DMX512 receiver/transmitter
Description:
Wireless DMX receiver/transmitter is invented for replacing twister DMX Cable, transmiting standanrd DMX512 protocol data in wireless way, which applicated for signal transmission between DMX console and lighting, lighting and lighting, etc.
With global opening 2.4G ISM frequancy section, wireless DMX512 is reliable and transmits signal data without any time delay.
It is a econormical but powerful equipment that enjoyed very good feedbacks from subscribers.
Advantages:
1. This XRL DMX Wireless R/T is small size and capable of reliable wireless communication over 300 meters line-of-sight!
2. One XRL can be the transmitter or the receiver. - you need at least 2 units(one transmitter and one receiver) for complete operation. More receivers can work at the same time as well.
3. One year warranty—repare or replace.
4. For convenience the unit has male and female, 3 pin and 5 pin dmx plugs for your choice.
Features:
- Tricolor LED Displaying
- 126 channels jumping frenqency automaticly, high anti-jamping ability, to ensure works reliability.
- 7 groups ID code settable, User can use 7 groups individual wireless net without any interfere each other in the same place...
- Input voltage: DC12V 500mA min
- Communication distance: 300M(visible distance, it has some different based on environment.)
- Work freqency section: 2.4G ISM, 126channels. frequency section
- Max transmitting power rate: 20dBm.
- Receiver sensitive:-94dBm
- Signal port: 3pin female plug or male plug optional
Operating manual:
1. ID code and LED color corresponding relateship:
1: RED
2: GREEN
3: RED+GREEN
4: BLUE
5: RED+BLUE
6: GREEN+BLUE
7: RED+GREED+BLUE
2. Press key 1 time to indicate ID setting,,Press again to set IC,then ID value adding 1 each time. by press

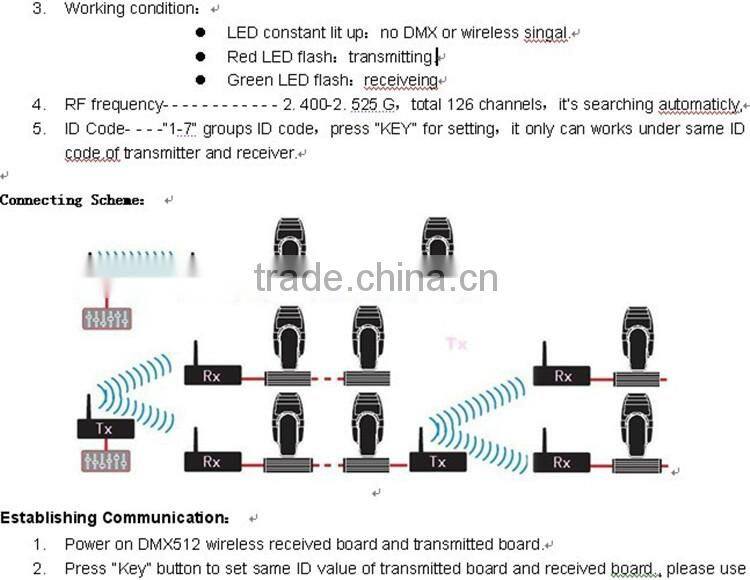

3. Working condition:
LED constant lit up: no DMX or wireless singal.
Red LED flash: transmitting.
Green LED flash: receiveing
4. RF frequency- - - - - - - - - - - - 2. 400-2. 525 G,total 126 channels,it’s searching automaticly,
5. ID Code- - - -“1-7” groups ID code, press ”KEY” for setting, it only can works under same ID code. of transmitter and receiver.
Cauction:
- Indoor use only.
- 1 year warranty, repairment, free replacement except damaged artificially
- The manufacturer willn’t offer free service in warranty period if any repaired or uncapped had happened
- It’s better to return to manufacturer if repairment is must, Don’t do any repairment unless qualified electrician.
- The working condition should be under temperature -20°C~+45°C,10%~90%RH,no congelation,so as to ensure it’s lifetime.
- It cann’t be covered by any superstratum, it should be swept periodly to prevent dust
Application:
1.Stage lighting
2.Disco hall
3.Large literature performance
4.Gymnasium lighting
5.Temporary stage performance
6.City lighting system
7.TV station
8.Conference center
fessional showplace
10Topic park
11.Bar lighting and so on.
