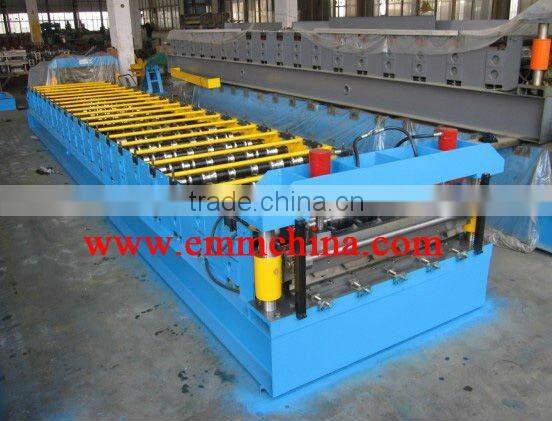

EMM-20-130-C metal currugated roofing roll forming machine
EMM-20-130-C c z purlin roll forming machine uses package sheet metal as raw material, after pulling, continuous roller cold bending forming, automatic fixed-length cutting, then make a specific shape and specifications plate.. The whole machine adopts PLC control, ac frequency conversion speed regulation technology, to realize the automatic continuous production, it is a steel structure and metal cold bending processing industry ideal production equipment.
Product specification
EMM-20-130-C c z purlin roll forming machine
No. |
Item |
Parameter |
Remark |
|
|
1
|
For raw material |
type |
Color steel tile,Galvanized Steel Coil |
|
thickness (mm) |
1.5 |
|
||
yield strength (Mpa) |
235-345 |
|
||
width (mm) |
|
The commissioning board shall prevail |
||
2 |
Rolling Speed (m/min) |
About 15-25 |
Does not include the cut off time |
|
3 |
Rolling Maim Motor Power (KW) |
5.5 |
The actual design shall prevail |
|
4 |
Hydraulic Station Power(KW) |
3 |
The actual design shall prevai |
|
5 |
Uncoiler Hydraulic Station Powe (KW) |
|
The actual design shall prevail |
|
6 |
Uncoiler Motor Power (KW) |
|
The actual design shall prevail |
|
7 |
Total power |
8.5 |
The actual design shall prevail |
|
8 |
Electric Source |
AC380V,50Hz,3 phase |
|
|
9 |
Size of the machine (L*W*H m) |
4.0×0.8×1.2 |
In kind prevail |
|
1 year quality guaranty for the main spare parts, not include quick-wears parts, like blade, punch, die and so on.
During the guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us.
If the malfunctions are caused by customer's incorrect operations, we will offer the spare parts at cost price.
Anyway, our company promises to supply the customer cost price of spare parts and provide long-term technical guide beyond the guarantee.
EMMis a comprehensive enterprise dealing economic and technology cooperation that specializes in manufacturing for metal fabrications and distributing of all types of machinery tools Including Industrial Equipment, fabricating equipment, sheet metal equipment and production line machinery.
We are not only trading with customers from domestic and oversea but also providing customers with technical, commutation and after sales support.
Our dedication to the highest quality products and services have establish excellent trade relations with customers from all over the world. EMM’s team memebers includes qualified sales specialists and highly trained technical professional to help provide quick service and the best quality of work in order to meet our customer needs
Payment terms:
1. 100% by T/T;
2. 30% deposit by T/T, the balance paid by L/C at sight;
3. 100% by L/C at sight;
4. 100% by 30, 60 or 90 days usance credit.
Delivery terms:
EX-WORS, FOB, CIF, CFR and so on
Packing method:
Steel Pallet and waterproof cloth
Delivery time:
45 working days after receiving the deposit or original L/C.
