Automatic Decompression Waste Plastic Pyrolysis Machine

Automatic Decompression Waste Plastic Pyrolysis Machine thumbnail-1
Automatic Decompression Waste Plastic Pyrolysis Machine photo-1
US$ 30,000 - 55,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
XINDA
Contact Supplier Request Quote Chat Now
Xinxiang Xinda Energy Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Main port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Henan, China
Brand Name XINDA
Model Number XD-06
Dimension(L*W*H) 2000mm*2000mm*6000mm
Certification CE&SGS&ROHS&ISO
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Waste plastic pyrolysis Machine
1.Automatic alarm when thepressure
2.Automatic feeding and slagging
3.Convenient raw material

Automatic decompression Waste plastic pyrolysis machine

 Waste plastic pyrolysis Machine

Reactor: Carbon black slag system(1pcs)               10. Ball value(1pcs/20pcs/1pcs)

Feeding hold(1pcs)                         11. Water pump(2set/self)

Built-in spiral plate                         12. Vee belt(2pcs)

Furnace(1pcs)                             13. Link pipes(2sets)

Power motor(1set)                          14. Waste gas tank(1set)

Moto reducer(1set)                         15. Chimney(1set)

Large chain drive(1set)                       16. Draft fan(1 set)

Small chain drive(1 set)                       17. Oil tank(2 set/1 set)

Furnace door(1pcs)                         18. Elbow(4 sets)

  1. Condenser(3sets)                                  19. Flange(3pcs/2pcs)
  2. Upflow tube(1set)                                20. Fire damper board(1set)
  3. Cooling tube(2sets)                                21. JDGB(50m)
  4. Oil-water separator(1set)                            22. Screw(200pcs)

6. Motor(1set)                                      23. Reversing drum switch(1set)

7. Graphite packing(1set)                              24. Electronical control box(1 set)

8. Temperature value(1set)                            25. Dedustinf system(1set)

9. Blower(1set)

 Automatic decompression Waste plastic pyrolysis machine

  Waste plastic pyrolysis Machine



Items

Contents

1

Equipment type

XD-06

XD-08

XD-10

2

Raw material

tires/Plastic/rubber

tires/Plastic/rubbrt

tires/Plastic/rubber

3

Structural form

Horizontal rotation

Horizontal rotation

Horizontal rotation

4

24-hour Capacity

6 ton

8 ton

10 ton

5

Oil yield

2.7~3 ton

3.6~4 ton

4.5~5 ton

6

Operating pressure

Normal

Normal

Normal

7

Material of reactor

Q345R

Q345R

Q345R

8

Thickness of reactor

14mm/16mm

14mm/16mm

14mm/16mm

9

Rotate speed of reactor

0.8turn/minute

0.8turn/minute

0.8turn/minute

10

Total power

20KW

20KW

20KW

11

Mode of cooling

Water cooling

Water cooling

Water cooling

12

Kind of transmission

Internal gear drive

Internal gear drive

Internal gear drive

13

Noise

≤85

≤85

≤85

14

Size of Reactor(D×L)

2000×6000

2200×6600

2600×6600

15

Working form

Intermittent operation

Intermittent operation

Intermittent operation

16

Delivery time

20days

20days

20days

17

Weight

18~22T

20~25T

25~30T



Automatic decompression Waste plastic pyrolysis machine

 Waste plastic pyrolysis Machine

Raw material

Big tyres

Car tyres

Bicycles & motorcycle tyres

Oil yield

45%-50%

40%

30%-35%

Steel wire

15%-20%

10%-15%

5%-10%

Carbon black

30%

45%

45%

Waste gas

5%-10%

5%-10%

5%-10%

* The specific rate subjects to the raw materials used. Please contact us for details.



















Automatic decompression Waste plastic pyrolysis machine

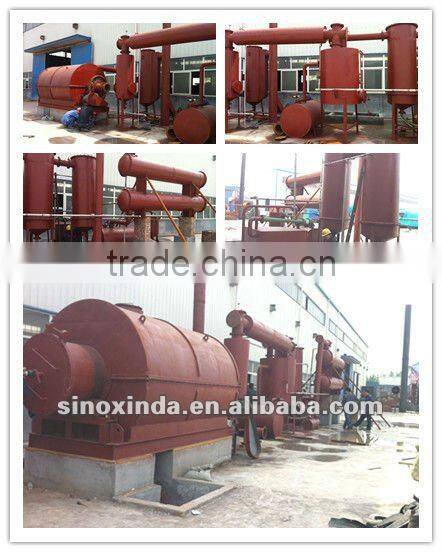

>> Structure and principle of the Waste plastic pyrolysis Machine

* whole parts

The whole pyrolysis system is composed by 16 parts,which are reactor,Insulation layer,Desulfurization,deduster,Draft fan,Chimney,Water film cyclone,Condenser,Water tank,Cooling tower(optional),Gas recycle system,Oil tank,Gas separate,Waste gas burner,Furnace,Blower,Carbon black slag system.

The keys of pyrolysis plant are reactor and cooling system.

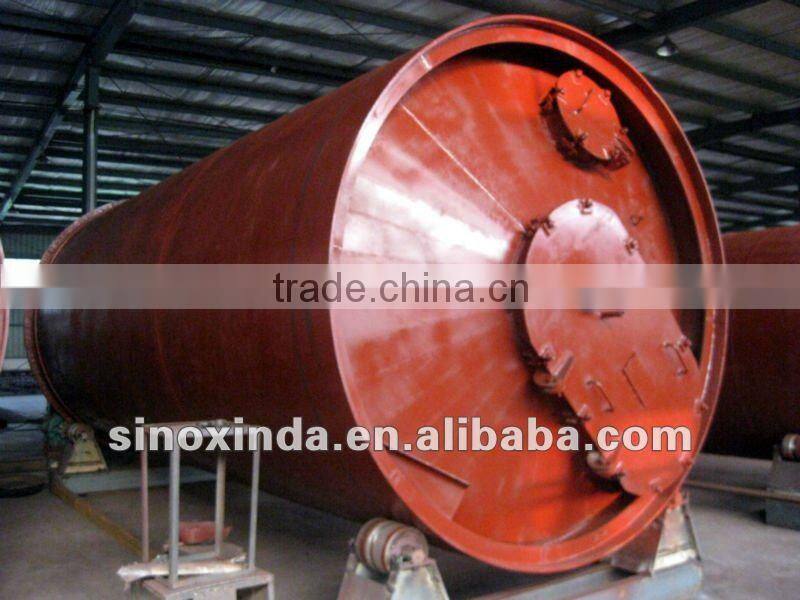

*Reactor

Reactor directly decides the machine's safety and service life. It is made by welded steel plate. So the quality of welding will have a direct impact on safety and service life. Therefore, we use automatic welding machine, X-rays detection and heating treatment which will not only guarantee the quality of welding but also greatly improve working efficiency.



>> Features of the Waste plastic pyrolysis Machine

* Safety

With an auto welding machine for the reactor, it can not only greatly improve working efficiency but also guarantee the quality of welding seam, thus avoid explosion caused by gas leak. Professional heating treatment and x-ray detection chamber are especially for welding.

Vacuum system will prevent oil gas from going back to reactor and causing accident

Professional thermometer, pressure gauge and safety valve.

It is dangerous to burn exhaust gas (C1 to C4) without any safety measures. In our process, it is transferred first through the safety device and a safety burning air muzzle. Before burning, we should ensure the safety of production.

* Environmental protection

Well water dedusting system can avoid black smoke.

The exhaust gas will be recycled for heating reactor, no gas pollution

Every junction of the reactor is in good sealing situation with professional sealing material.

* Long service life

Material: Q245R/345R special steel plate, thickness 14-16mm

Welding: Automatic welding machine with heating treatment and x-ray detection will prolong the service life of reactor to the max.

The service life of the reactor will be 5-6 years

* Energy saving



Automatic decompression Waste plastic pyrolysis machine

Waste plastic pyrolysis Machine

Usage of Final production

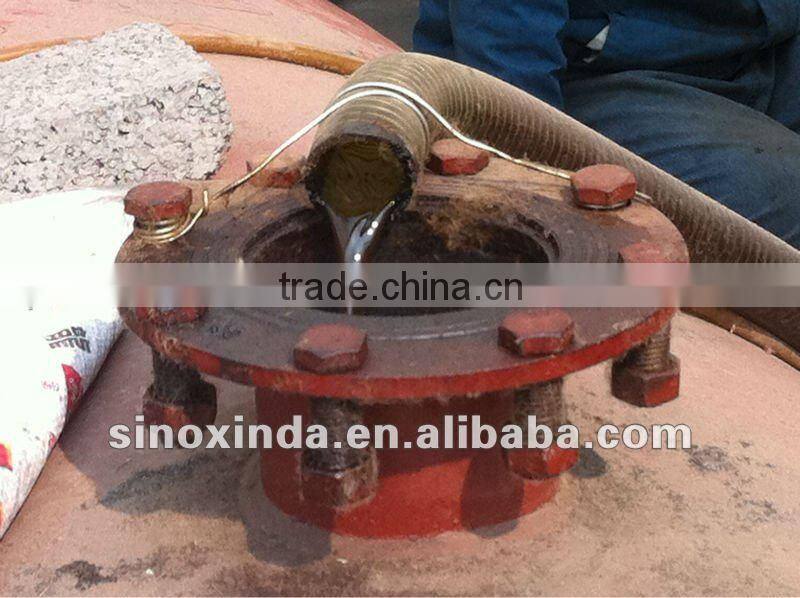

A.  The Usage of Final production--FUEL OIL

(1)Power plant factory

(2)Glass factory

(3)Cement factory

(4)Ceramic factory

(5)Aluminum factory

(6)Boiler factory

(7)Central heating factory



B. The Usage of Final production--CARBON BLACK

1. Electric cable jacketing

2. Conveyor ban

3. Hose and doormat

4. Black nylon bag

5. Rubber additive

6. Automatic spare parts
