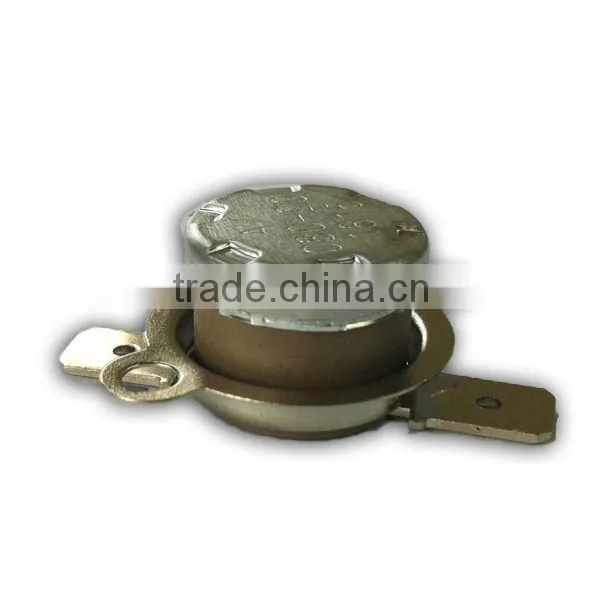

T24 15A 250V Home Appliance Bimetal Thermostat

Name: T24 15A 250V Home Appliance Bimetal Thermostat
Brand: HW, LC
Price: USD $0.2 - 0.6 / Piece

FOB Price

USD $0.2 - $0.6 / Piece

1000 Pieces(Min.Order)

Product Details

Brand Name:

HW, LC

Model Number:

4A-SF2 (LOOSE BRACKET)

T24 15A 250V Home Appliance Bimetal Thermostat

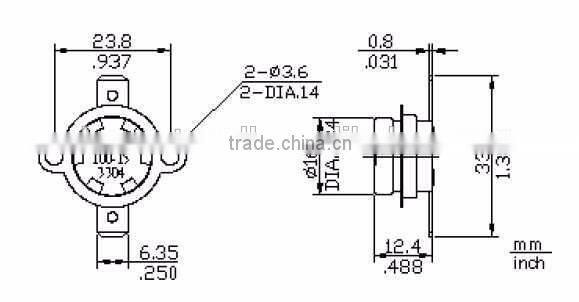

Overview:

(1) CONTACT TYPE : Contact Opens When Temperature Rises To Set Point (Normally Closed)

(2) LOOSE BRACKET S Type

(3) TERMINAL ORIENTATION : Horizontal

(4) TERMINAL SIZE: Amp#250 TAB ( 6.35mm x 0.8t mm )

(5) Housing Height: 12.4mm

Specification:

Reset Type	Automatic or Manual
Contact Type on Rise	NC
Electrical Rating	16A/250VAC 15A/125VAC 10A/250VAC
Calibration Method	1°C/min, Air circulation furnace
Operating Temp. *	40°C~ 200°C (ENEC) 40°C~ 205°C (UL/CUL)
Differential	10K ~ 65K
Temp. Tolerance	±3K/ ±5K
Heat Durability	180°C * 2Hr Max.
Circuit Resistance	50 MΩ Max.
Insulation Resistance	100MΩ at DC 500V
Dielectric Strength	AC 1000V/min or AC 1800/sec (Leak Current 0.5mA)
Operating Life	100,000 Cycles (15A/125VAC, 10A/ 250VAC) 10,000 Cycles (16A/250VAC)

* Action temp. and reset temp. can be set up depend on customer’s request

HONEST-WELL CO., LTD.: Contact nameHarold Yeh; Phone886-02-22190080; Address4/F, No. 4, Ln. 560
