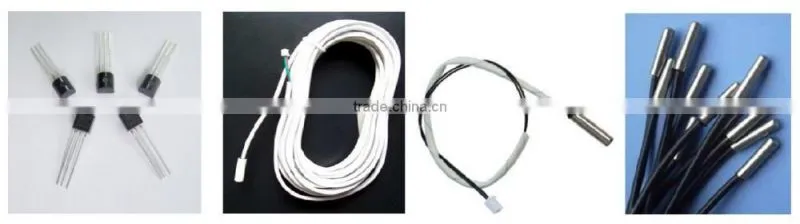

DS18B20 digital sensor:
1.Multidrop capability simplifies distributed.
2.Zero standby power required.
3.ISO9001-2000.ROHS
Specifications:
1)Multidrop capability simplifies distributed temperature sensing applications.
2)Requires no external components.
3)Can be powered from data line. Power supply range is 3.0V to 5.5V
4)Zero standby power required
5)Measures temperatures from -55°C to +125°C.
Fahrenheit equivalent is -67°F to +257°F
6)Accuracy : ±0.5°C accuracy from -10°C to +85°C
7)Thermometer resolution is programmable from 9 to 12 bits
8)Converts 12-bit temperature to digital word in 750 ms (max.)
9)User-definable, nonvolatile temperature alarm settings DS18B20Z
10)Alarm search command identifies and 8-Pin SOIC (150 mil)
addresses devices whose temperature is outside of programmed limits (temperature PIN DESCRIPTION alarm condition)
11)Applications include thermostatic controls, DQ - Data In/Out
industrial systems, consumer products, VDD - Power Supply Voltage
thermometers, or any thermally sensitive NC - No Connect system
12)The DS18B20 Digital Thermometer provides 9 to 12-bit (configurable) temperature readings which indicate the temperature of the device. Information is sent to/from the DS18B20 over a 1-Wire interface, so that only one wire (and ground) needs to be connected from a central microprocessor to a DS18B20.
13)Power for reading, writing, and performing temperature conversions can be derived from the data line itself with no need for an external power source.
14)Because each DS18B20 contains a unique silicon serial number, multiple DS18B20s can exist on the same 1-Wire bus. This allows for placing temperature sensors in many different places. Applications where this feature is useful include HVAC environmental controls, sensing temperatures inside buildings, equipment or machinery, and process monitoring and control.
