Home > Electrical & Electronics > Sensor > Pressure Sensor > Water Heater and Hot Water Supply NTC Temperature Sensor

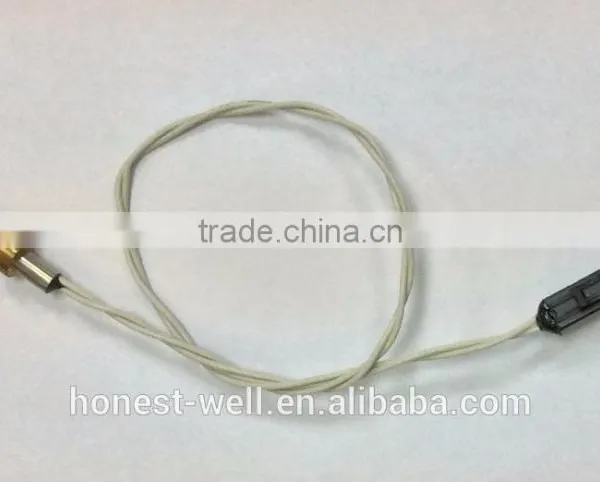

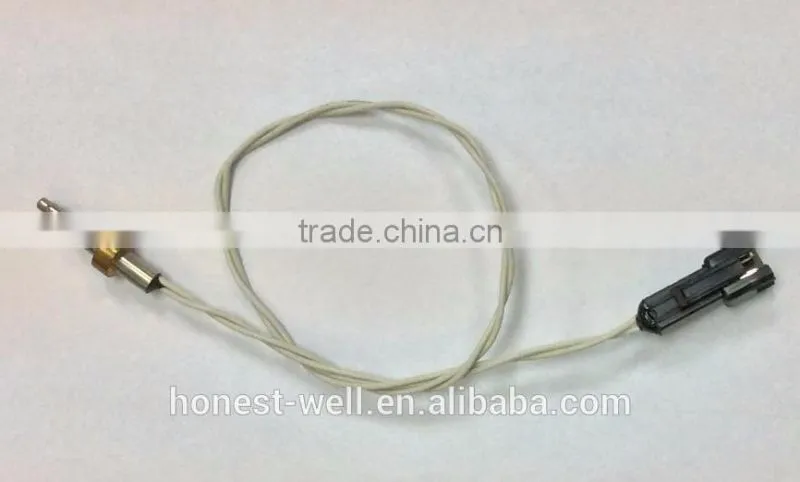

Water Heater and Hot Water Supply NTC Temperature Sensor
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
HW
Model Number:
CWF51-3485H3450GW-RF-E
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Epoxy Type Low Temperature NTC SensorNegotiableMOQ: 1000 Pieces -
Thermos Jug Temperature Ntc SensorUS$ 0.5 - 1MOQ: 1000 Pieces
-
Lug Type Surface Temperature Measuring NTC SensorUS$ 0.5 - 1MOQ: 1000 Pieces
-
Room Heater NTC Temperature SensorNegotiableMOQ: 1000 Pieces
-
Refrigerator NTC Thermistor SensorUS$ 0.1 - 1MOQ: 1000 Pieces
Place of Origin
Taiwan, China
Brand Name
HW
Model Number
CWF51-3485H3450GW-RF-E
Usage
Temperature Sensor
Theory
Resistance Sensor
Output
Digital Sensor
Water Heater and Hot Water Supply NTC Temperature Sensor
Product Description
NTC sensors used in hot water supply and water service equipment must be able to withstand hot, humid environments. Our NTC sensors provide outstanding moisture resistance.
To prevent electric erosion, our sensors feature the optimal selection of sensor protecting tubes materials—copper, chrome-plated copper, stainless steel and others. Shibaura can also provide liquid level sensors and flow sensors for other water-related applications
| RATING | |
| Rated zero-power resistance | R50 : 3.485KΩ ±3% (at 50℃) |
| B value | B0/100: 3,450K ±2% |
| *The B value is calculated using the zero-power resistance values measured at 0℃ and 100℃. | |
| Dissipation Factor | Approx. 4mW/℃ (in stirred water) |
| Thermal time constant | Approx. 12s (case immerses in stirred water from 0℃ to 45℃) |
| Maximum power rating | 10mW (at 25℃) |
| Oprating temperature | -30℃-150℃ |
| Maximum temperature | 200℃ (Induction heat section*1 hour) |
