3MM FLANGLESS LED Lamp

Name: 3MM FLANGLESS LED Lamp
Brand: HW
Price: Negotiable

FOB Price

Negotiable / Bag

4000 Bags(Min.Order)

Product Details

Place of Origin:	Taiwan	Brand Name:	HW	Model Number:	L304XX
Type:	LED

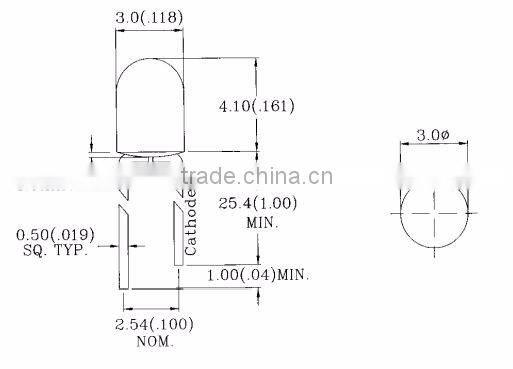

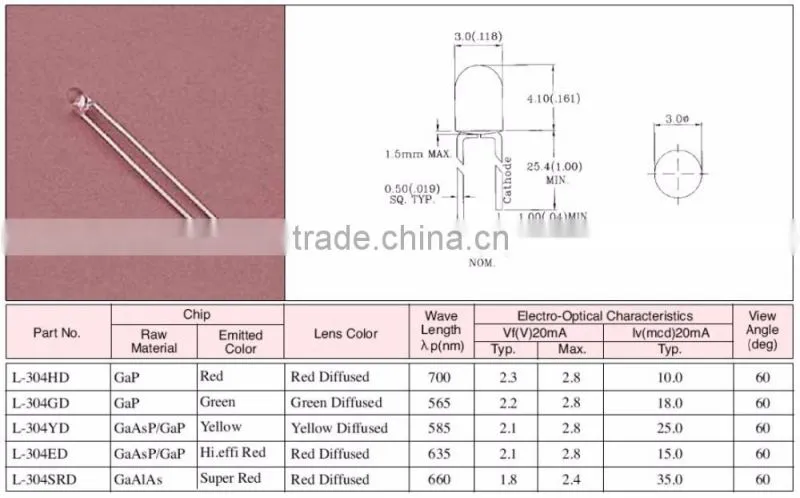

3MM FLANGLESS LED

Part No.	Chip		Lens Color	Wave Length	Electro-Optical Characteristics			View Angle (deg)
	Raw Material	Emitted Color		λp(nm)	Vf(V)20mA		lv(mcd)20mA
	Raw Material	Emitted Color			Typ.	Max.	Typ.
L-304HD	GaP	Red	Red Diffused	700	2.3	2.8	10	60
L-304GD	GaP	Green	Green Diffused	565	2.2	2.8	18	60
L-304YD	GaAsP/GaP	Yellow	Yellow Diffused	585	2.1	2.8	25	60
L-304ED	GaAsP/GaP	Hi.effi Red	Red Diffused	635	2.1	2.8	15	60
L-304SRD	GaAIAs	Super Red	Red Diffused	660	1.8	2.4	35	60
