3mm 12V 20mA LED Lamp

Name: 3mm 12V 20mA LED Lamp
Brand: HW
Price: Negotiable

FOB Price

Negotiable / Bag

5000 Bags(Min.Order)

Product Details

Place of Origin:

Taiwan

Brand Name:

Model Number:

L314XX

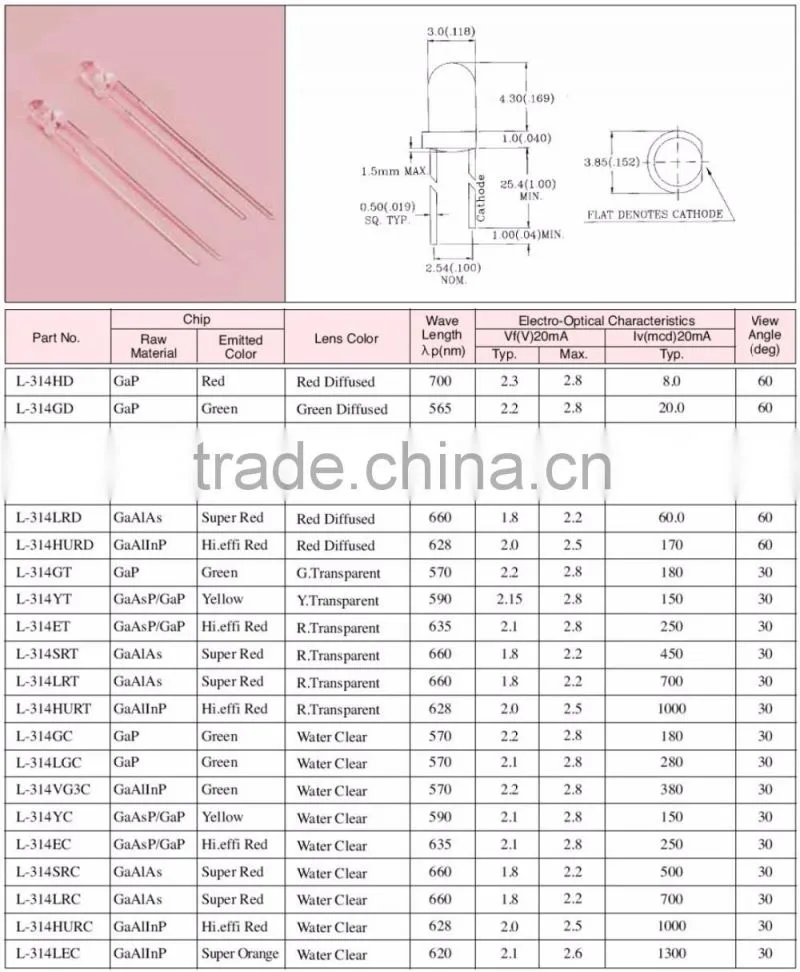

3mm 12V 20mA LED Lamp

Part No.	Chip		Lens Color	Wave Length λp(nm)	Electro-Optical Characteristics			View Angle (deg)
	Raw Material	Emitted Color			Vf(V)20mA		lv(mcd)20mA
	Raw Material	Emitted Color			Typ.	Max.	Typ.
L-314HD	GaP	Red	Red Diffused	700	2.3	2.8	8	60
L-314GD	GaP	Green	Green Diffused	565	2.2	2.8	20	60
L-314YD	GaAsP/GaP	Yellow	Yellow Diffused	590	2.15	2.8	15	60
L-314ED	GaAsP/GaP	Hi.effi Red	Red Diffused	635	2.1	2.8	25	60
L-314SRD	GaAIAs	Super Red	Red Diffused	660	1.8	2.2	50	60
L-314LRD	GaAIAs	Super Red	Red Diffused	660	1.8	2.2	60	60
L-314HURD	GaAIInP	Hi.effi Red	Red Diffused	628	2	2.5	170	60
L-314GT	GaP	Green	G.Transparent	570	2.2	2.8	180	30
L-314YT	GaAsP/GaP	Yellow	Y.Transparent	590	2.15	2.8	150	30
L-314ET	GaAsP/GaP	Hi.effi Red	R.Transparent	635	2.1	2.8	250	30
L-314SRT	GaAIAs	Super Red	R.Transparent	660	1.8	2.2	450	30
L-314LRT	GaAIAs	Super Red	R.Transparent	660	1.8	2.2	700	30
L-314HURT	GaAIInP	Hi.effi Red	R.Transparent	628	2	2.5	1000	30
L-314GC	GaP	Green	Water Clear	570	2.2	2.8	180	30
L-314LGC	GaP	Green	Water Clear	570	2.1	2.8	280	30
L-314VG3C	GaAIInP	Green	Water Clear	570	2.2	2.8	380	30
L-314YC	GaAsP/GaP	Yellow	Water Clear	590	2.1	2.8	150	30
L-314EC	GaAsP/GaP	Hi.effi Red	Water Clear	635	2.1	2.8	250	30
L-314SRC	GaAIAs	Super Red	Water Clear	660	1.8	2.2	500	30
L-314LRC	GaAIAs	Super Red	Water Clear	660	1.8	2.2	700	30
L-314HURC	GaAIInP	Hi.effi Red	Water Clear	628	2	2.5	1000	30
L-314LEC	GaAIInP	Super Orange	Water Clear	620	2.1	2.6	1300	30

HONEST-WELL CO., LTD.: Contact nameHarold Yeh; Phone886-02-22190080; Address4/F, No. 4, Ln. 560
