5mm Dia.Cyclindrical LED Lamp

Name: 5mm Dia.Cyclindrical LED Lamp
Brand: HW
Price: Negotiable

FOB Price

Negotiable / Bag

4000 Bags(Min.Order)

Product Details

Place of Origin:

Taiwan

Brand Name:

Model Number:

L5N3XX

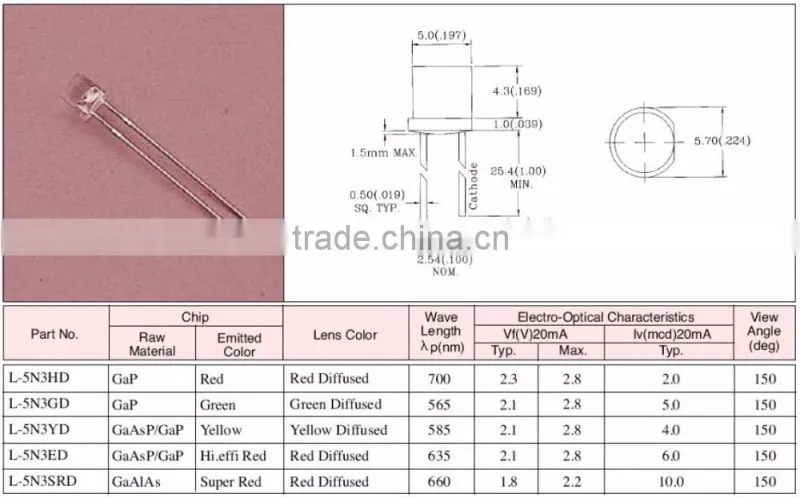

5mm Dia.Cyclindrical LED Lamp

Part No.	Chip		Lens Color	Wave Length λp(nm)	Electro-Optical Characteristics			View Angle (deg)
	Raw Material	Emitted Color			Vf(V)20mA		lv(mcd)20mA
	Raw Material	Emitted Color			Typ.	Max.	Typ.
L-5N3HD	GaP	Red	Red Diffused	700	2.3	2.8	2	150
L-5N3GD	GaP	Green	Green Diffused	565	2.1	2.8	5	150
L-5N3YD	GaAsP/GaP	Yellow	Yellow Diffused	585	2.1	2.8	4	150
L-5N3ED	GaAsP/GaP	Hi.effi Red	Red Diffused	635	2.1	2.8	6	150
L-5N3SRD	GaAIAs	Super Red	Red Diffused	660	1.8	2.2	10	150

HONEST-WELL CO., LTD.: Contact nameHarold Yeh; Phone886-02-22190080; Address4/F, No. 4, Ln. 560
