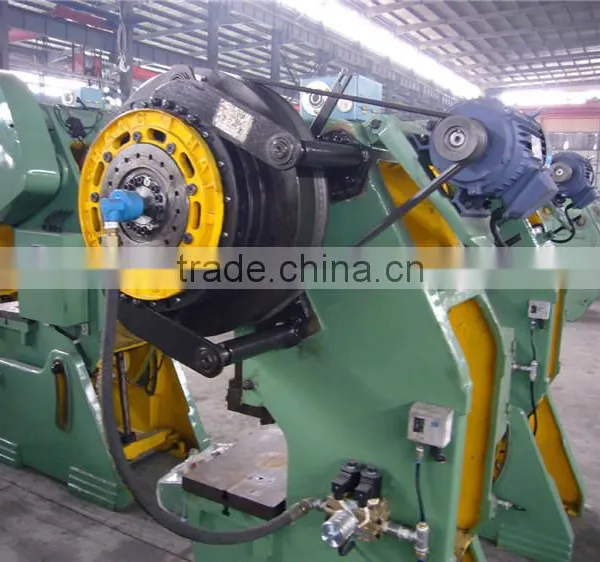

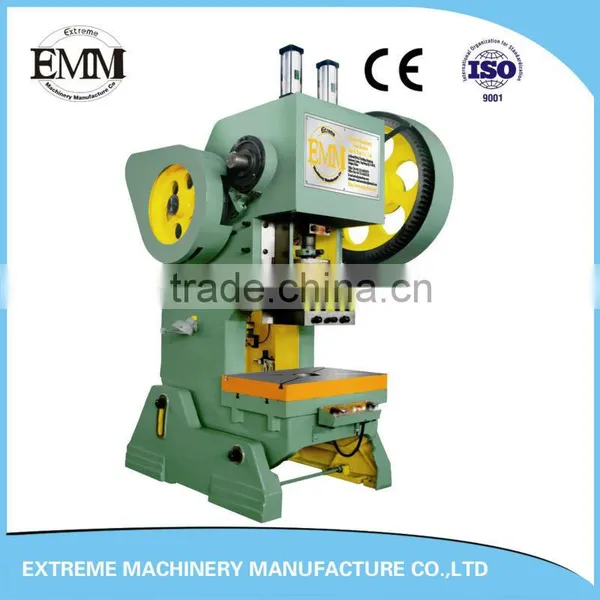

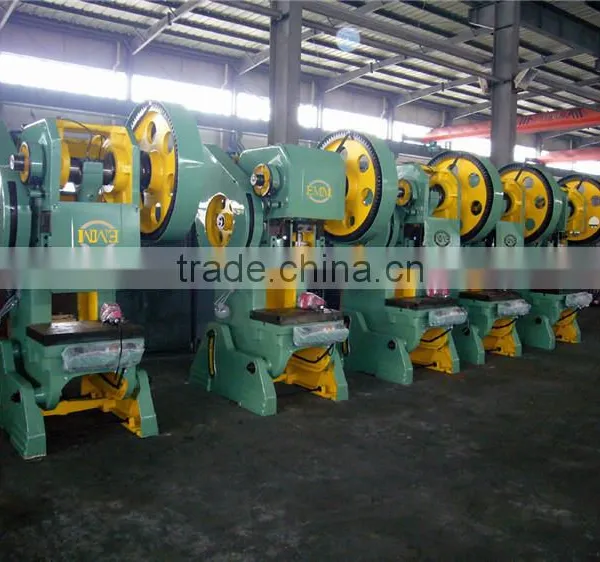

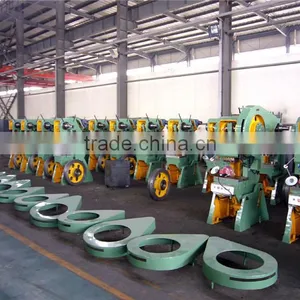

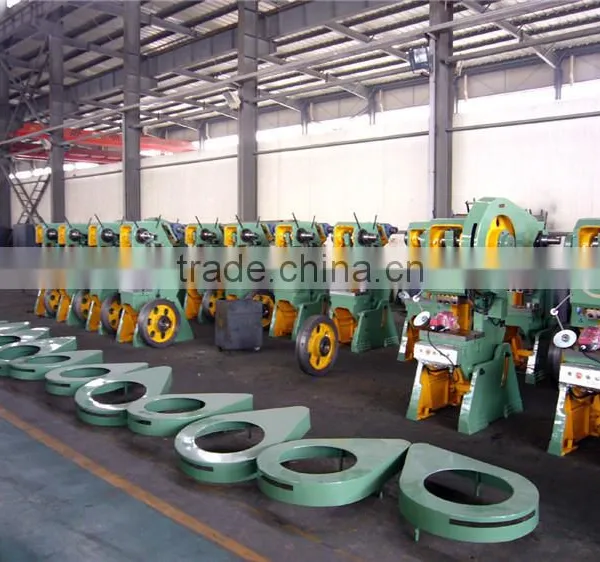

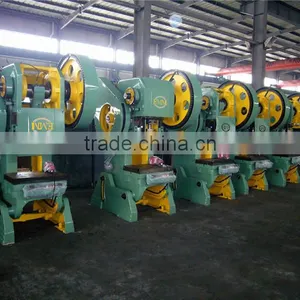

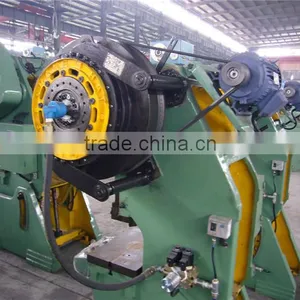

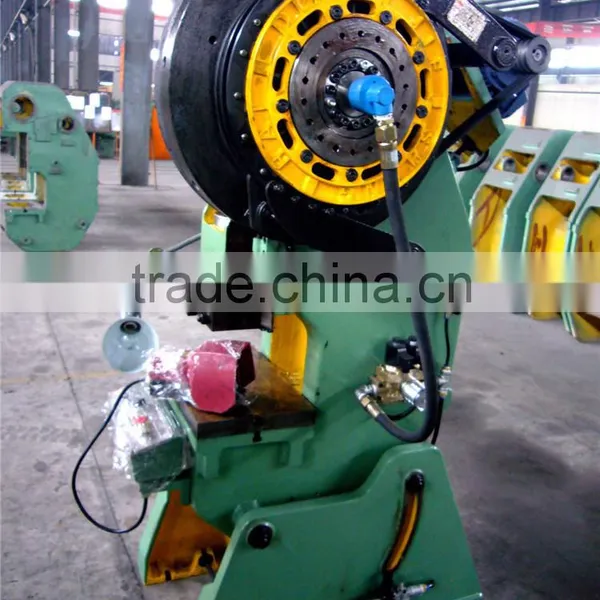

EMM 23-25 200 Ton Power Press for Sale

US$ 3,500 - 8,000 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

Normal

Power Source:

Mechanical

Extreme Machinery Manufacture Co., Ltd. (Jingjiang)

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Power Source Mechanical

Place of Origin Jiangsu, China

Brand Name EMM

Model Number EMM 23-25

Voltage 380V50HZ

Power(W) 2.2KW

Weight 1780KG

Dimension(L*W*H) 1345*950*2130mm

Certification ISO9001

Warranty I YEAR

After-sales Service Provided Engineers available to service machinery overseas

EMM 23-25 200 ton power press for sale

Product Description

Technical Data			Unit	EMM 23-16	EMM 23-25
Nominal pressure on sliding block(Pe)			KN	160	250
Nominal pressure stroke(Sp)			mm	2	2.5
Slide stroke(S)			mm	55	65
Stroke frequency(Fast speed)			times/min	125
Stroke frequency(Low speed)			times/min		55
Die height(H2)			mm	220	270
Die Height Adjustment(t)			mm	45	55
Distance between slider center and machine(C1)			mm	160	200
Vertical columns distance(d1)			mm	220	270
Slider bottom size		L×R(a)	mm	200	250
		F×B(b)	mm	180	220
Size of handle hole		Diameter(d)	mm	40	40
		Depth(I)	mm	60	60
Size of worktable		L×R(C)	mm	450	560
		F×B(D)	mm	300	370
Blanking hole diameter(Φ)			mm	100	120
Thickness of worktable(H3)			mm	40	50
Max. inclination angle				35	30
Worktable height(H1)			mm	750	800
Overall size	L×R(A)		mm	1150	1345
	F×B(B)		mm	847	950
	Height(H)		mm	1910	2130
Anchor bolts distance	L×R(a’)		mm	780	920
	F×B(b’)		mm	450	600
Power of electric motor			KW	1.5	2.2
Weight(Approximate)			Kg	1085	1780
