Specifications
EMM 23-25 single crank power press1High-strength frame
2Stable high accuracy
3Slider adjustment mechanism
4Novel design

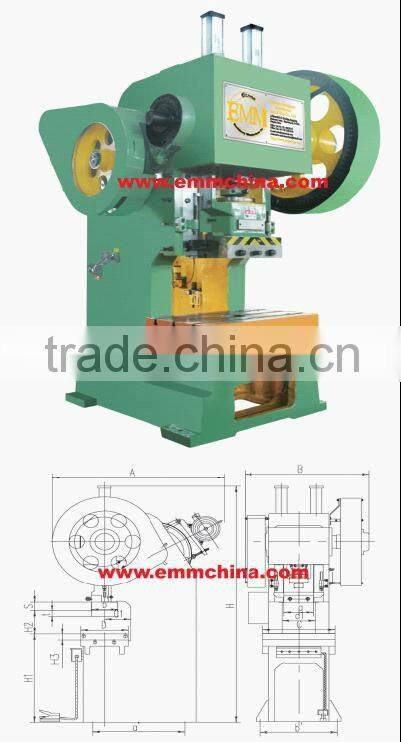

EMM 23-25 single crank power press
This series presses adopt rigid transfer clutch and are with simple structure, convenient operation and easy maintenance. The machine uses helical gears which is stable at work and has small impact, low noise. EMM2325 open type inclinable press machine is the first to adopt rolling bearing than the commonly used sliding bearing (copper bearing ) for the transmission gear, which make the transmission gear more wear-resistant and avoid loud noises of gears caused by the quick worn copper bearing.
Technical Data | Unit | EMM 23-16 | EMM 23-25 | ||
Nominal pressure on sliding block(Pe) | KN | 160 | 250 | ||
Nominal pressure stroke(Sp) | mm | 2 | 2.5 | ||
Slide stroke(S) | mm | 55 | 65 | ||
Stroke frequency(Fast speed) | times/min | 125 | |||
Stroke frequency(Low speed) | times/min | 55 | |||
Die height(H2) | mm | 220 | 270 | ||
Die Height Adjustment(t) | mm | 45 | 55 | ||
Distance between slider center and machine(C1) | mm | 160 | 200 | ||
Vertical columns distance(d1) | mm | 220 | 270 | ||
Slider bottom size | L×R(a) | mm | 200 | 250 | |
| F×B(b) | mm | 180 | 220 | |
Size of handle hole | Diameter(d) | mm | 40 | 40 | |
| Depth(I) | mm | 60 | 60 | |
Size of worktable | L×R(C) | mm | 450 | 560 | |
| F×B(D) | mm | 300 | 370 | |
Blanking hole diameter(Φ) | mm | 100 | 120 | ||
Thickness of worktable(H3) | mm | 40 | 50 | ||
Max. inclination angle | 35 | 30 | |||
Worktable height(H1) | mm | 750 | 800 | ||
Overall size | L×R(A) | mm | 1150 | 1345 | |
| F×B(B) | mm | 847 | 950 | |
| Height(H) | mm | 1910 | 2130 | |
Anchor bolts distance | L×R(a’) | mm | 780 | 920 | |
| F×B(b’) | mm | 450 | 600 | |
Power of electric motor | KW | 1.5 | 2.2 | ||
Weight(Approximate) | Kg | 1085 | 1780 | ||
