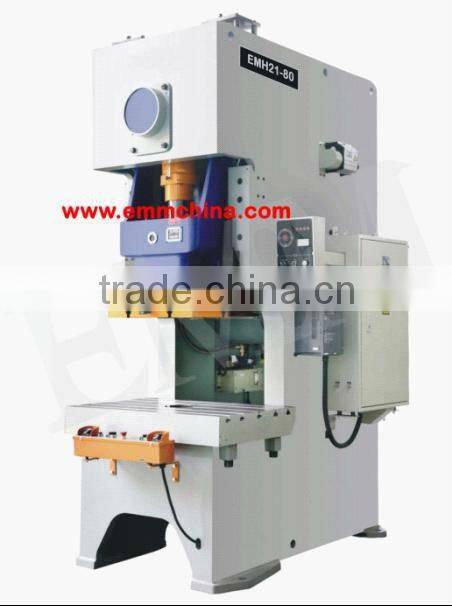

EMH21-80 pneumatic power press machine
- 50 Set / Sets per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Professional High Precision Wide Application J23-25 cnc turret punching machines
- High Precision Wide Application J23-25 c frame punch press
- Professional High Precision Wide Application J23-25 hydraulics
- High Precision Wide Application J23-25 c frame fixed table punching machine
- Factory Sale High Precision Wide Application J23-25 construction material making machine
- High Precision Wide Application J23-25 scrap metal cutting machine for punching machine
Product Details
Condition: | New | CNC or Not: | Normal | Power Source: | Pneumatic |
Place of Origin: | Jiangsu, China | Brand Name: | EMM | Model Number: | EMH21-80 |
Voltage: | 380V50HZ | Power(W): | 7.5kw | Weight: | 6450kg |
Dimension(L*W*H): | 1765*1200*2725mm | Certification: | ISO9001 | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
EMH21-80 pneumatic power press machine1.high rigidness
2.pneumatic dual cylinder
3.electrical components
4. low noise

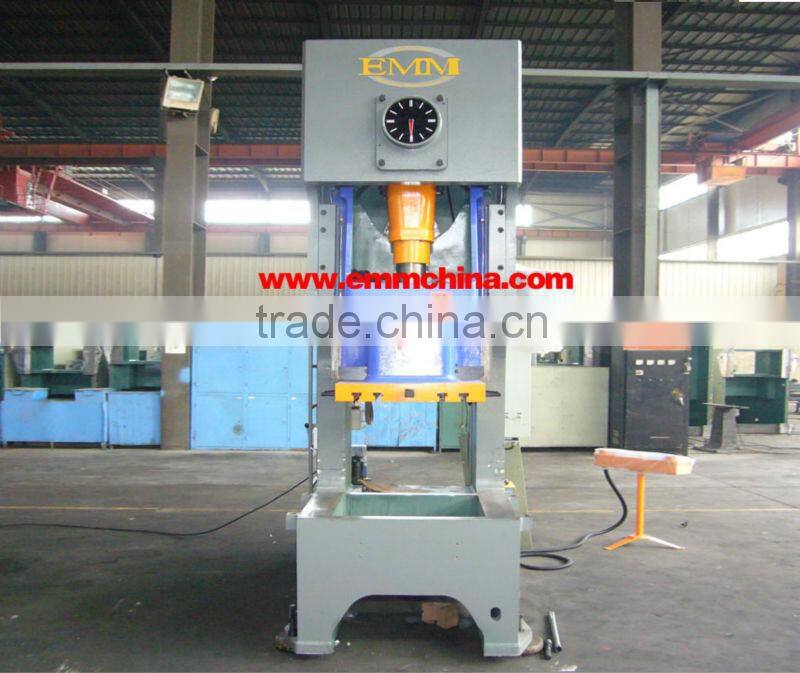

EMH21-80 pneumatic power press machine
EMM’s is a comprehensive enterprise dealing economic and technology cooperation that specializes in manufacturing for metal fabrications and distributing of all types of machinery tools Including Industrial Equipment, fabricating equipment, sheet metal equipment and production line machinery.
We are not only trading with customers from domestic and oversea but also providing customers with technical, commutation and after sales support.
Our dedication to the highest quality products and services have establish excellent trade relations with customers from all over the world. EMM’s team memebers includes qualified sales specialists and highly trained technical professional to help provide quick service and the best quality of work in order to meet our customer needs.
EMH21-80 pneumatic power press machine Welded steel plate body, after tempering treatment, has high rigidness and stable accuracy.
Square figure long guide with six friction faces makes abrasion resistance and reliable precision
Imported hydraulic overload protector has sensitive response and reliable action, effective protection of the mold.
Wet clutch engages stably with low noise, which belongs to long-term maintenance-free
Closed bevel gear, which drives stably with low noise,
Slide with pneumatic dual balance cylinder which will balance the weight of the slider and the upper die, reduce impact and noise, eliminate the clearance between connecting rod and slide ,reduce the impact and wear of the stress parts
Intermittent auto lubrication makes every point fine and safe
PLC electric control system is safe and reliable, gas circuit controlled by imported dual valve,can achieve jog, inch, single and continuous punching.
The key parts like pneumatic components, electrical components, sealing parts, buttons and etc all adopt imported parts.
Air cushion, photo guard, auto feeder, Infinite speed variation equipment, speed die changing are optional.

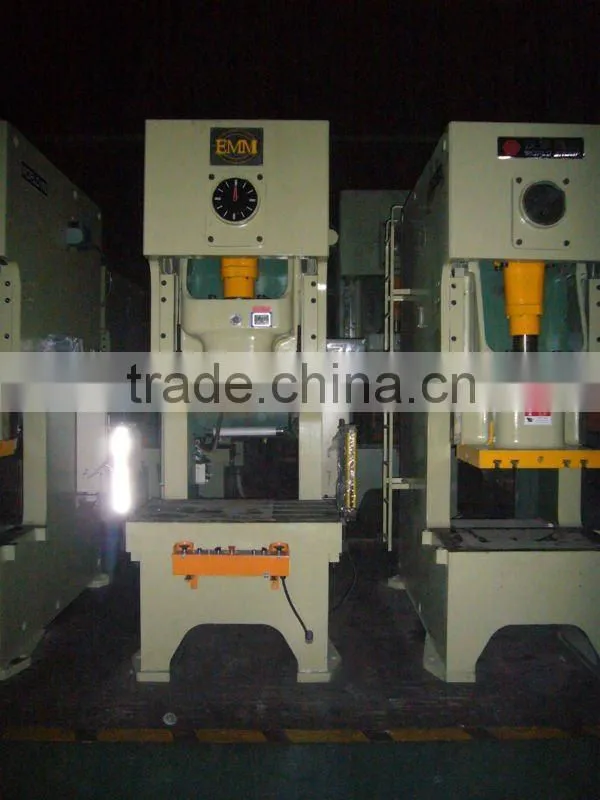

EMH21-80 pneumatic power press machine
Specifications | Unit | EMH21-80 | ||
Nominal Capacity | KN | 800 | ||
Nominal | Mm | 5 | ||
Slide Stroke | Mm | 160 | ||
Slide strokes per minute | Fixed | Times/min | 60 | |
Variable | Times/min | 40-60 | ||
Max. die set height | mm | 320 | ||
Die height adjustment | mm | 80 | ||
Throat Depth | mm | 310 | ||
Distance between uprights | mm | 610 | ||
Slide bottom size | L×R | mm | 540 | |
F×B | mm | 460 | ||
Bolster thickness | Dia | mm | 50 | |
Depth | mm | 65 | ||
Work table size | L×R | mm | 950 | |
F×B | mm | 600 | ||
Bed opening Dia | mm | 150 | ||
Work table thickness | mm | 140 | ||
Work table surface height | mm | 900 | ||
Overall dimensions | F×B |
| 1765 | |
L×R | mm | 1200 | ||
H | mm | 2725 | ||
Weight(Approximate) | kg | 6450 |
1 year quality guaranty for the main spare parts, not include quick-wears parts, like blade, punch, die and so on.
During the guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us.
If the malfunctions are caused by customer's incorrect operations, we will offer the spare parts at cost price.
Anyway, our company promises to supply the customer cost price of spare parts and provide long-term technical guide beyond the guarantee.
Package: under 63 iron sheet
beyond 63 tito plus rain wear
Shipping : FOB shanghai by sea
1. 100% by T/T;
2. 30% deposit by T/T, the balance paid by L/C at sight;
3. 100% by L/C at sight;
4. 100% by 30, 60 or 90 days usance credit.
contact information
Contact Person: Joan Wang
Mobile number: +86-13952608133, +86-18651143188;
Skype: emmchina
