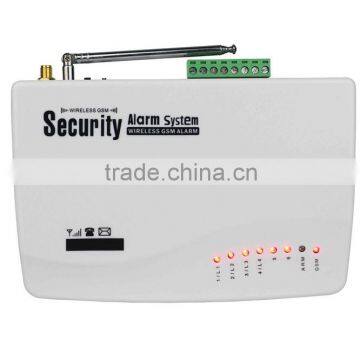

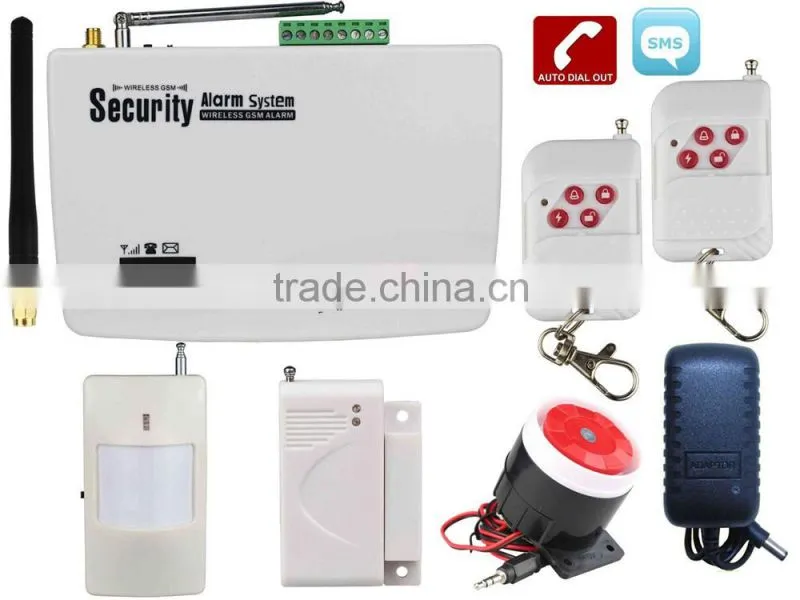

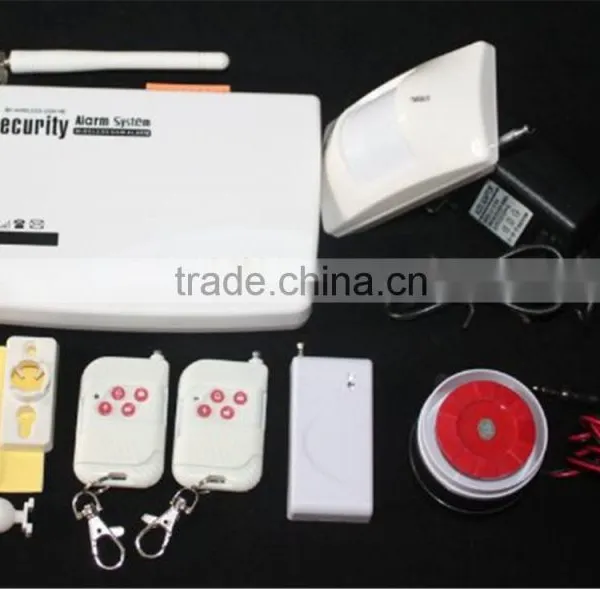

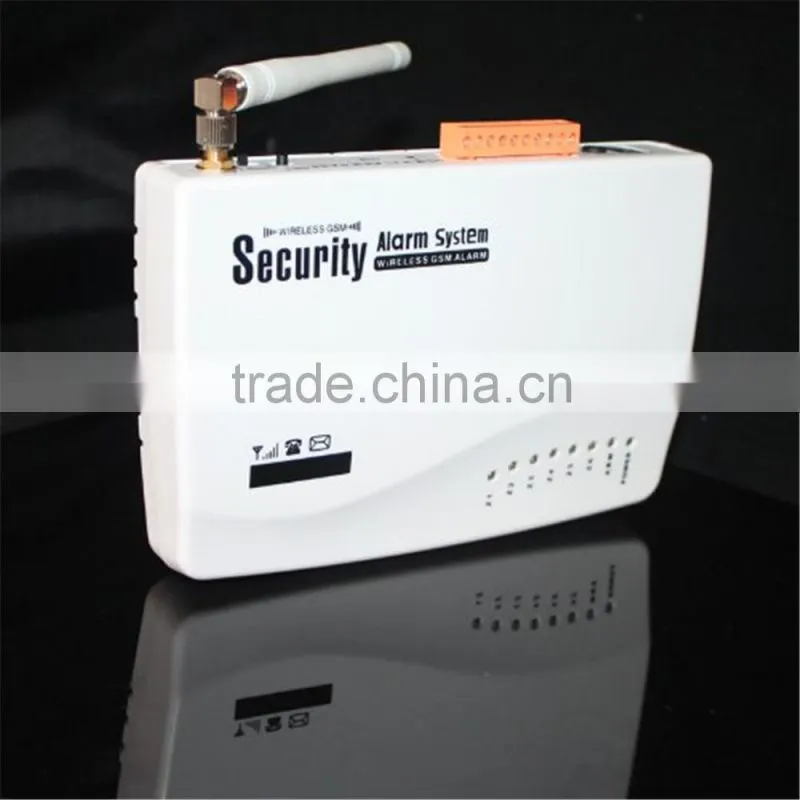

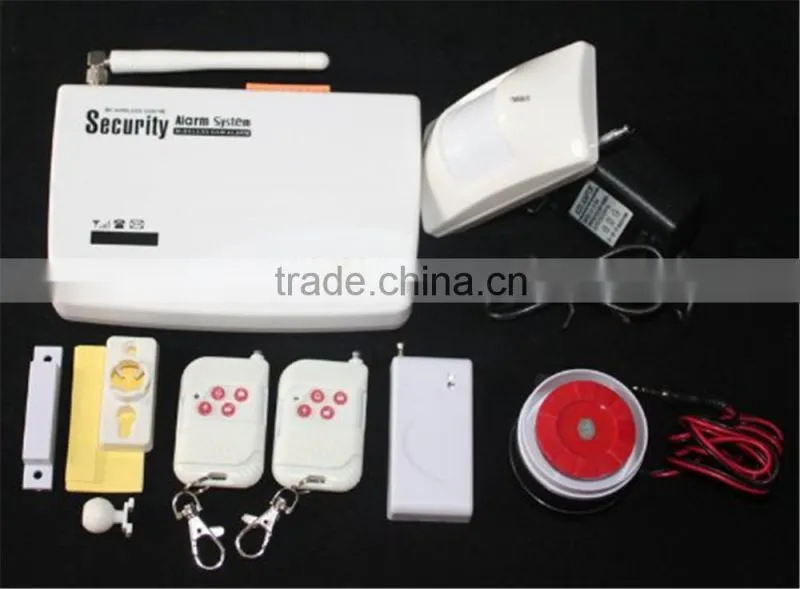

Genuine original GSM wireless home security burglar alarm system to automatically dial a call PIR SMS Russian/English/Spanish
Installation:
n Main Unit Installation
Be careful to keep it away from large metal objects or household appliances which may cause high frequency interference, as well as barriers such as reinforced concrete walls and fire doors.

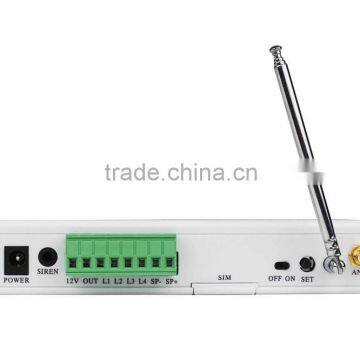

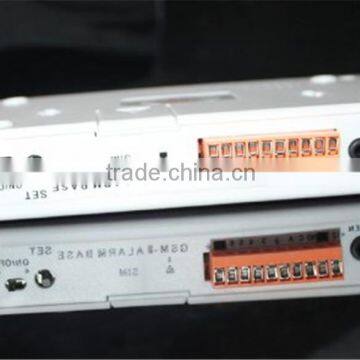

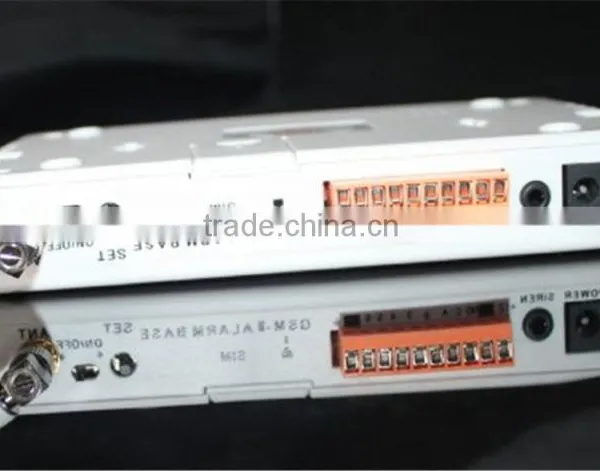

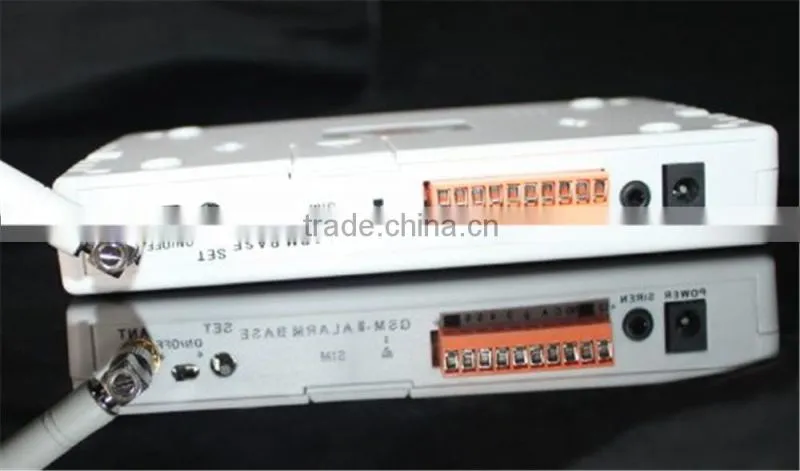

Control Panel of Main Unit:
Power hole
Alarm output end
+12 V power output
OUT port
Wired defence zone input
Grounding wire, sp-
Intercom speaker port
SIM card slot
Backup power switch
Setting button
A. defence zone indicator
B. [Arm] lindicator
C. [Power] indicator
n SIM Card Installation
Step 1: Push out the SIM card socket as the open direction.
Step 2: Fit the GSM card into the card socket properly.
Step 3: Push the card socket as close direction until it is fit firmly.
5 Main Unit Settings
n Power-on for the First Time
n Factory Reset
n Voice Record
n Enter Setting
n Exit Setting
Code Pairing by Remote Control
n Code Pairing of defence zoNE
6 Remote Control Programming
5. Operation methods of remote setup
Please press # after accomplish all operations, then you can implement other operations and hang up telephone.
Press "1" to monitor the scene
Press "2" to ring alarms
Press "3" to close arisen
Press "4" to set up defenses
Press "5" to cancel defenses
Press "6" to play records
Press "7" to output 12V electric power
Press "8" to close 12V output
Press "9" to Open propaganda
Press "0" to Close propaganda
Press "#" to affirm and hang up
If the password is wrong or no any operations within 20 seconds, it will hang up automatically.
Press "1" button once you can listen for 20 seconds
Hosts cover wiring diagram
SP +SP-connected loudspeaker speaker
Which SP-connect the power ground (GND)
Cable zone wiring: L1and L4 is the wired connection port zone, zone one of a wired line to a common ground, another wire signals the host access port (host port is not wired to provide power, but signal acquisition),
OUT is 12V programmable output drive current of 1A,
12V fixed output power, external electrical supply power.
