Help CenterRO Booster Pump Head for Domestic Water Purifier
Related Products
-
Water Purifier RO Booster Pump KT-PU-100GUS$ 9.5 - 10.1MOQ: 1000 Pieces -
RO Water Booster Pump for Commercial Water PurifierUS$ 13.63 - 14.25MOQ: 1000 Pieces
-
36V RO Booster Pump Head KT-PU-400G+US$ 14.42 - 15.1MOQ: 1000 Pieces
-
400GPD RO Water Booster Pump KT-PU-400G (24V)US$ 14.42 - 15.1MOQ: 1000 Pieces
-
RO Self Sucking Pump for Water Purifier KT-SPU-50GUS$ 9.3 - 9.9MOQ: 1000 Pieces

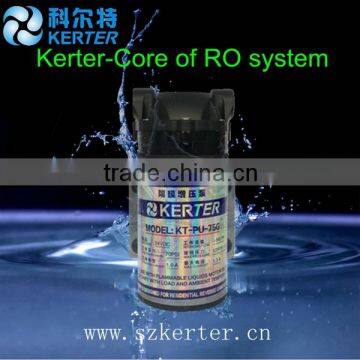

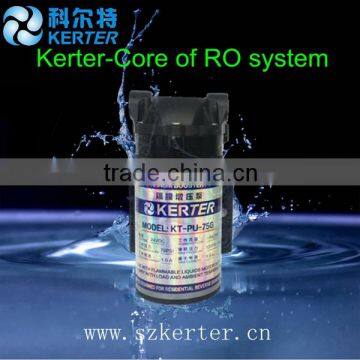

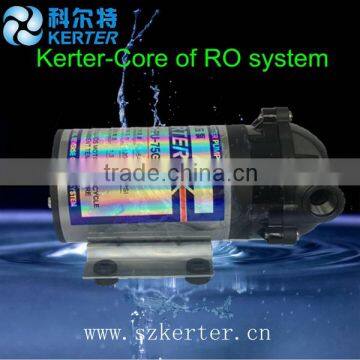

RO booster pump head for domestic water purifier
Voltage, DC24V
Feed water pressure,20PSI
Working pressure, 70PSI
Working current≤1.0A
Work flow≥54LPH
Max current≤1.3A
Max pressure 130±10PSI

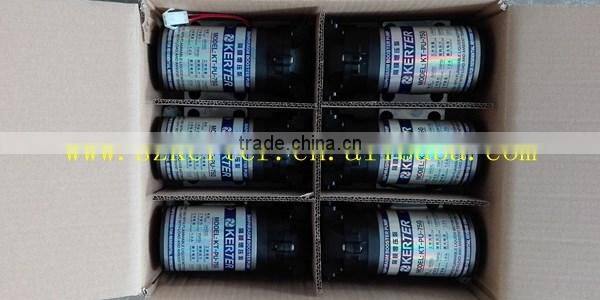

Packing detail, 6PCS/CTN
Packing size, 40*32*13cm
Gross weight, 12KGS
Application: RO water purifier and water treatment facility
The pump is designed for residential RO system with source water pressure being 0.1MPa~0.4MPa to increase the inlet water pressure. Booster pumps increase feed water pressure to keep RO membrane working normally
Features
A) Low noise, corrosion resistance, high pressure, need to row the air in pump,
B) Time-consuming, convenient and easy to set up.
C) Long life-span.
D) Max medium temperature up to 60 centigrade,
E) Pressure switch to protect the pump when it’s running,
F) The built-in relief valve to control the normal operation of the pump,
Working theory
a) Magnetic reaction phenomenon
b) Power transformation, water inlet and output and pressure control
c) Work term: Intermittent working
Series:
A) Booster pumps and Self-suction pumps
B) Screw and easy-fitting inlet and outlet
| RO Booster Pump Specification | |||||||
| Model | 50G | 75G | 100G | 200G | 300G | 400G | 400G |
| Voltage | 24VDC | 24VDC | 24VDC | 24VDC | 24VDC | 24VDC | 36VDC |
| Source Water Pressure | 20PSI | 20PSI | 20PSI | 20PSI | 20PSI | 20PSI | 20PSI |
| Operating Pressure | 70PSI | 70PSI | 70PSI | 70PSI | 70PSI | 70PSI | 70PSI |
| Operating Current | ≤0.7A | ≤1.0A | ≤1.2A | ≤1.5A | ≤2.0A | ≤2.5A | ≤1.5A |
| Work Flow | ≥36LPH | ≥54LPH | ≥66LPH | ≥108LPH | ≥138LPH | ≥150LPH | ≥168LPH |
| Max Current | ≤1.0A | ≤1.3A | ≤1.5A | ≤2.4A | ≤3.0A | ≤3.5A | ≤2.5A |
| Max Pressure | 130±10PSI | 130±10PSI | 130±10PSI | 130±10PSI | 130±10PSI | 130±10PSI | 130±10PSI |
