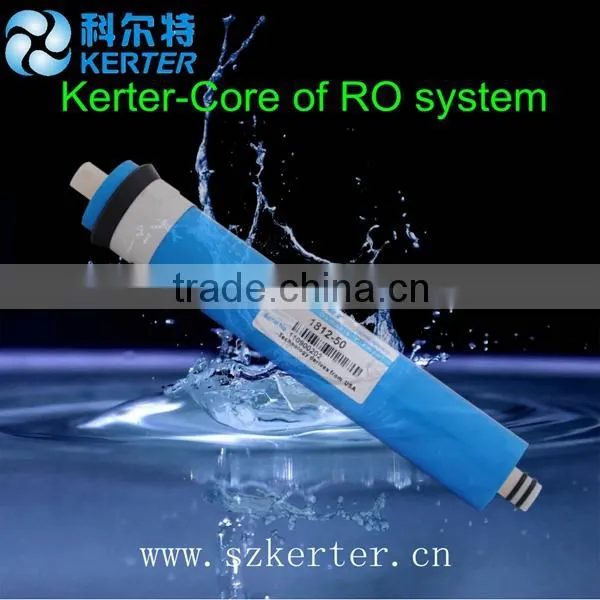

OEM RO membrane 50GPD used in water purifier
Specification
Active Area, 4(0.4) Ft2 (m2)
Removal rate, 97%
Water production rate, 50GPD
Testing pressure, 65PSI
Test temperature, 25℃
Packing detail, 25PCS/CTN
Packing size, 32*32*31cm
Gross weight, 6.5KGS
Test conditions
The test is under water temperature 25°C, nacl 500mg /l, pH 7.5 and the standard recycle rate and pressure.
The water output deviation of single membrane is between 15percent .of mean values.
The lowest desalination rate is 95.0%
Limited conditions
Max operation pressure ………………………600psi (4.2mpa)
Max feed water temperature …………………………45°C
Max feed water sdi ……………………………………5
Max free chlorine in feed in water …………less than 0.1mg /L
Range of feed water PH value of constant run ………3 to10
Range of feed water pH value of chemical cleaning 2 to 11
Max pressure drop of single out membrane …15psi (0.1mpa)
| Model | Active Area | Removal rate | Water production rate | Test Pressure | Test temperature | Packing detail | |||
| Ft2 (m2) | % | GPD | Psi | ℃ | N.W (Kg/CTN) | G.W (Kg/CTN) | Qty/CTN | Packing size (cm) |
|
| 1812-50 | 4(0.4) | 95 | 50 | 65 | 25 | 6 | 6.5 | 25 | 32*32*31 |
| 1812-75 | 4(0.4) | 95 | 75 | 65 | 25 | 6 | 6.8 | 25 | 32*32*31 |
| 1812-100 | 5(0.5) | 95 | 100 | 65 | 25 | 7 | 7.5 | 25 | 32*32*31 |
| 1812-125 | 5(0.5) | 95 | 125 | 65 | 25 | 7 | 7.8 | 25 | 32*32*31 |
| 2812-200 | 10(1.0) | 95 | 200 | 65 | 25 | 7.5 | 8 | 16 | 32*32*32 |
| 2812-300 | 14(1.4) | 95 | 300 | 65 | 25 | 8.5 | 9 | 16 | 32*32*32 |
| 3012-400 | 16(1.5) | 95 | 400 | 65 | 25 | 9 | 9.5 | 16 | 32*32*32 |
