Specifications
CH1911B cnc horizontal latheIt is suitable for turning cylindrical and taper faces, boring, grooving and cutting threads.

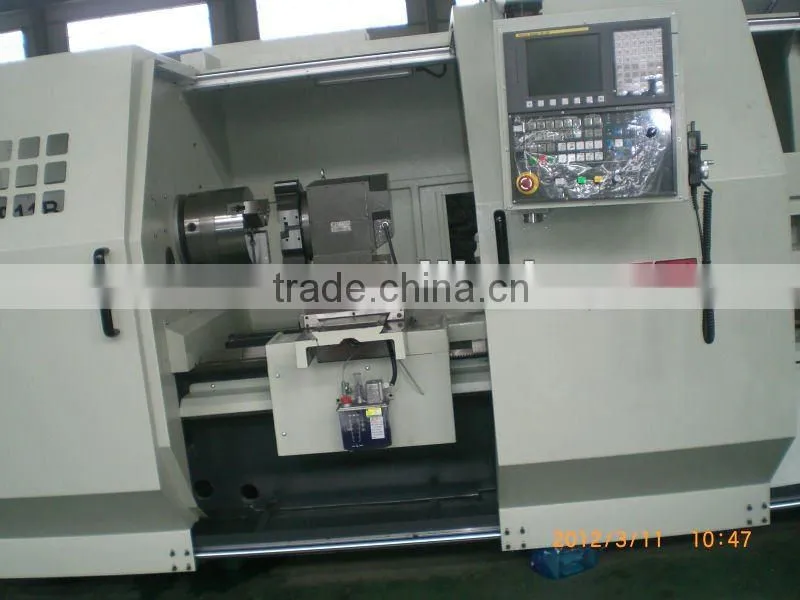

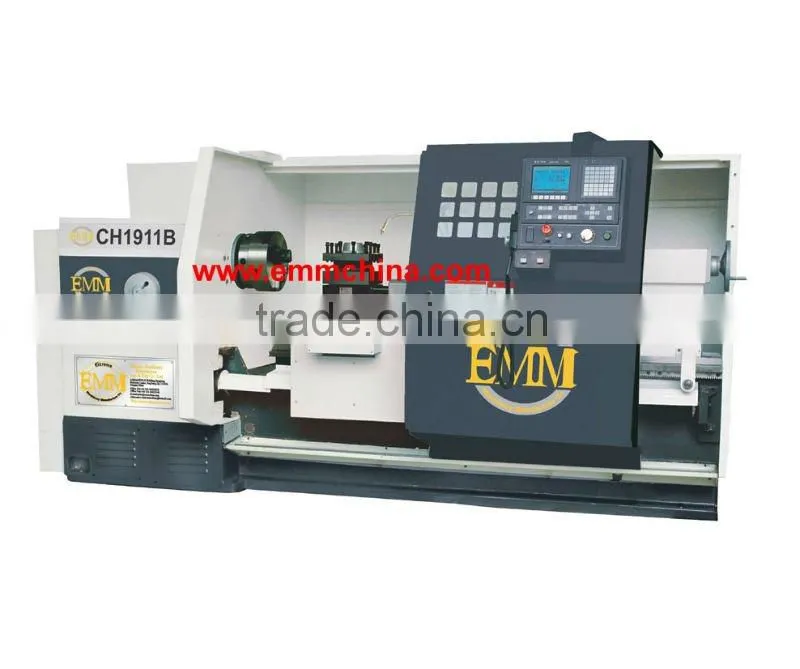

CH1911B cnc horizontal lathe
Features:
1-This machine is a CNC lathe controlled by a microcomputer and driven by step motors. It is suitable for turning cylindrical and taper faces, boring, grooving and cutting threads (including taper threads).
2-The machine adopts ISO International Code, Keyboard Manual Date input, and it is also provided with program of power cut-off protection and the functions of automatic diagnosis and with RS232 interface.
3-Longitudinal and cross feeds are effected by ball leadscrews driven by servo motors.
Either vertical or horizontal 4 station or 6 station tool post or gang tools can be selected. The post is located on precision contrate gears with a high repeated positioning accuracy.
Hydraulic chuck, manual chuck, manual tailstock and hydraulic tailstock are available for your choice.
4-Infinitely variable speed change for spindle. The spindle bore is 104mm.The spindle system is high in the rigidity and accurancy.
Specification:
Item |
Unit |
CH1911B |
Max. swing over bed |
mm |
φ910 |
Max. swing over carriage |
mm |
φ530 |
Width of bed |
mm |
600 |
Max. work piece length |
mm |
1500 |
Max. turning length |
mm |
1350 |
Max. weight between center |
kg |
2000 |
Spindle nose |
|
D11 |
Spindle bore |
mm |
φ104 |
Cone hole diameter and taper |
|
φ120 1:20 |
Range of spindle speed |
r/min |
3-15/13-55/45-200/155-800 |
Steps of spindle speed(Manual) |
|
4 |
Rapid feed for Longitudinal |
m/min |
12 |
Rapid feed for cross |
m/min |
10 |
Max. travel of cross |
mm |
520 |
Min. input |
mm |
0.001 |
Tool post stations |
|
4ways |
Tool cross section |
mm |
40*40 |
External diameter |
mm |
φ100 |
Taper of bore |
|
MT NO.5 |
Max. Traverse |
mm |
250 |
X/Z motor torque |
nm |
21/33 |
Main motor power |
kw |
15 |
Cooling pump power |
w |
90 |
Overall dimensions(L*W*H) |
mm |
4200*2000*1930 |
Net weight |
kg |
6600 |
