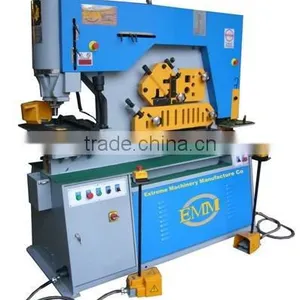

Q35Y-60 multi-function ironworker
- 50 Set / Sets per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Professional High Precision Wide Application J23-25 cnc turret punching machines
- High Precision Wide Application J23-25 c frame punch press
- Professional High Precision Wide Application J23-25 hydraulics
- High Precision Wide Application J23-25 c frame fixed table punching machine
- Factory Sale High Precision Wide Application J23-25 construction material making machine
- High Precision Wide Application J23-25 scrap metal cutting machine for punching machine
Product Details
Condition: | New | CNC or Not: | Normal | Power Source: | Hydraulic |
Place of Origin: | Jiangsu, China | Brand Name: | EMM | Model Number: | Q35Y-60 |
Voltage: | 220V/380V50HZ | Power(W): | 4KW | Weight: | 970KG |
Dimension(L*W*H): | 1180*770*1760mm | Certification: | ISO9001 | Warranty: | 1 YEAR |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
multi-function ironworker Q35Y-601.easy maintenance
2.light weight
3.gain time
4.improve work efficiency

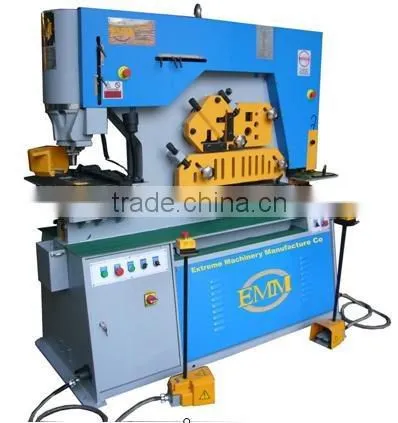

Q35Y-60 multi-function ironworker
The EMM model of hydraulic punching machines all come equipped with a deep throat of 600mm as standard. Heavy-duty support tables with scales and backstops, universal die holder for punching in plate, flat bar, angle iron and flange of channel and beam are all part of the standard execution. The EMM hydraulic punching machines are available from 60 ton to 200 ton. Furthermore, tooling from competitor’s machines and or other brand-names can be used without special machine-modifications. The standard machine comes equipped with a deep throat and universal die-bolster, punching up to 57mm diameter/slot. The front part of the table can be removed in order to punch in large format angle-iron.
shell feed plate plus raincloth
FOB shanghai by sea or ningbo
About us
Extreme Machinery Manufacture (EMM) has improved the metal processing proficiencies of industry professionals since 2008. We are a Chinese manufacturer that specializes in the design, production, distribution, and servicing of metal processing equipment. In addition to various types of lathes and CNC centers, we also offer ironworkers, press brakes, plate shearing machines, and PU foam machines. Designed for highefficiency industrial applications, our automated solutions are optimized for sheet metal production lines of all types. Our facilities are fully equipped to handle OEM requests. Client-side blueprints are accepted as a part of our customization program.
After-Sale Service
1. One year warranty is provided.
2. Customers can send photos or samples for our confirmation once the parts are damaged within the one year warranty. If the parts are not damaged by misoperation, we will reply to customers within 48 hours and provide free parts for replacement. Besides, for the parts out of commission and beyond the warranty, we only charge for the basic costs of parts
3. We regularly follow up the service condition of products, and timely analyze and copy with the feedbacks. As for the disputes, we will figure out effective actions to reach mutual satisfaction.
Payments terms:
1.T/T
2.30% deposit by T/T,the balance paid by T/T before commodity inspection and before shipment or irrevocable letter of credit at sight.
3.100% by L/C at sight;
Delivery Detail
20-30 workdays /ironwork manufacturers
Q35Y-60 multi-function ironworker
multi-function ironworker | multi-function ironworker | multi-function ironworker | multi-function ironworker | multi-function ironworker | multi-function ironworker | multi-function ironworker | multi-function ironworker | multi-function ironworker | multi-function ironworker | multi-function ironworker |
Model | Q55Y-60 | Q55Y-90 |
Punching Pressure (Ton) | 600 | 900 |
Max punching thickness(mm) | 16 | 20 |
Max. capacity(mm) | 25x16 | 30x20 |
Tensile strength of sheet metal(N/mm²) | ≤450 | ≤450 |
Stroke length(mm) | 80 | 80 |
Number of stroke(times/min) | 8 | 8 |
Depth of throat(mm) | 380 | 450 |
Main motor power (KW) | 4 | 5.5 |
Machine length(mm) | 1180 | 1420 |
Machine width(mm) | 770 | 790 |
Machine height(mm) | 1760 | 1990 |
Machine weight(kg) | 970 | 1600 |
Q35Y-60 multi-function ironworker
