Help CenterQ35Y-30 Ironworks for Folding Tables
Related Products
Specifications
ironworks for folding tables Q35Y-301.easy maintenance
2.light weight
3.gain time
4.improve work efficiency

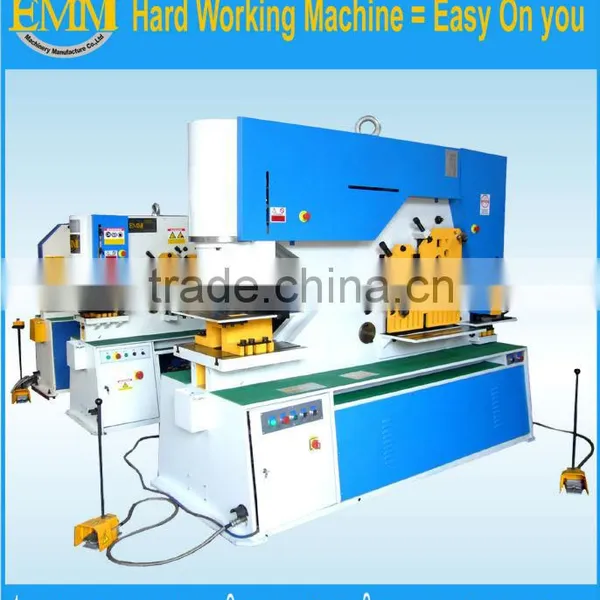

Q35Y-30 ironworks for folding tables

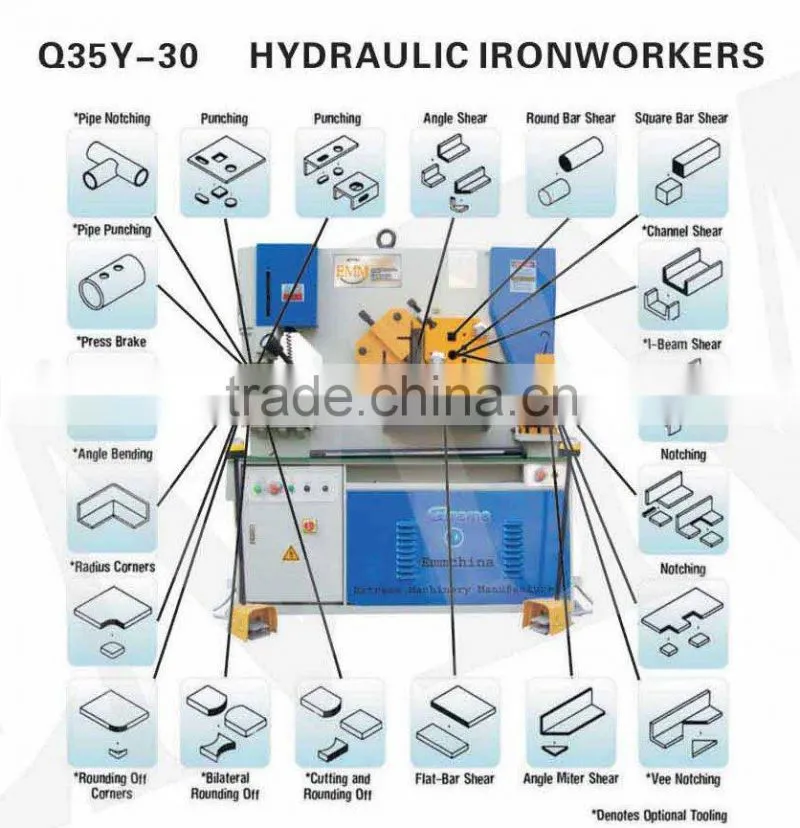

A hydraulic ironworker can be used for punching, shearing, notching, bending and other metal fabricating functions. EMM’s special tooling department can design any special tool you need for your metal fabricating needs.
The Ironworker is the most used and most versatile machine a person can have in their manufacturing or fabrication shop, maintenance department or vocational school. Ironworkers save time, increase productivity, eliminate waste and create clean smooth cut.
shell feed plate plus raincloth
FOB shanghai by sea or ningbo
About us
Extreme Machinery Manufacture (EMM) has improved the metal processing proficiencies of industry professionals since 2008. We are a Chinese manufacturer that specializes in the design, production, distribution, and servicing of metal processing equipment. In addition to various types of lathes and CNC centers, we also offer ironworkers, press brakes, plate shearing machines, and PU foam machines. Designed for highefficiency industrial applications, our automated solutions are optimized for sheet metal production lines of all types. Our facilities are fully equipped to handle OEM requests. Client-side blueprints are accepted as a part of our customization program.
After-Sale Service
1. One year warranty is provided.
2. Customers can send photos or samples for our confirmation once the parts are damaged within the one year warranty. If the parts are not damaged by misoperation, we will reply to customers within 48 hours and provide free parts for replacement. Besides, for the parts out of commission and beyond the warranty, we only charge for the basic costs of parts
3. We regularly follow up the service condition of products, and timely analyze and copy with the feedbacks. As for the disputes, we will figure out effective actions to reach mutual satisfaction.
Payments terms:
1.T/T
2.30% deposit by T/T,the balance paid by T/T before commodity inspection and before shipment or irrevocable letter of credit at sight.
3.100% by L/C at sight;
Delivery Detail
20-30 workdays /ironwork manufacturers
Q35Y-30 ironworks for folding tables
ironworks for folding tables | ironworks for folding tables | ironworks for folding tables | ironworks for folding tables | ironworks for folding tables | ironworks for folding tables | ironworks for folding tables |
nrise ironwork |
Specification |
Q35Y-16 |
Q35Y-20 |
Q35Y-25 |
Q35Y-30 |
Punching |
|
|
|
|
Punching maximum capacity |
25x16 |
30x20 |
35x25 |
38x30 |
Stroke Ram length |
80 |
80 |
80 |
80 |
Deep Throat Standard |
300 |
355 |
400(optional 600) |
600 |
Punching Largest hole (Optional) |
160 |
160 |
160 |
160 |
Working height |
1030 |
1084 |
1142 |
1209 |
Shearing |
|
|
|
|
Flat Plate Shearing Maximum |
250x16 |
330x20 |
330x25 |
355x30 |
Flat Plate Shearing Maximum |
400x8 |
480x10 |
600x16 |
600x20 |
Blade length |
410 |
485 |
620 |
610 |
Angle Flange Trim Maximum 45° |
100x10 |
100x13 |
100x14 |
100x16 |
Working Height |
890 |
894 |
851 |
900 |
Angle Cutting Station |
|
|
|
|
90° Miter (True Interior /Exterior ) |
125x12 |
140x14 |
160x15 |
180x16 |
45° Miter (True Interior /Exterior ) |
70x10 |
70x10 |
80x10 |
70x10 |
Working Height |
1130 |
1180 |
1220 |
1220 |
Section Cutting Station |
|
|
|
|
Round Bars/ Square Bars Maximum Diameter |
45/40 |
50/45 |
60/55 |
65/55 |
Channel /I Beams ( Optional ) |
126x53 |
160x65 |
200x75 |
280x86 |
Tee ( Optional ) |
90x12 |
90x12 |
90x12 |
90x12 |
Q35Y-30 ironworks for folding tables
