Specifications
1.Q35Y-16 hydraulic portable hydraulic punching machinebined
3.dual cylinder
4.universal
5.ISO9001
Q35Y-16 hydraulic portable hydraulic punching machine
A hydraulic portable hydraulic punching machine can be used for punching, shearing, notching, bending and other metal fabricating functions. EMM’s special tooling department can design any special tool you need for your metal fabricating needs.
The Ironworker is the most used and most versatile machine a person can have in their manufacturing or fabrication shop, maintenance department or vocational school. Ironworkers save time, increase productivity, eliminate waste and create clean smooth cut.
EMM’s universal multi – function Ironworker machine for production purposes with maximum efficiency and minimum deformation. The Q35Y-16(60ton) pressure machines are in the EMM’s tradition of well engineered, robust steelworkers built for long working life.

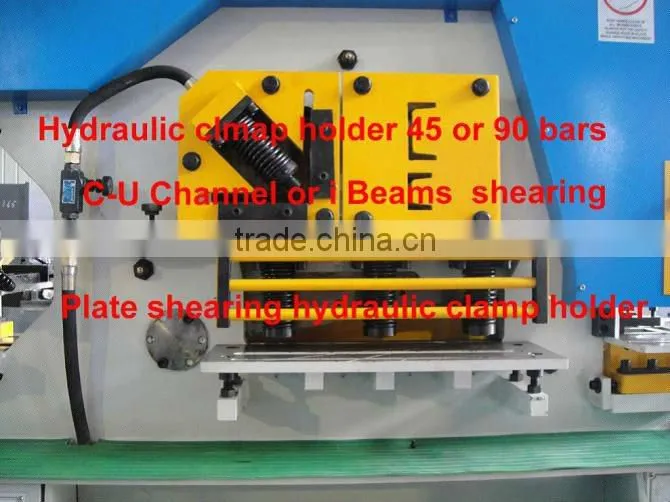

The universal machines are supplied with standard tooling include repetition support table at punching, shearing and notching stations and with easily adjust hold down at five stations to safely and control the operations, comprehensive safety guards are fitted as standard on all working stations.
Free standing on suitable floor, the ironworker machines just require electrical connection to be ready for work. For two operator utilization, the hydraulic system is activated by two shielded for switch control , one operating the punching end cylinder, the other operating shearing end cylinder, the shear cylinder provides the power to three shearing stations and notching station.
The system gives precision accurate power inching at all give five works stations and allows the ironworker machine to be stop at any position giving safe and accurate tool setting and working positioning. Limit switches at both ends of the machine control stroke length at all stations.
Centralized lubrication is meter by one – Shot system, being only one feature of the low maintenance requirement.

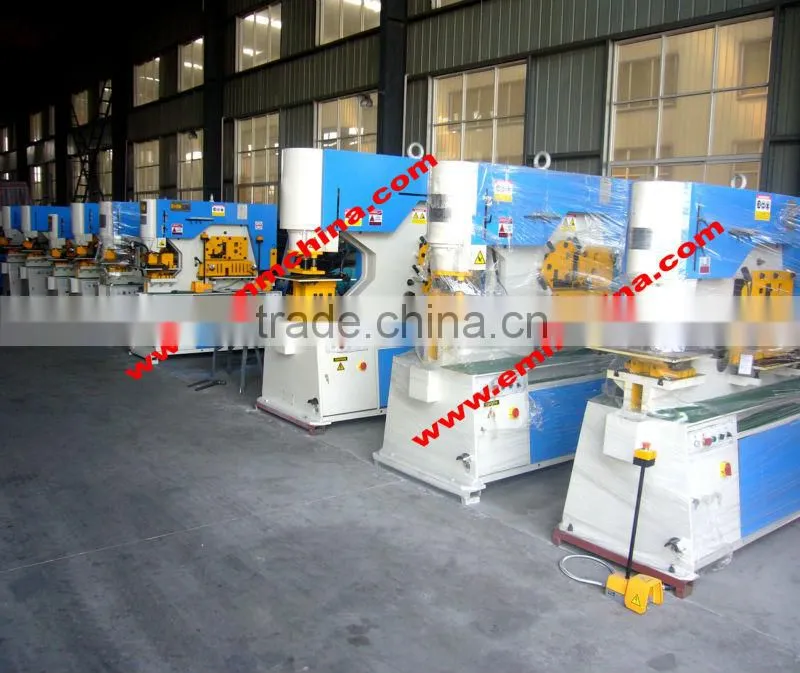

standard export packing of Q35Y-16 hydraulic portable hydraulic punching machine
Technical Specification and Capacities Q35Y-16 hydraulic portable hydraulic punching machine
pecification |
Q35Y-16 |
Q35Y-20 |
Punching station |
|
|
Punching maximum capacity |
25x16 |
30x20 |
Stroke Ram length |
80 |
80 |
Deep Throat Standard |
300 |
355 |
Punching Largest hole (Optional) |
160 |
160 |
Working height |
1030 |
1084 |
Shearing |
|
|
Flat Plate Shearing Maximum |
250x16 |
330x20 |
Flat Plate Shearing Maximum |
400x8 |
480x10 |
Blade length |
410 |
485 |
Angle Flange Trim Maximum 45° |
100x10 |
100x13 |
Working Height |
890 |
894 |
Angle Cutting Station |
|
|
90° Miter (True Interior /Exterior ) |
125x12 |
140x14 |
45° Miter (True Interior /Exterior ) |
70x10 |
70x10 |
Working Height |
1130 |
1180 |
Section Cutting Station |
|
|
Round Bars/ Square Bars Maximum Diameter |
45/40 |
50/45 |
Channel /I Beams ( Optional ) |
126x53 |
160x65 |
Tee ( Optional ) |
90x12 |
90x12 |
Notching Station |
|
|
Material thickness |
10 |
12 |
Width - Rectangle |
57 |
57 |
Depth - Rectangle |
60-90 |
60-90 |
Angle Flange – Maximum Profile |
100x10 |
100x12 |
Working Height |
900 |
900 |
Presale Service
We assist customers in well understanding the product information like features, functions and applications and so on. As for the detailed procuring information or drawings, our professionals will first conduct a careful examination and then recommend the most suitable machines or devise proper schemes for customers. We also provide free samples if necessary.
Service during the Sale
1. We are manned with professional salesmen and technicians to provide the information, technical support and the optimal solutions with high cost performance.
2. Based on the specific requirements of customers and the lead time, we will formulate a rigorous operation process. Through the close cooperation of Commodity Department, Sales Department, Technical Department and the Ocean Shipping Department, we are devoted to timely supplying customers with superior machines.
3. Generally, certain quantity of quick-wear parts will be delivered with the goods. The delivery deadline depends on the specific order, which is usually within 1 to 3 months.
After-Sale Service
1. One year warranty is provided.
2. Customers can send photos or samples for our confirmation once the parts are damaged within the one year warranty. If the parts are not damaged by misoperation, we will reply to customers within 48 hours and provide free parts for replacement. Besides, for the parts out of commission and beyond the
warranty, we only charge for the basic costs of parts.
3. We regularly follow up the service condition of products, and timely analyze and copy with the feedbacks. As for the disputes, we will figure out effective actions to reach mutual satisfaction.
1. What's the function of the Q35Y-16 hydraulic portable hydraulic punching machine ?
Re: This machine can punching ,shearing,notching, bending different kind of workpiece.
