Home > Products > Speed Dome > Speed Dome 18X Optical Zoom Full HD IP Camera

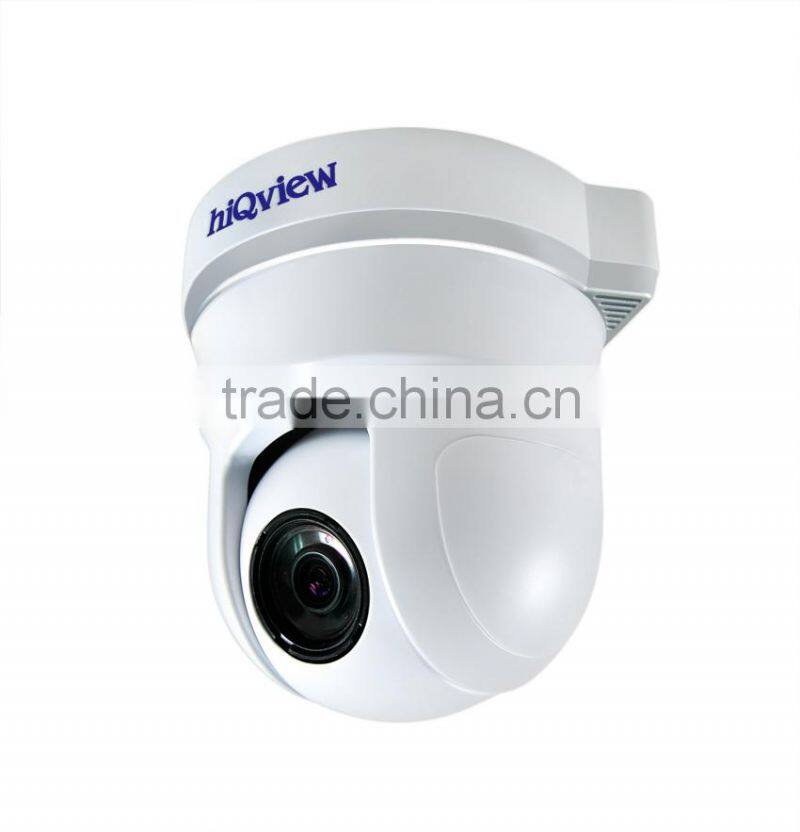

Speed Dome 18X Optical Zoom Full HD IP Camera
- 10000 Piece / Pieces per Month
- Taipei Taiwan
- T/T Credit Card
- 7 inch TFT Monitor DIGITAL Wireless Farm Cctv Systems
- 7 inch TFT Monitor DIGITAL Wireless New Backup Camera Kit with 2.4GHz digital signal
- 7 inch TFT Monitor Digital Reversing Camera System with 2.4GHz digital signal
- 7 inch TFT Monitor Wireless Back Up Systems with 2.4GHz digital signal
- Car Camera Wireless Transmitter System For Bus
- 7inch digital 2.4g wireless surveillance camera system For Bus
Product Details
Place of Origin: | Taiwan | Brand Name: | hiQview | Model Number: | HIQ-7389 |
Type: | Digital Camera | Style: | Other, Spead Dome Camera | Sensor: | Other, 2 Megapixel CMOS sensor |
Technology: | Infrared | Special Features: | Other, 360° Continuous Pan/ Tilt: 0°~90° auto flip |
Product Description
HIQ-7389 on hiQ:
/pro/detail.php?pid=353
HIQ-7389
Speed Dome 18X Optical Zoom Full HD IP Camera
FEATURES
* 1/2.8" 2M Type Exmor CMOS Sensor
* 18X Optical Zoom * 360° Continuous Pan/ Tilt: 0°~90° auto flip
* Full HD 30 fps @ 1080p real-time
* Digital Wide Dynamic Range (D-WDR)
* Digital Noise Reduction (DNR)
* Min. Scene Illumination Color: 0.05 Lux
B/W: 0.005 Lux
* -10°C ~ 50°C Temperature Range for Weather Conditions
* 4.7 ~ 84.6mm @ F1.6 ~ F2.8 Vari-Focal lens
* Mechanism IR Cut filter for day / night function
* H.264 / JPEG / MPEG-4 compression and triple-streaming
* 802.3at Power over Ethernet
* Support 2-way audio
* Support mobile phone remote monitoring
* SD card backup for easy storing and playback image / video
* Free bundled 64 CH Video Management System
SPECIFICATIONS
Camera | |
Image Sensor | 1/2.8" 2M Type Exmor CMOS Sensor |
Sensor Resolutions | 2 Megapixel |
Max. Resolutions | 1920*1080 |
Sensitivity | Color : 0.05 Lux, B / W: 0.005 Lux |
Lens Type | 18x optical zoom |
Focal Length | F = 4.7mm (WIDE) ~ 84.6mm (TELE) |
Maximum Aperture | F1.6 ~ F2.8 |
Angle of View | Approx. 62.6 degrees (WIDE end) |
Approx. 3.4 degrees (TELE end) | |
ICR | Mechanism IR Cut Filter |
Pan/Tilt Range | Pan: 360° |
Tilt: 0°~90° Auto Flip | |
Manual Control Speed | Pan: 0.45°~90°/s , Tilt: 0.35°~45°/s |
Preset(Patrol) Speed | 200°/s |
Preset Accuracy | <±0.15° |
Preset Points | 256 |
Preset Focus Mode | Auto / Manual |
Patrol | 8 groups with 24 point |
Auto Pan | Yes |
Auto Recovery | Pending Time, Action |
Cruise | Yes, 8 groups |
Home Position | Yes |
Point To Go | Yes |
Auto Electronic Shutter | Auto / Shutter Mode |
Shutter priority | Flickerless, 1/30 ~ 1/5000 |
Video / Audio | |
Vido Compression | H.264/ MJPEG/ MPEG-4 |
Video Profile | 1920*1080/ 1280*720/ 640*480/ 320*240/ 176*144 |
Frame Rate | Up to 30fps @ 1920*1080 |
Up to 30fps @ 1280*720 | |
Up to 30fps @ 640*480 | |
Up to 30fps @ 320*240 | |
Up to 30fps @ 176*144 | |
Triple Streaming | Yes |
Image Snapshot | Yes |
Full Screen Monitoring | Yes |
Image Setting | Auto Electronic Shutter, Day & Night Mode, Day & Night Level |
Day & Night Delay, DNR Mode, D-WDR Mode, Video Orientation, | |
White Balance, Sharpness, Exposure Compensation, Defog, OSD, Contrast, Saturation | |
Day & Night Mode | Auto / Color / B/W / Time Mode with auto ICR |
Day & Night Level | 1 ~ 5 |
Day & Night Delay | 4 ~ 60 sec |
DNR Mode | Off / Low / Middle / High |
WDR Mode | Off / Low / Middle / High |
Video Orientation | Off / Flip / Mirror / Rotate |
White Balance | Auto / Indoor / Outdoor / Fine shade 7500K / Cloudy weather 6000K / Fluorescent light 4200K / Halogen light 3200K / Electric light bulb 2900K |
Sharpness | -4 ~ 4 |
Exposure Compensation | -6 ~ 6 |
Defog | Off/ On |
OSD | Off/ On |
Contrast | -4 ~ 4 |
Saturation | -4 ~ 4 |
Video Bitrates Adjust | CBR, VBR |
Audio Compression | G.711(64kbps) and G.726(32kbps/24kbps) audio compression |
Audio Support | 2-way, Input : 3.5 mm phone jack / Output : 3.5 mm phone jack |
SD Card | |
RecordingTrigger | Motion Detection, IP check, Network break down, Schedule, DI |
Video Format | AVI, JPEG |
Video Playback | Yes |
Delete Files | Yes |
Software | |
Search & Installation | IP Installer |
Bundled NVR Program | Free Bundle 64 Channel Recording Software |
Firmware Upgrade | HTTP mode, can be upgraded remotely |
Network & Security | |
Ethernet | 10 / 100 M Base-T |
Support Protocol | IPv6, IPv4, HTTP, HTTPS, SNMP, QoS/DSCP, Access list, IEEE 802.1X, RTSP, TCP/ IP, |
UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP, SAMBA | |
Simultaneous Connection | Up to 10 |
Security | Password protection, IP address filtering, HTTPS encrypted data transmission, |
802.1X port-based authentication for network protection, QoS/DSCP | |
Power over Ethernet | DC12 / PoE802.3at |
System Integration | |
Triggered Action | Mail, FTP, Save to SD card, DO, SAMBA |
Pre / Post Alarm | Yes, configurable |
Motion Detection | On/Off |
General | |
CPU | Multimedia SoC |
RAM | 256MB |
Flash | 16MB |
I / O | 2 DI / 1 DO |
Video Out | N/A |
Power Consumption | 12V DC Power consumption Max: 9.96W |
PoE Power consumption Max: 15.74W | |
Water Resistance | N/A |
Operation Temperature | -10℃ ~ 50℃(14°F ~ 122°F) |
Dimension | 149(W)x161.3(H)x150(O) |
Weight | 1400g |
View System Requirements | |
OS | Windows 7, 2000, XP, 2003 |
Browser | Microsoft IE 6.0 or above, Chrome, Safari, Firefox |
Hardware Suggested | Intel Dual Core 2.53G, RAM: 1024MB, Graphic card: 128MB |
Hardware Minimum | Intel-C 2.8G, RAM: 512MB, Graphic card: 64MB |
Product Introduction of HIQ-7389
hiQview HIQ-7389 is a indoor Speed Dome Camera, which is equipped with 1/2.8" 2M Type Exmor CMOS Sensor and has an all-IP architecture. The built-in web server open platform provides remote users with the real time video through Internet browser.
l High Speed 18X Optical Zoom
HIQ-7389 uses 4.7 ~ 84.6mm @ F1.6 ~ F2.8, 18X optical zoom lens. The zooming function of HIQ-7389 is high speed 18X optical, which means the lens could actually lengthens and shortens when zooming in very high speed. By using an actual lens adjustment, the 18X optical zoom function could support HIQ-7389 to have more real and clearer images in high resolutions.
l 360° Continuous Pan and 90° Tilt
The design of HIQ-7389 is beautiful as well as practical. HIQ-7389 can support 360° Continuous Pan and 90° Tilt remotely. Thus, users can move the camera lens swiftly and elastically to the monitoring areas. Furthermore, HIQ-7389 could pre-program different routine patterns for the pan/tilt speed dome IP camera to carry out and activate those patterns to a required schedule.
l 2-Megapixel high resolution
The images of HIQ-7389 can be compressed into three formats: H.264 / JPEG / MPEG-4. Multiple resolutions are available: 1920*1080 / 1280*720 / 640*480 / 320*240 / 176*144. Under Full HD resolution, HIQ-7389 can create supreme quality images: 30fps@1080p Real-time. Users can choose the suitable streaming format to meet different environmental conditions.
l Min. Scene Illumination Color
HIQ-7389 is a very sensitive camera with low lux support. HIQ-7389 could support min. scene illumination Color with 0.05 Lux and min. scene illumination Black/White with 0.005 Lux. It means that no matter day& night, when the environment light source is over 0.05 Lux, HIQ-7389 could keep color images all the time. Furthermore, even the environment light source is 0.005 Lux, HIQ-7389 still could has very clear Black/White images in viewing.
l Clear images in bad light condition --- Wide Dynamic Range (WDR)
The Wide Dynamic Range (WDR) feature of HIQ-7389 stands out in monitoring strong backlight or dim light environment. For example, if the camera faces the sun, and a man is standing in front of the camera, usually, because of the strong backlight, the man’s face would be too dark to identify. The WDR technology would use different exposures for different objects, making the light contrast much lower, and thus reveal the clear features of the man’s face.
l The power of Digital Noise Reduction (DNR)
Image noise can be caused by many factors, such as power interference, heat, and dim light source, resulting in ineffective surveillance work. HIQ-7389 removes image noises by applying DNR technology. It not only makes clearer images, but also reduces video file size.
l Network Deployment
The network deployment of HIQ-7389 is very simple. It provides the installation tool for searching for devices that are already connected to the Internet. This feature alleviates the inconvenience of complex network settings.
l Power Over Ethernet (PoE) cuts cost sharply
PoE technology enables power and internet connection to be provided by the same cable. Therefore, not only that power outlets are no longer needed, but more importantly, the space to place the IP surveillance system is saved, and the cost is reduced sharply.
l Free Bundled with VMS ( Video Management System) “hiQview Vision”
HIQ-7389 is bundled with powerful VMS software, which supplies users with omni-bearing video management and surveillance. “hiQview Vision” is free bundled with our IP cameras, and it could manage up to 64 IP cameras.
l Indoor Applications
This camera is made with day/night dual-purpose, and is suitable for monitoring indoor environments such as retail stores, shipping mall, factories, hotels, hospitals, etc.
