HIQ-6381

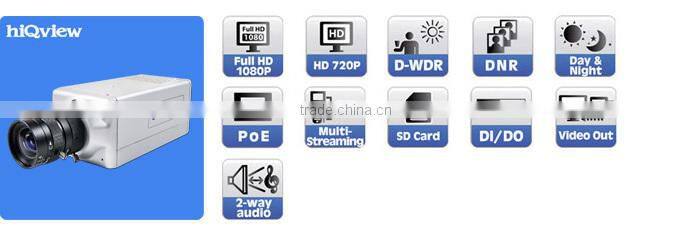

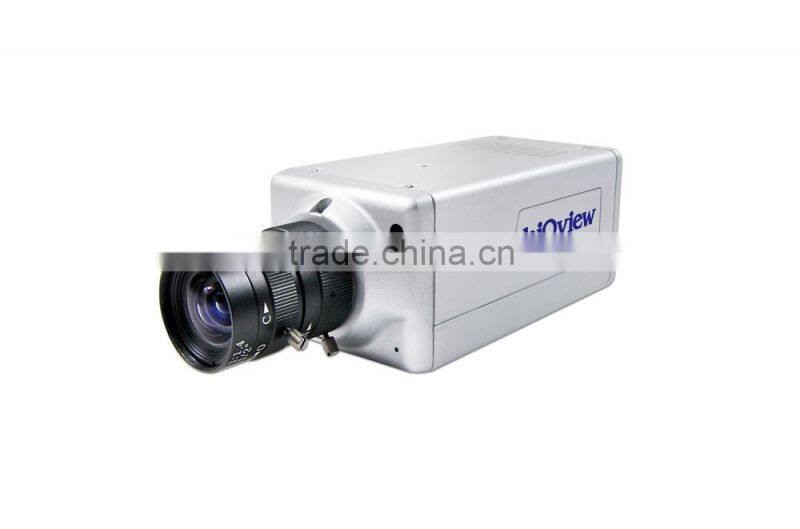

Full HD Box IP Camera
FEATURES
* 1/2.7” Megapixel CMOS Sensor
* Max resolution: 1920 X 1080 (2-Megapixel)
* Full HD 30 fps @ 1080p real-time
* Digital Wide Dynamic Range (D-WDR)
* 3D and 2D Digital Noise Reduction (DNR)
* Day & Night Switch Time Control Manually
* Min. Scene Illumination Color: 0.05 Lux (AGC ON)
B/W: 0.01 Lux (AGC ON)
* Mechanism IR Cut filter for day & night
* H.264/ M-JPEG Compression
* Power over Ethernet
* Triple Streaming
* Support video out
* 2-way audio
* Micro SD card backup
* Support mobile phone remote monitoring
* Free bundled 64 CH recording software
Specifications
| Camera | |
| Image Sensor | 1/2.7” Megapixel CMOS Sensor |
| Max. Resolutions | 1920*1080 |
| Sensitivity | Color : 0.05 Lux (AGC ON), B / W: 0.01 Lux (AGC ON) |
| Lens Type | Changeble CS mount Lens, not including Lens |
| ICR | Mechanism IR Cut Filter |
| DC IRIS | Yes |
| Digital Zoom | 10x |
| Video / Audio | |
| Compression Format | H.264/ M-JPEG |
| Video Profile | 1920*1080/ 1280*720/ 640*480/ 320*240/ 176*144 |
| Frame Rate | Up to 30fps @ 1920*1080 |
| Up to 30fps @ 1280*720 | |
| Up to 30fps @ 640*480 | |
| Up to 30fps @ 320*240 | |
| Up to 30fps @ 176*144 | |
| Triple Streaming | Yes |
| Image Snapshot | Yes |
| Full Screen Monitoring | Yes |
| Image Adjustment | Brightness, Contrast, Hue, Saturation, Sharpness, AGC, Shutter Time, |
| D-WDR, Anti Fog, Lens Distortion Correction, Flip, Mirror, | |
| Red Gain and Blue Gain, Day&Night Adjustable, Denoise | |
| Video Bitrates Adjust | CBR, VBR |
| Audio Support | G.711(64K) and G.726(32K,24K) audio compression |
| Input : audio in or Mic built-in(auto switch) | |
| Output: 3.5mm phone jack, Support 2-way | |
| SD Card | |
| RecordingTrigger | Motion Detection, IP check, Network break down, Schedule, DI |
| Format | AVI, JPEG |
| Video Playback | Yes |
| Delete Files | Yes |
| Software | |
| Search & Installation | IP Finder |
| Bundled NVR Program | Free Bundle 64 Channel Recording Software |
| Firmware Upgrade | HTTP mode, can be upgraded remotely |
| Network | |
| Ethernet | 10 / 100 M Base-T |
| Support Protocol | IPv6, IPv4, HTTP, HTTPS, SNMP, QoS/DSCP, Access list, IEEE 802.1X, RTSP, TCP/ IP, |
| UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP, SAMBA, Bonjour | |
| Simultaneous Connection | Up to 10 |
| Power over Ethernet | Yes |
| Security | Password protection, IP address filtering, HTTPS encrypted data transmission, |
| 802.1X port-based authentication for network protection, QoS/DSCP | |
| System Integration | |
| Triggered Action | Mail, FTP, D0, Save to SD card, Samba |
| Pre / Post Alarm | Yes, configurable |
| Privacy Mask | Yes, 3 different areas |
| Motion Detection | Yes, 3 different areas |
| General | |
| CPU | Multimedia SoC |
| RAM | 256MB |
| Flash | 16MB |
| I / O | 1 in / 1 out |
| RS485 | Yes |
| Video Out | Yes |
| Power Consumption | DC 12V Max:2.88W |
| AC 24V Max:3.6W | |
| PoE Max:3.84W | |
| Operation Temperature | 0℃ to 45℃ (32℉ to 113℉) |
| Dimension | 65mm (W) x 58mm (H) x 132mm (L) |
| Weight | 450g |
| View System Requirements | |
| OS | Windows 7, 2000, XP, 2003 |
| Browser | Microsoft IE 6.0 or above, Chrome, Safari, Firefox |
| Hardware Suggested | Intel Dual Core 2.53G,RAM: 1024MB, Graphic card: 128MB |
Product Intoduction of HIQ-6381
hiQview HIQ-6381 is a box camera, which is equipped with 1/2.7” CMOS sensor and has an all-IP architecture. The built-in web server open platform provides remote users with the real time video through Internet browser.
l 2-Megapixel high resolution
The images of HIQ-6381 can be compressed into two formats: H.264 and MJPEG. Multiple resolutions are available: 1920*1080 / 1280*720 / 640*480 / 320*240 / 176*144. Under Full HD resolution, HIQ-6381 can create supreme quality images: 30fps@1080p Real-time. Users can choose the suitable streaming format to meet different environmental conditions.
l Clear images in bad light condition
The Wide Dynamic Range (WDR) feature of HIQ-6381 stands out in monitoring strong backlight or dim light environment. For example, if the camera faces the sun, and a man is standing in front of the camera, usually, because of the strong backlight, the man’s face would be too dark to identify. The WDR technology would use different exposures for different objects, making the light contrast much lower, and thus reveal the clear features of the man’s face.
l The power of Digital Noise Reduction (DNR)
Image noise can be caused by many factors, such as power interference, heat, and dim light source, resulting in ineffective surveillance work. HIQ-6381 removes image noises by applying DNR technology. It not only makes clearer images, but also reduces video file size.
l Mechanism IR Cut filter for day & night
The built-in mechanism IR cut filter make the images clear under any light source, in day or night time.
l Network Deployment
The network deployment of HIQ-6381 is very simple. It provides the installation tool for searching for devices that are already connected to the Internet. This feature alleviates the inconvenience of complex network settings.
l Power Over Ethernet (PoE) cuts cost sharply
PoE technology enables power and internet connection to be provided by the same cable. Therefore, not only that power outlets are no longer needed, but more importantly, the space to place the IP surveillance system is saved, and the cost is reduced sharply.
l Free Bundled with VMS ( Video Management System) “hiQview Vision”
HIQ-6381 is bundled with powerful VMS software, which supplies users with omni-bearing video management and surveillance. “hiQview Vision” is free bundled with our IP cameras, and it could manage up to 64 IP cameras.
l Applications
This camera is made with day/night dual-purpose, and is suitable for monitoring open environments and important entries, such as parking lots, bank lobbies, retail stores, and train stations.
