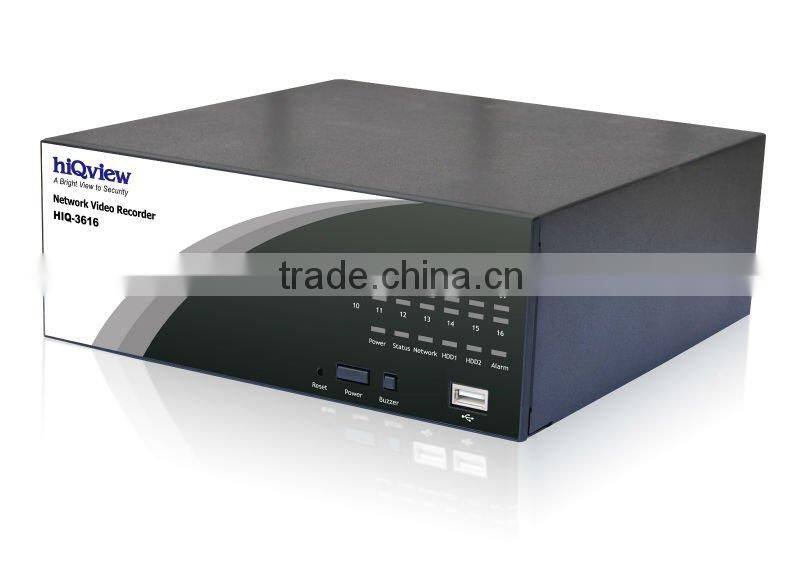

5 Megapixel / Full HD H.264 16 Channel Standalone IP NVR
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
hiQview
Model Number:
HIQ-3616
Payment & Shipping
Payment Methods:
Port of Shipment:
Taipei Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
8 Channel 5 Megapixel / Full HD H.264 Standalone Full HD NVRNegotiableMOQ: 1 Piece -
HIQ-3416 Local Display 16 Channel PoE Network Video RecorderNegotiableMOQ: 1 Piece
-
HIQ-3309 Local Display 9 Channel Network Video RecorderNegotiableMOQ: 1 Piece
-
HIQ-3304 Local Display 4 Channel Network Video RecorderNegotiableMOQ: 1 Piece
-
HIQ-3936 H.265 PoE 36 Channel Onvif NVR With Local DisplayNegotiableMOQ: 1 Piece
Place of Origin
Taiwan, China
Brand Name
hiQview
Model Number
HIQ-3616
HIQ-3616 on hiQ:
/pro/detail.php?pid=306
HIQ-3616
5 Megapixel / Full HD H.264 16 Channel Standalone IP NVR
FEATURES:
* Manage up to 16 IP cameras
* Pure web-based administration
* Support resolution: 5MP/3MP/2MP/Full HD/MegaPixel
* Support up to 240fps @ 2MP (H.264) or 480fps @ 1.3MP (H.264)
* Support max. storage 6TB (3TB X 2)
* High quality Live/Playback video
* 4 channels synchronous playback
* Export Playback videos to AVI
* E-map and Google Map event alert
* Two-way audio
* Smart camera search
* Mobile devices remote monitoring
* Built-in 8 x DI, 4 x DO for event management
* Backup recorded video to USB HDD
* Support USB UPS
* Bundled with FREE CMS
* Support resolution: 5MP/3MP/2MP/Full HD/MegaPixel
* Support up to 240fps @ 2MP (H.264) or 480fps @ 1.3MP (H.264)
* Support max. storage 6TB (3TB X 2)
* High quality Live/Playback video
* 4 channels synchronous playback
* Export Playback videos to AVI
* E-map and Google Map event alert
* Two-way audio
* Smart camera search
* Mobile devices remote monitoring
* Built-in 8 x DI, 4 x DO for event management
* Backup recorded video to USB HDD
* Support USB UPS
* Bundled with FREE CMS
SPECIFICATIONS
| Camera | |
| Add Camera by Manual or Smart Camera Search | |
| Max Channels | 16 |
| Video / Audio | |
| Compression Format | H.264, JPEG and MPEG-4 |
| Resolution | 5 MP/3MP/2MP/Full HD/Megapixel/HD/D1/CIF/QCIF |
| Max. Frame Rate | 480 fps @ 1.3MP (H.264) or 240 fps @ 2MP (H.264) |
| Audio Support | 2-way (G.711 / G.726) |
| Live View | |
| Display Mode | Live view / Playback / Full Screen |
| Split Screen | 1 / 4 / 16, 9 /13(use my favorite mode) |
| Full Screen | 1 / 4 / 16, 9 /13(use my favorite mode) |
| PTZ Support | Virtual PTZ Panel / Auto Pan / Prest Point / Preset Sequence |
| Digital PTZ | |
| Sequence Mode | Sequence All / Manually Selected Cameras in 1/4 split view with timer configurable |
| Snapshot | 3 continuous snapshots in JPEG format |
| E-Map | Motion Detected Event Display on E-Map / Google Map |
| Mobile Device | Live JPEG with PT control through iPhone/Blackberry/Andriod phones |
| built-in browser | |
| Playback | |
| Split Screen | 1 / 4 |
| Search Method | Time / Date. Event |
| Playback Controls | Play / Pause / Stop / Forward / Reverse / Speed Adjust / Frame by Frame |
| Export AVI | Export playback videos to local computer AVI format |
| Recording | |
| Recording Mode | Manual / Continuous / Scheduling / Event |
| Scheduling Type | Manual Select / Profile-base / Weekend Mode |
| Recording Throughput | 80 Mbps |
| Network | |
| Protocols | HTTP/TCP/IP/UDP/SMTP/FTP/DHCP/DDNS/DNS/NTP/UPnP/ARP/NTP/ICMP |
| User Management | |
| Management | User / Group |
| Number of Groups | 7 ( Administrator/Guest/User define x 5 ) |
| Privileges | Live View / Playback / System Configuration / Camera Configuration / Recording Configuration |
| Event Configuration / Maintenance | |
| Triggers and Events | |
| Event | -System Event: System Start , System Settings Modified, Camera Settings Modified, |
| Start Recycle, Disk Full | |
| -Camera Events: Motion / Sensor Detection | |
| Event Actions | E-Mail / FTP / Buzzer / Record / Move to particular PTZ preset point / DO |
| Event Recording | Rre / Post Event Settings |
| Logs | |
| Log Types | Alert / Event / User Access |
| Power and Storage | |
| UPS | Support External UPS System |
| Storage | 2 x 3.5" SATA I / II (Hard disk drive not included), Max. Capacity 3TB per disk |
| Language | |
| English/ Traditional Chinese / Simple Chinese / Japanese / Spanish / Italain / German / Danish / Czech / | |
| Polish / French / Russian / Slovensky / Hungarian / Portuguese | |
| General | |
| CPU and Menory | ARM9 1.6Ghz / 512MB DDR3 RAM / 16 MB ROM |
| Ethernet | 10 BaseT / 100 Base-T / 1000 Base-T |
| LED | Cameras / Power / Status / Network / HDD / Alarm |
| Buttons | Reset / Power / Buzzer Stop |
| Connectors | USB x 1, RS485, D1/DO Connectors, RS232 |
| Power | 19V DC/90W |
| Dimensions | 82 x 220 x 215 mm (H x W X D) |
| Weight | 10lbs / 4.5Kg |
| Temperature | Operating: 5°C ~ 45°C / 41°F ~ 113°F |
| Storage: -40°C ~ 70°C / -14°F ~ 158°F | |
| Humidity | 5% ~ 90%(non condensing) |
| Safety | FCC Class A / CE |
| View System Requirements | |
| OS | Windows 7, 2000, XP, 2003, |
| Browser | Microsoft IE 7.0 or above |
| Hardware Minimum | Intel Dual Core 2 Duo @ 2.4 Ghz or higher RAM: 1024MB or above |
| Free Central Management Software | |
| -Central Management of up to 16 NVRs | |
| -Support up to 256 channels | |
| -Built-in intelligent video analytics | |
| Object loss detection/Tripwire/Threat detection/Smart motion detection/Image enhancement | |
| -Smart device search | |
| -Support H.264 | |
| -Multi-screen Manage | |
| -Support two way audio | |
| -Mouse-over-video / Digital PTZ Control | |
